Multi Function Switch Components & Connector End Views
Multi Function Switch Components & Connector End Views

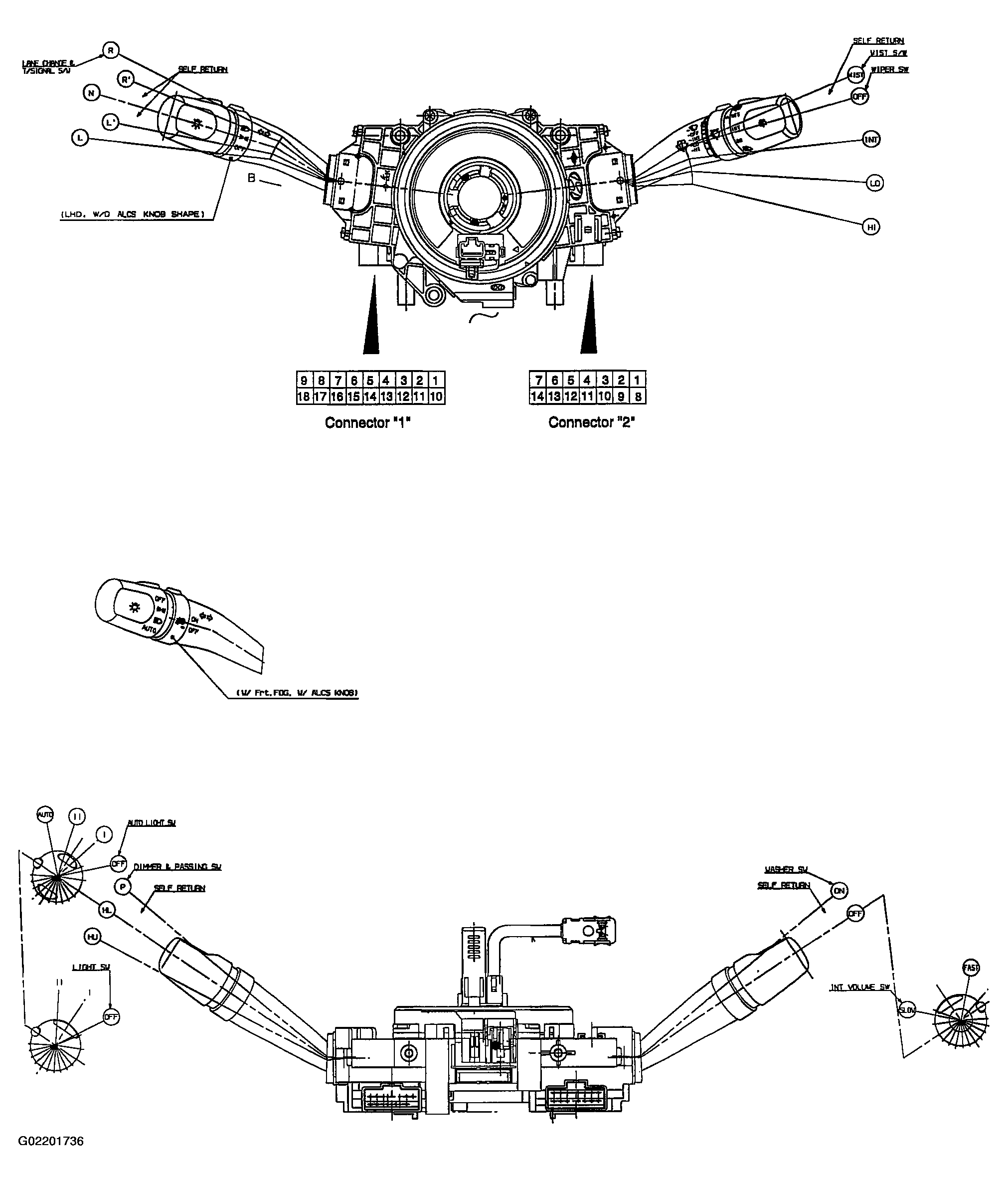

Fig 1: Multi Function Switch Components & Connector End Views
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
