Home › Kia › 2004 › Sorento EX, 4WD, Part Time › Repair and Diagnosis › Engine Mechanical › Auxiliary Emission Control Systems › Crankcase Emission Control System › Components

Crankcase Emission Control System: Components

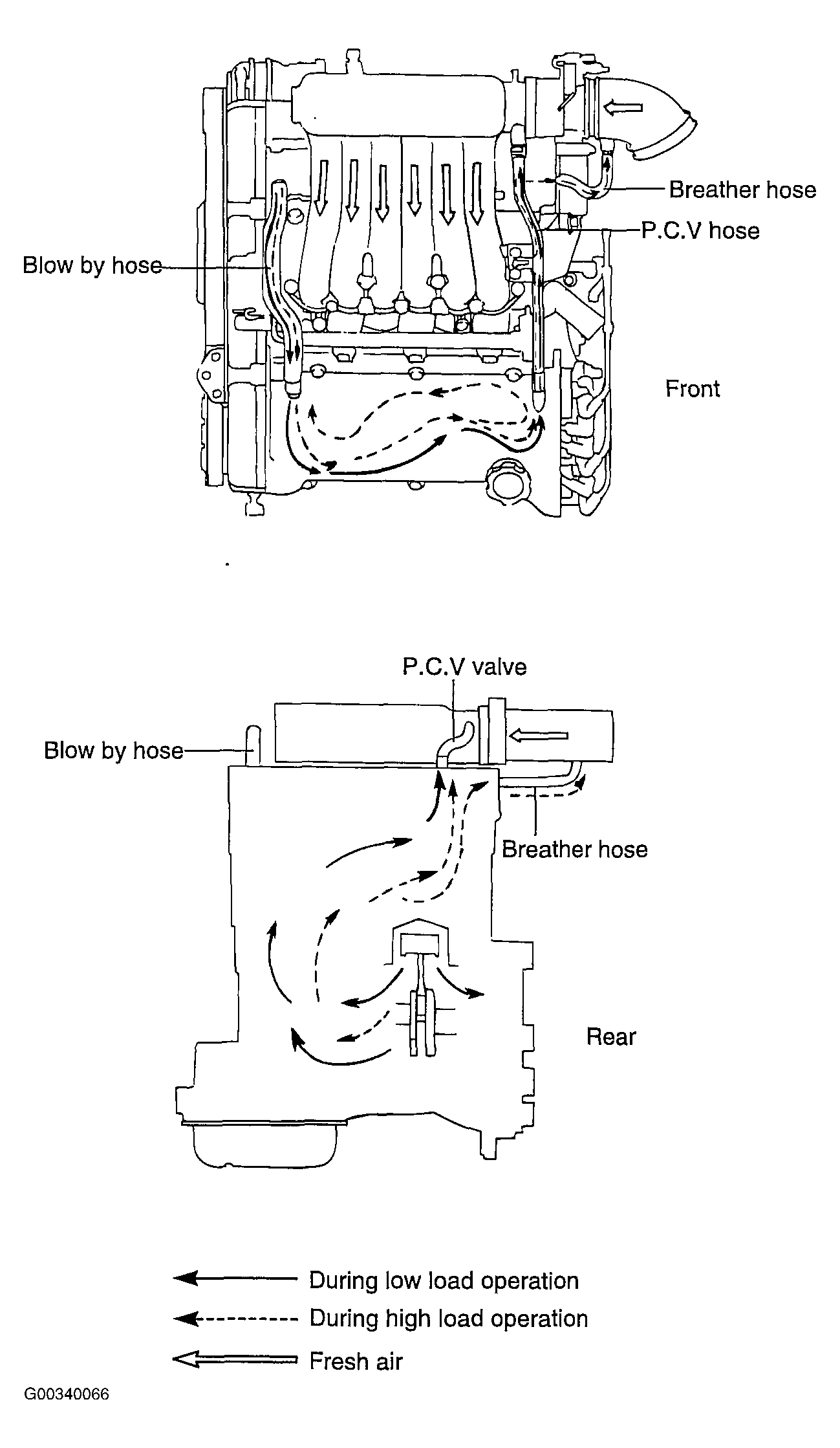

Fig 1: Identifying Crankcase Emission Control System Components & Flow Paths
G00340066Courtesy of KIA MOTORS AMERICA, INC.
