Auxiliary Emission Control Systems: General: Troubleshooting

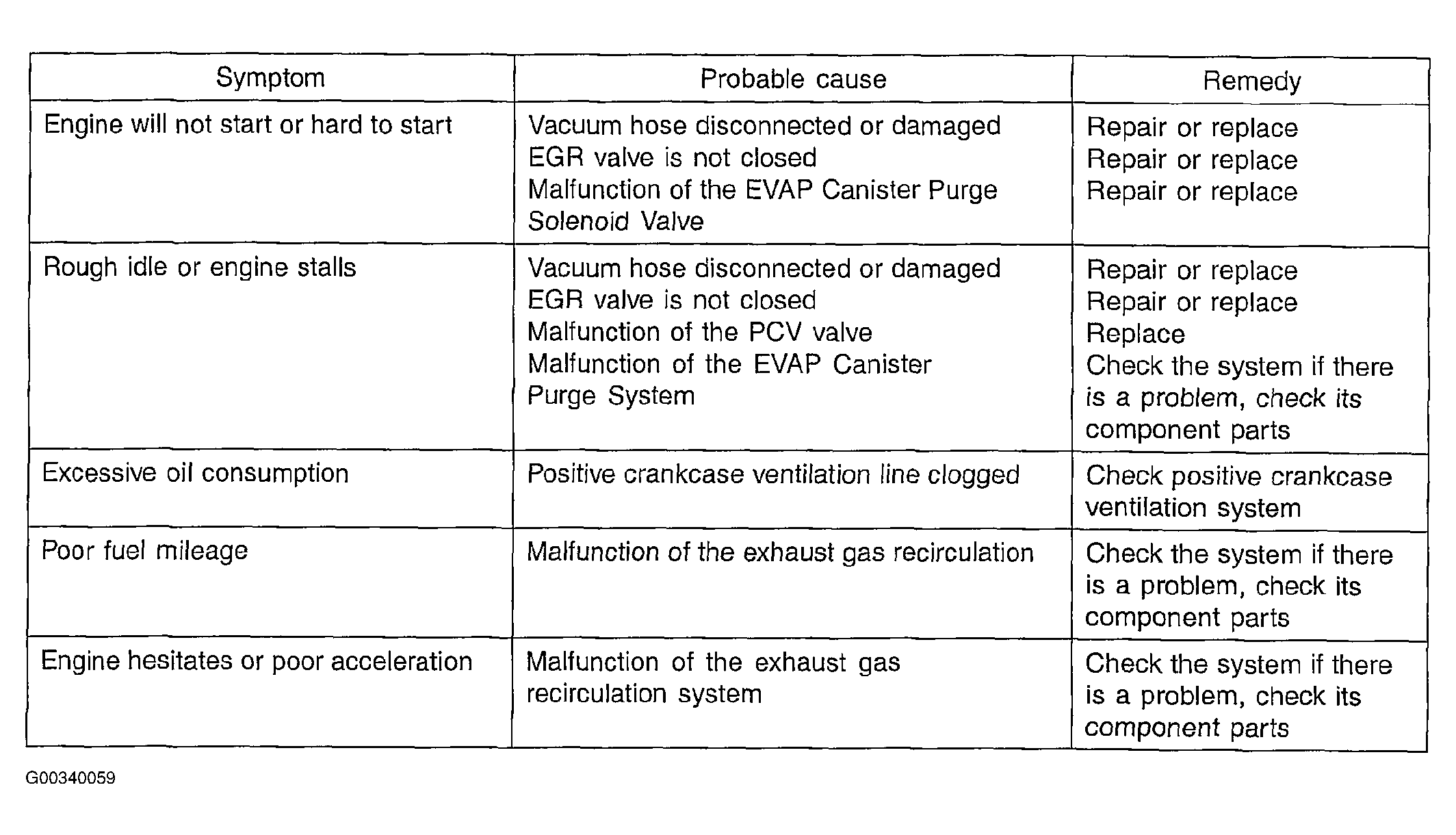

Fig 1: Emissions System Troubleshooting Table
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
