Manifold Absolute Pressure (Map) Sensor
›
Sensor Checking
›
Using Hi-Scan (Pro)
Using Hi-Scan (Pro)

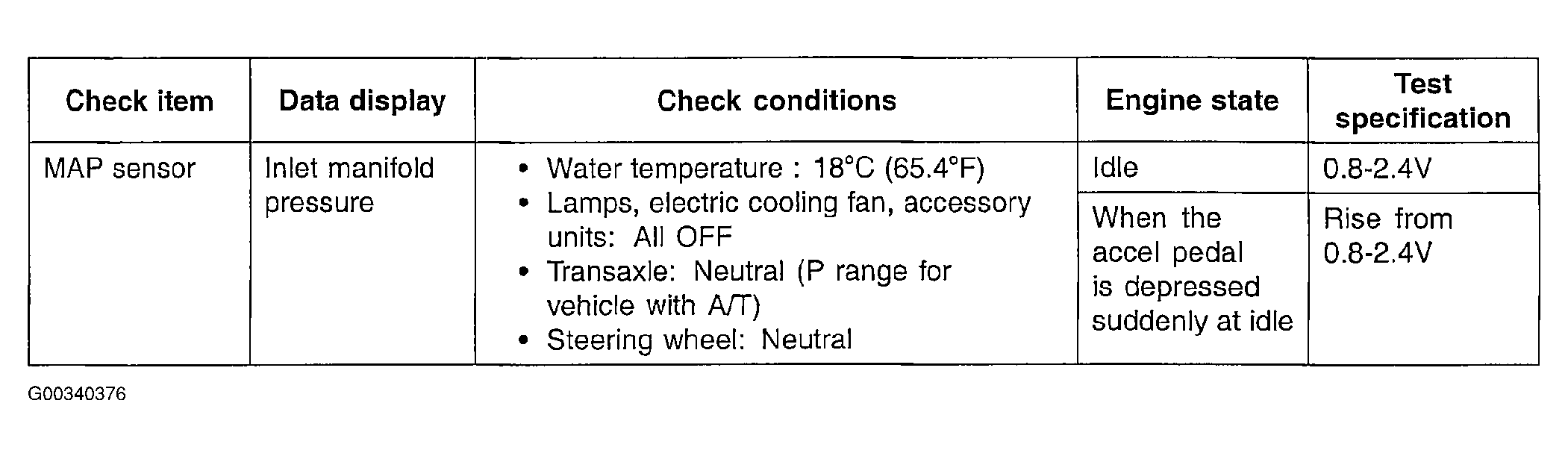

Fig 1: Identifying MAP Sensor Hi-Scan (Pro) Test Specification Table
Courtesy of KIA MOTORS AMERICA, INC.
