Actuator Test Reference Table

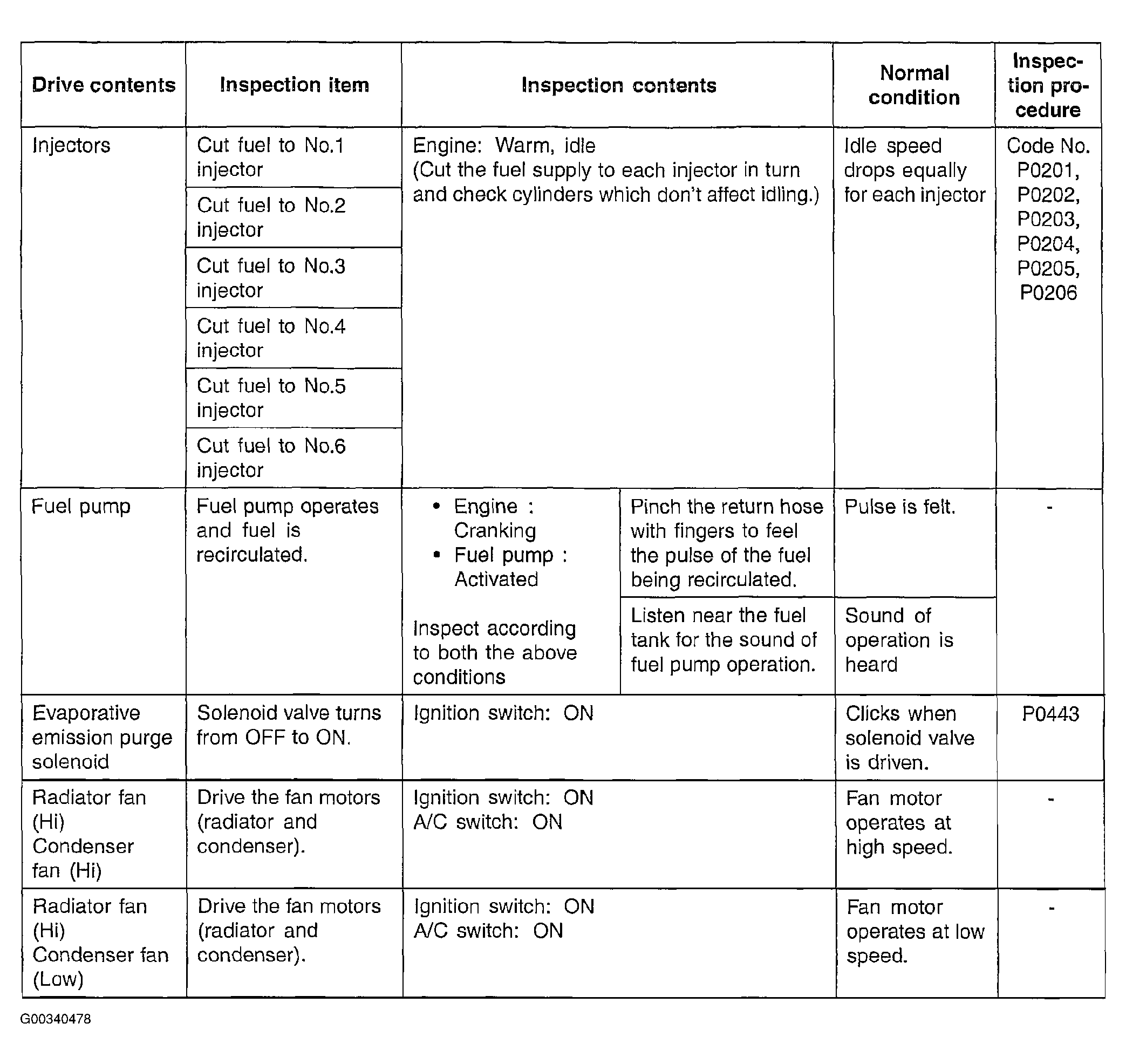

Fig 1: Identifying Actuator Test Reference Table
G00340478Courtesy of KIA MOTORS AMERICA, INC.
