Diagnostic Troubleshooting Flow
Diagnostic Troubleshooting Flow

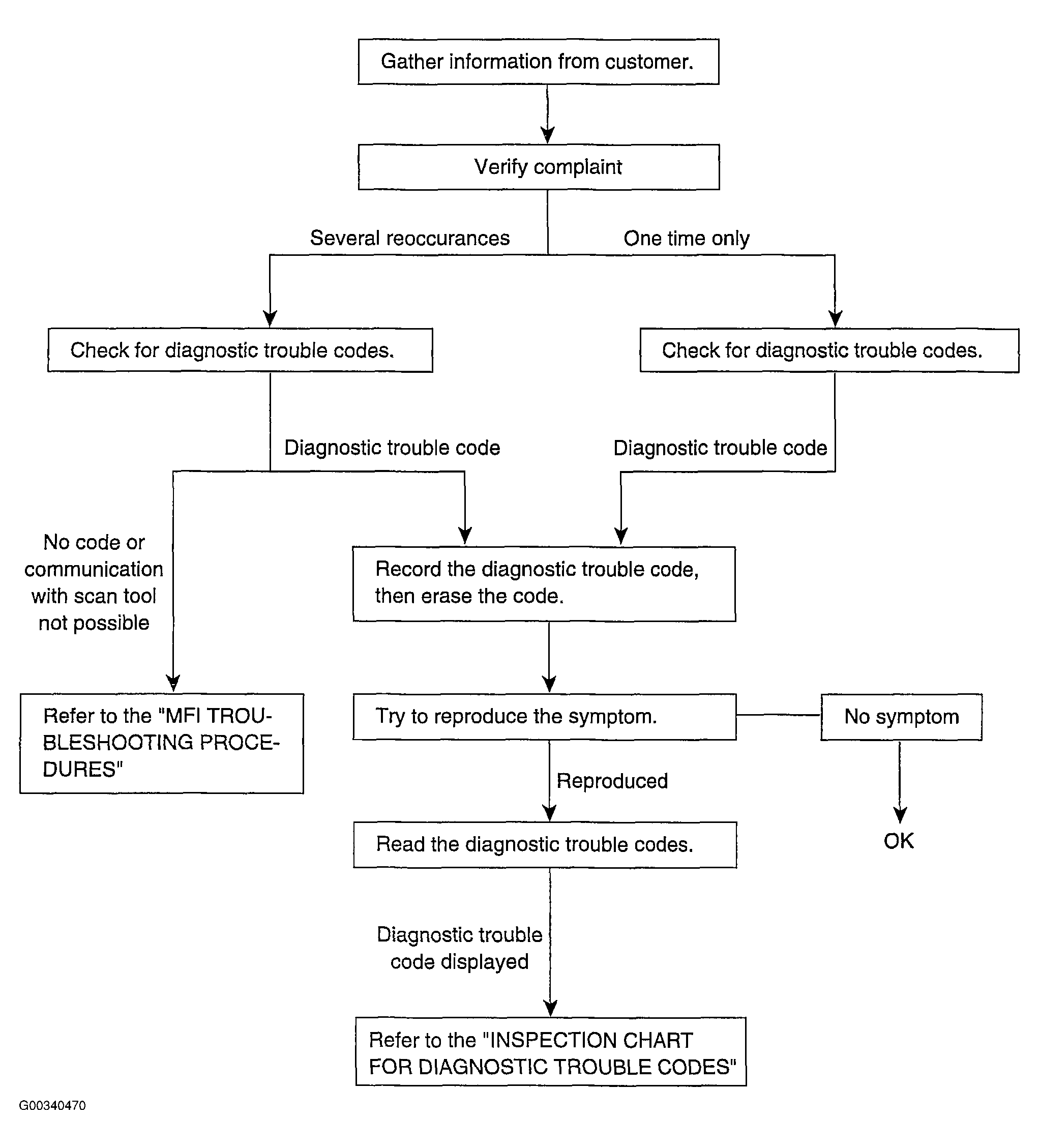

Fig 1: Identifying Diagnostic Troubleshooting Flow Chart
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
