Test 4: Difficult To Start (Engine Cranks)

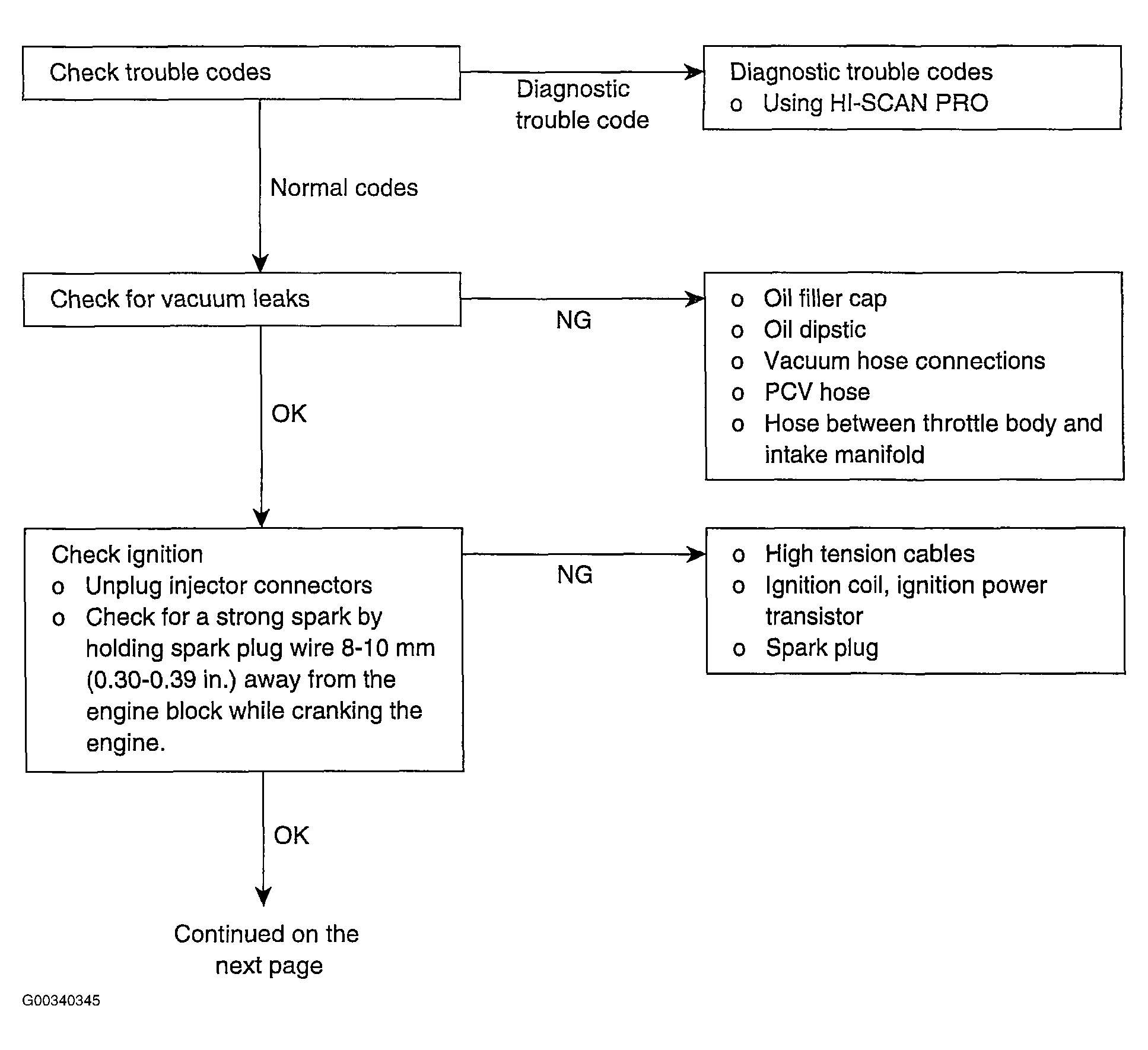

Fig 1: Test 4: Diagnostic Flow Chart (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

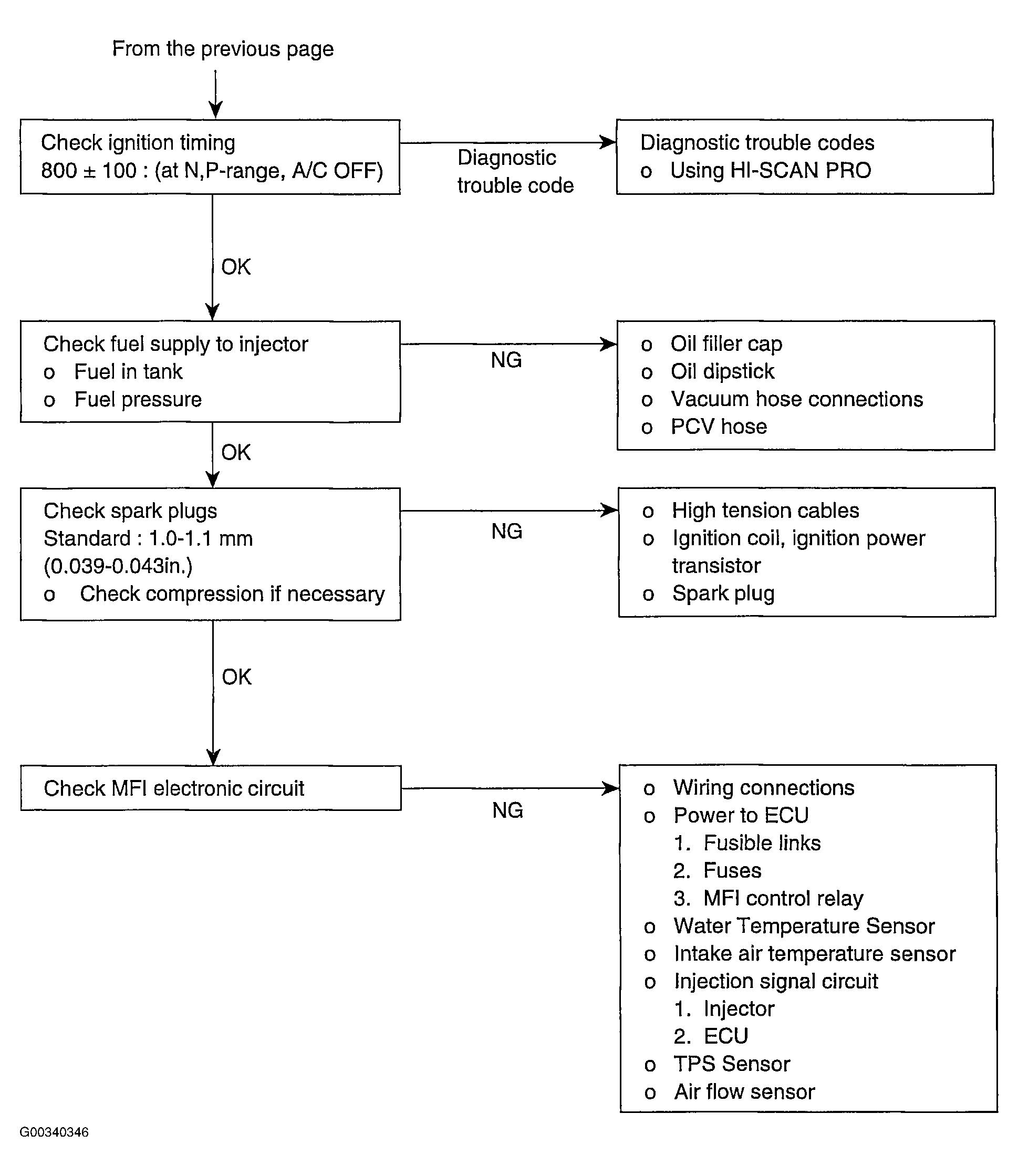

Fig 2: Test 4: Diagnostic Flow Chart (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
