Troubleshooting Procedures [Map Sensor]
Troubleshooting Procedures [Map Sensor]

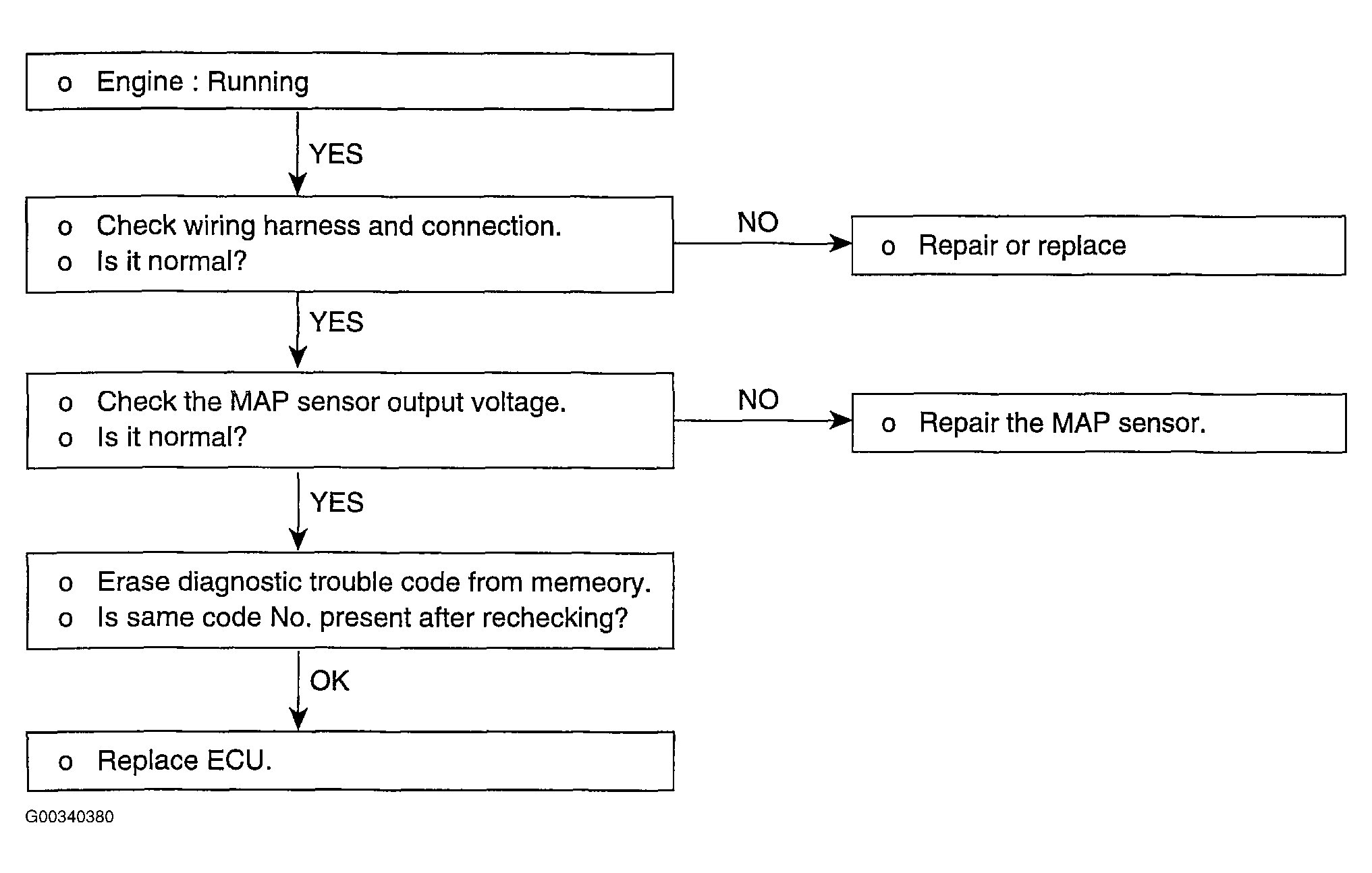

Fig 1: Identifying MAP Sensor Troubleshooting - Diagnostic Flow Chart
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
