Notes
Removal And Installation: Notes

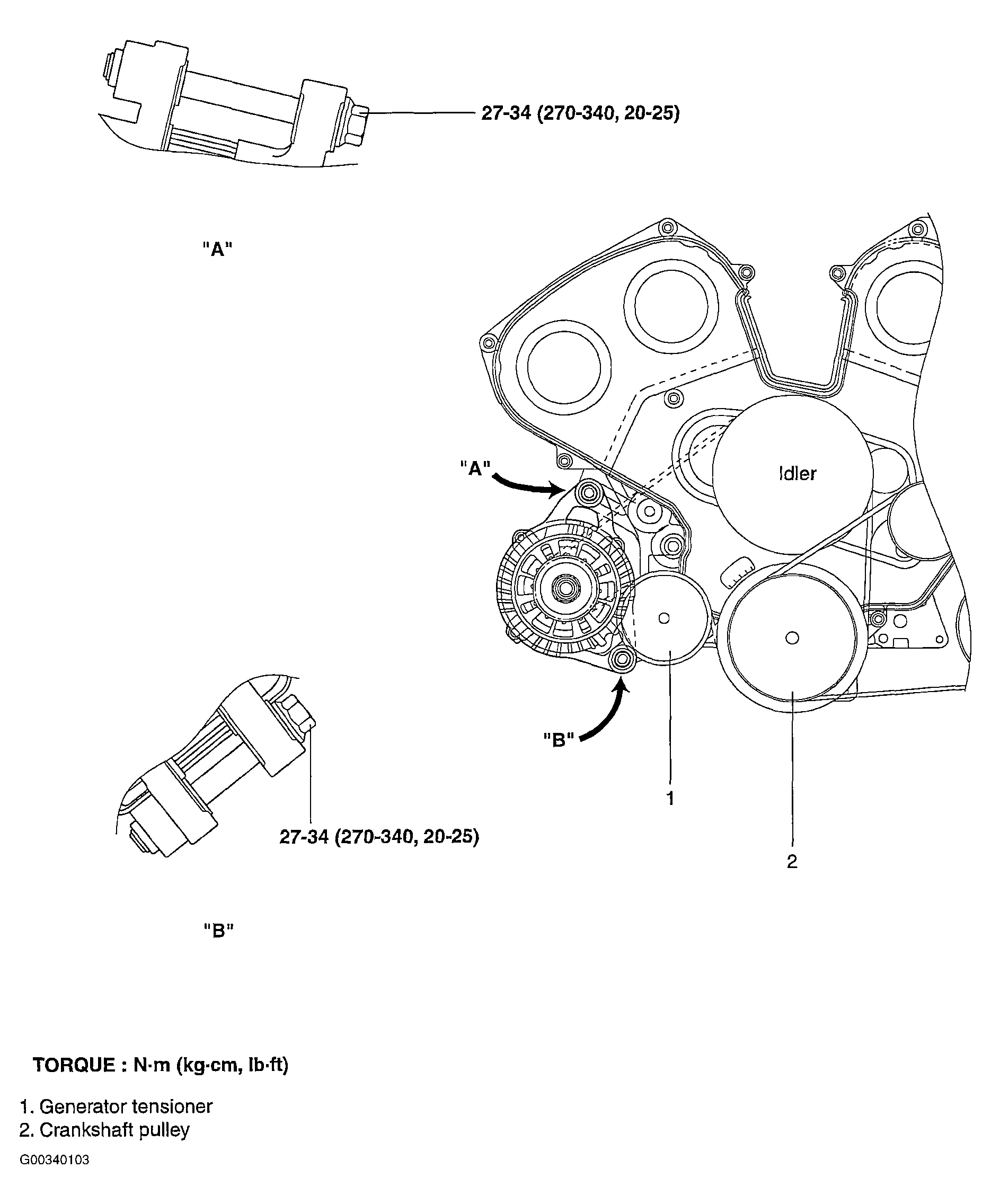

Fig 1: Illustrating Generator Removal And Installation
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
