Wiper/Washer Systems: Components

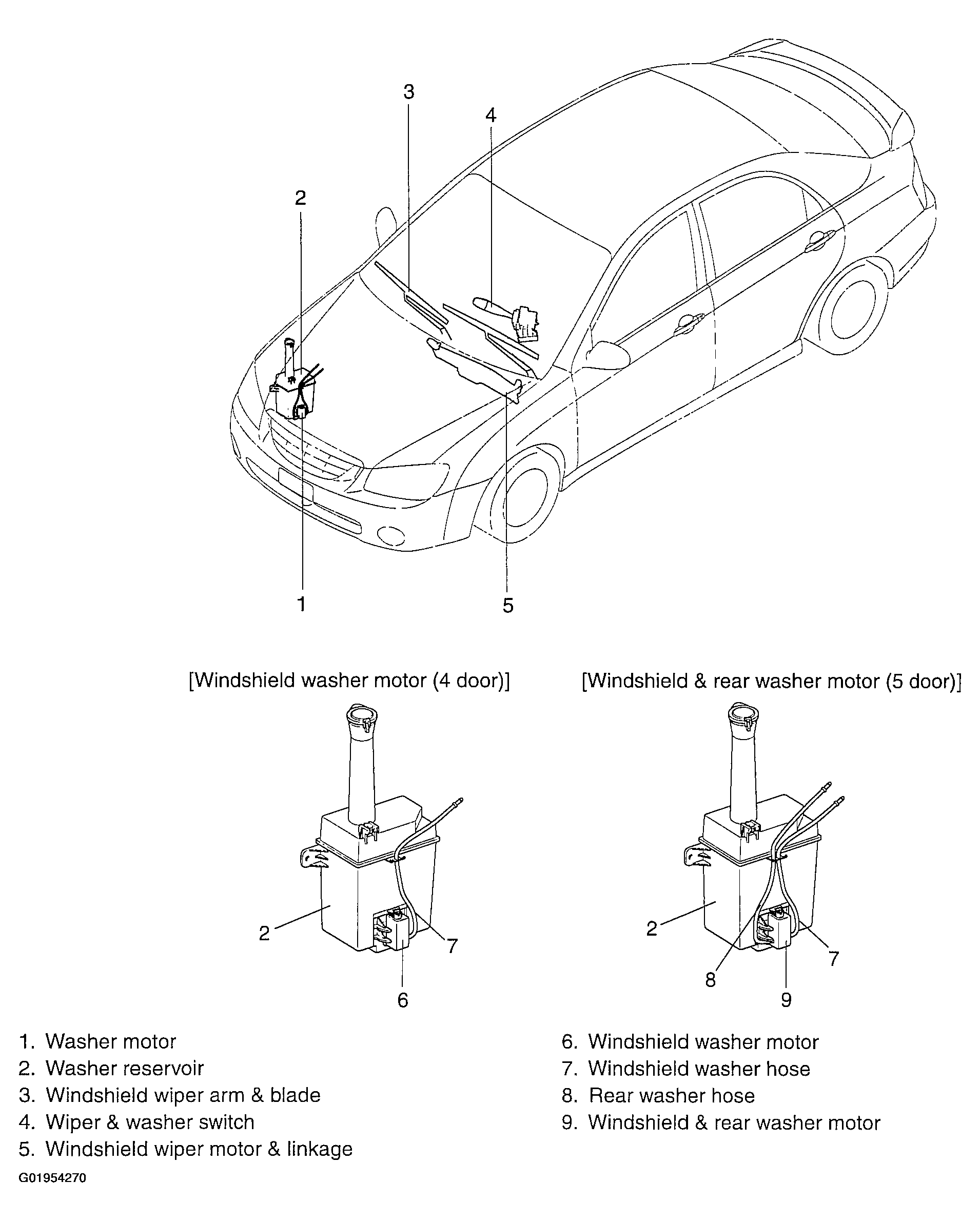

Fig 1: Illustrating Windshield Wiper/Washer Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
