Front Wiper Motor: Components

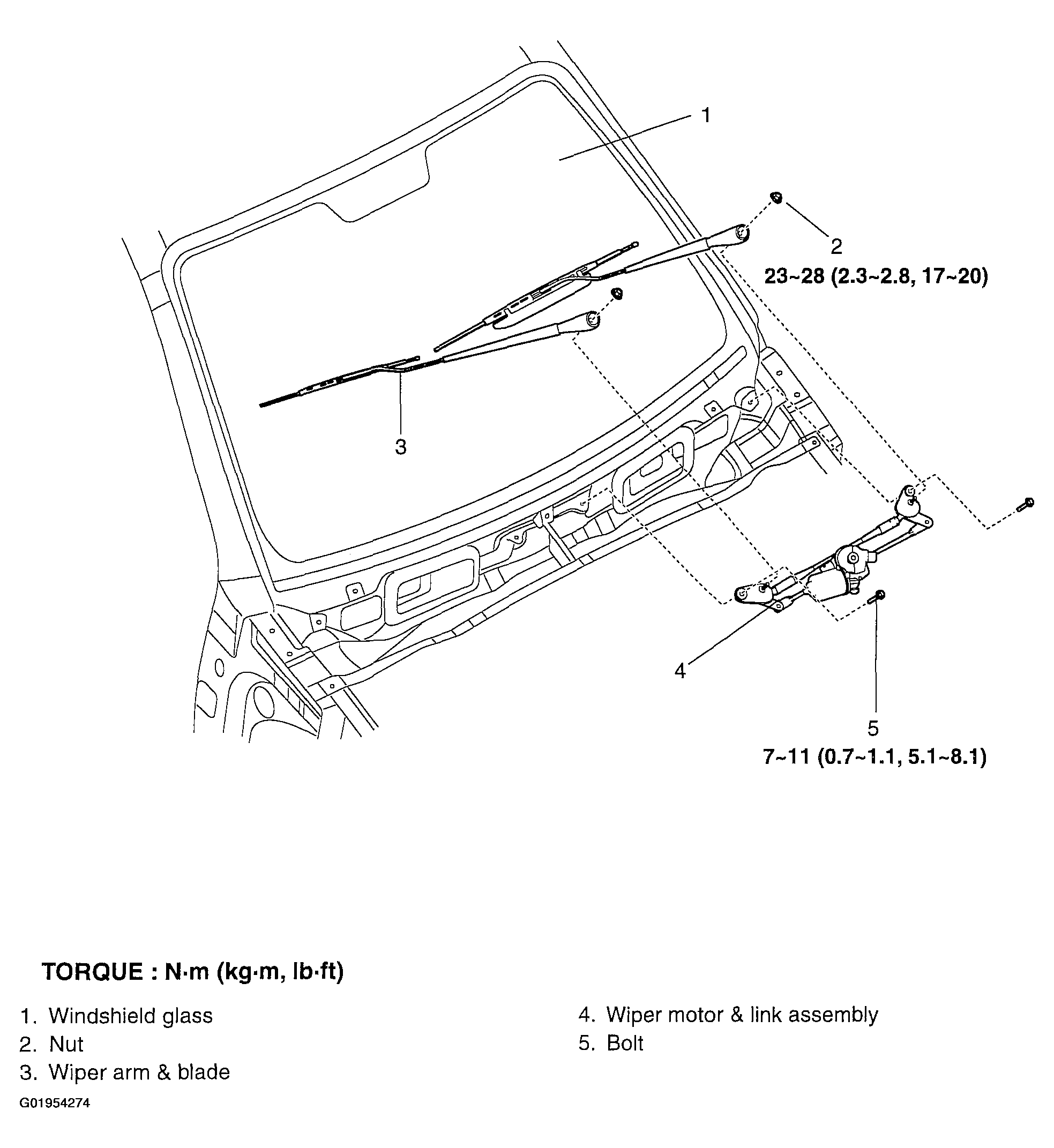

Fig 1: Illustrating Front Wiper Motor Components
G01954274Courtesy of KIA MOTORS AMERICA, INC.
