Power Windows: Troubleshooting

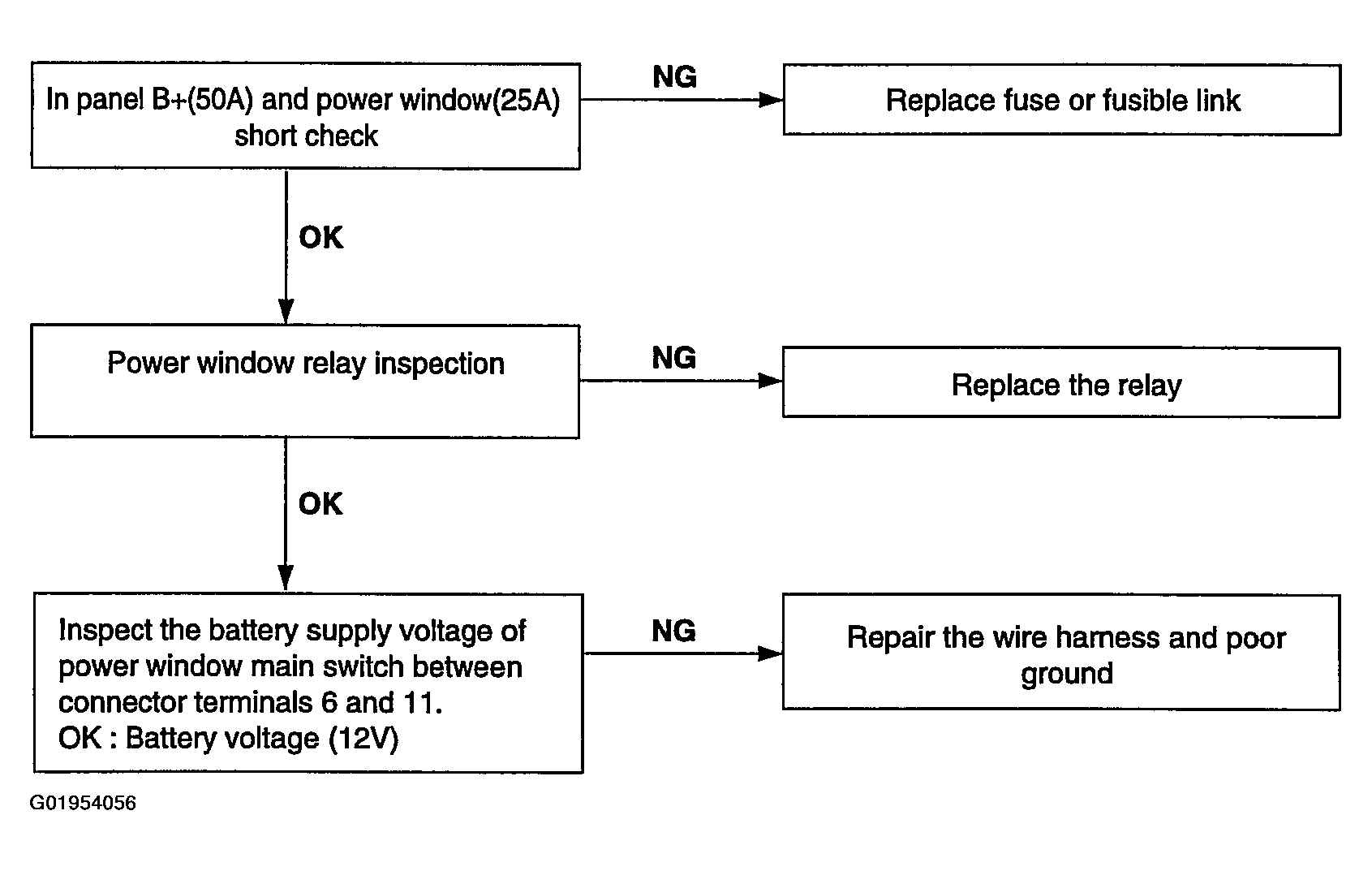

  1. No windows operate from the main switch on the driver's door.
    Fig 1: No Windows Operate From The Main Switch On The Driver's Door Troubleshooting Guide
    G01954056Courtesy of KIA MOTORS AMERICA, INC.

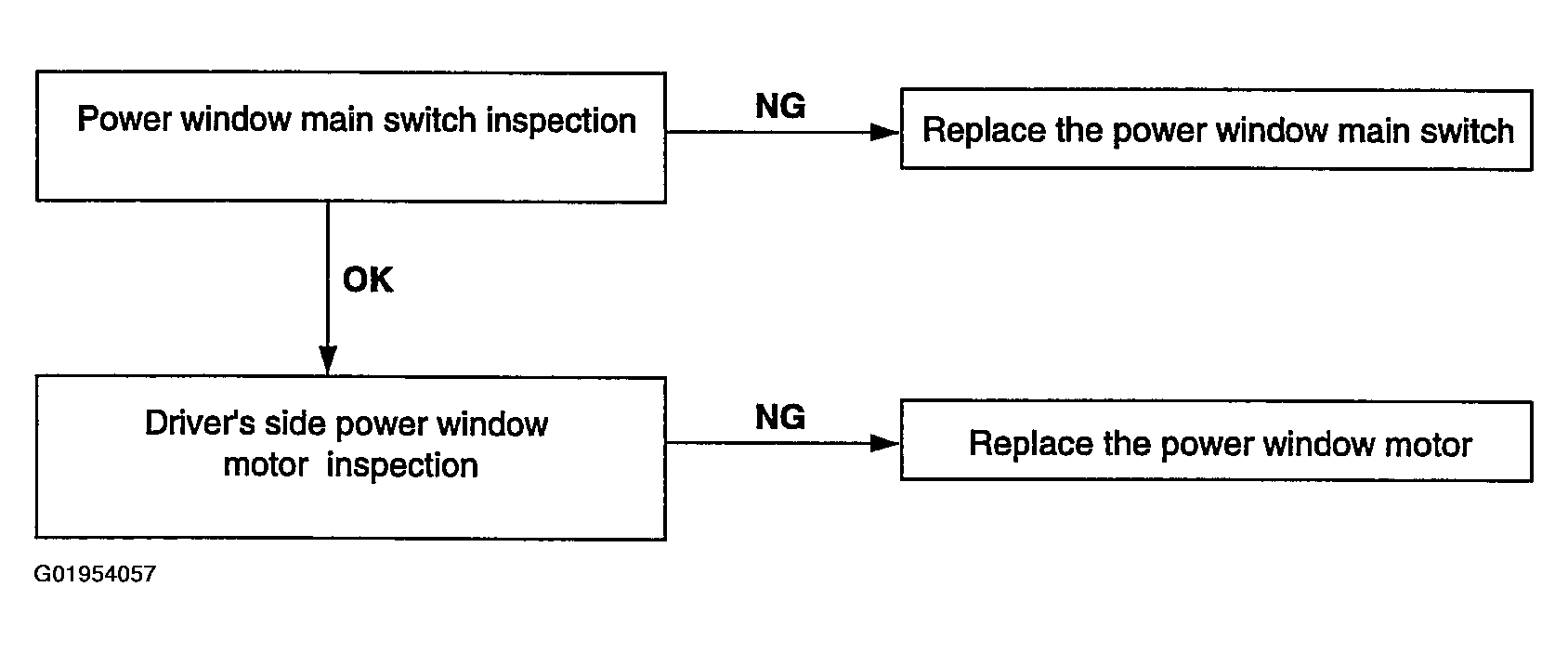

  2. Driver's side window does not operate.
    Fig 2: Driver's Side Window Does Not Operate Troubleshooting Guide
    G01954057Courtesy of KIA MOTORS AMERICA, INC.

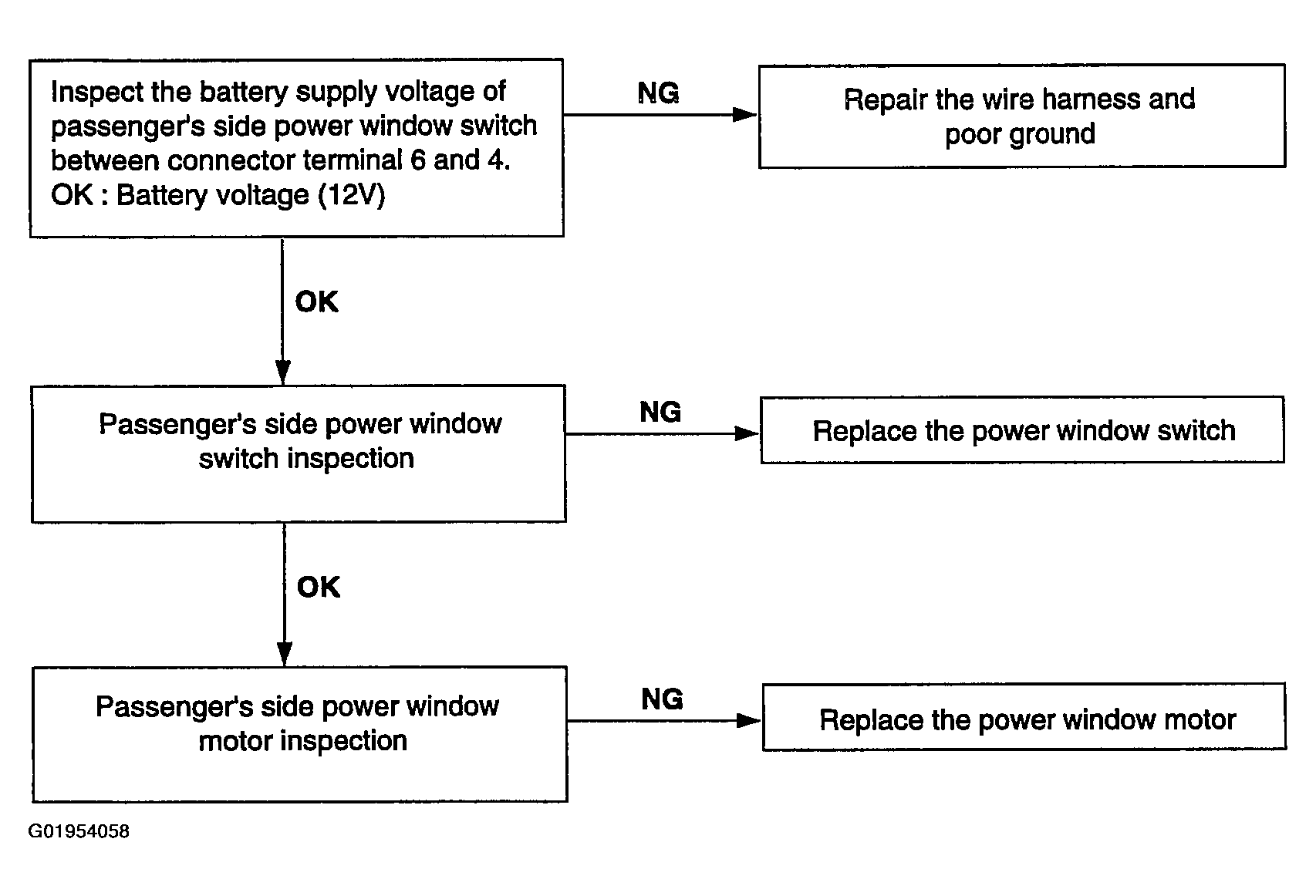

  3. Passenger's side window does not operate.
    Fig 3: Passenger's Side Window Does Not Operate Troubleshooting Guide
    G01954058Courtesy of KIA MOTORS AMERICA, INC.
