Engine Control System/Fuel System - 1.8L
›
MFI Control System Components
›
Component Description
Component Description

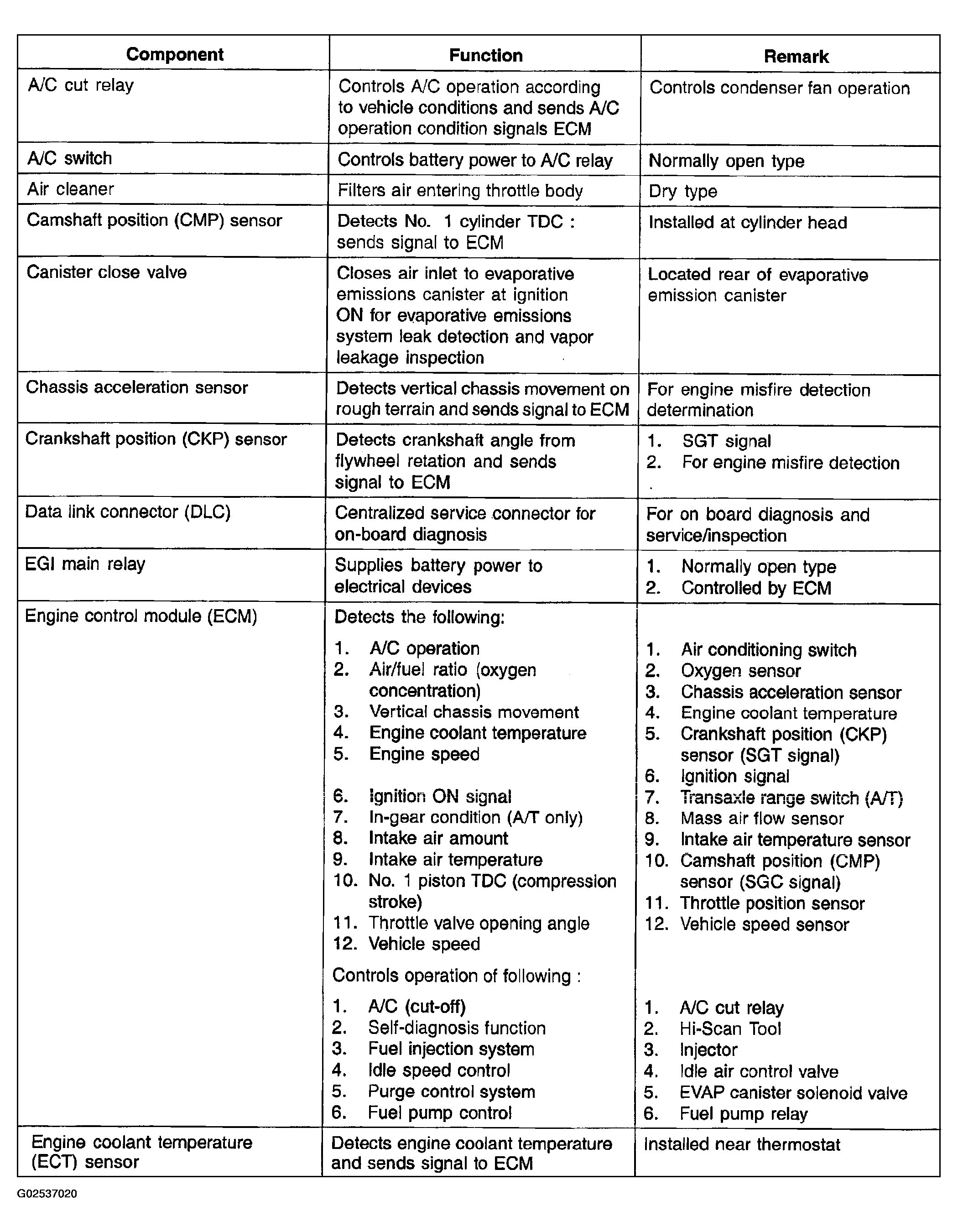

Fig 1: Component Description (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

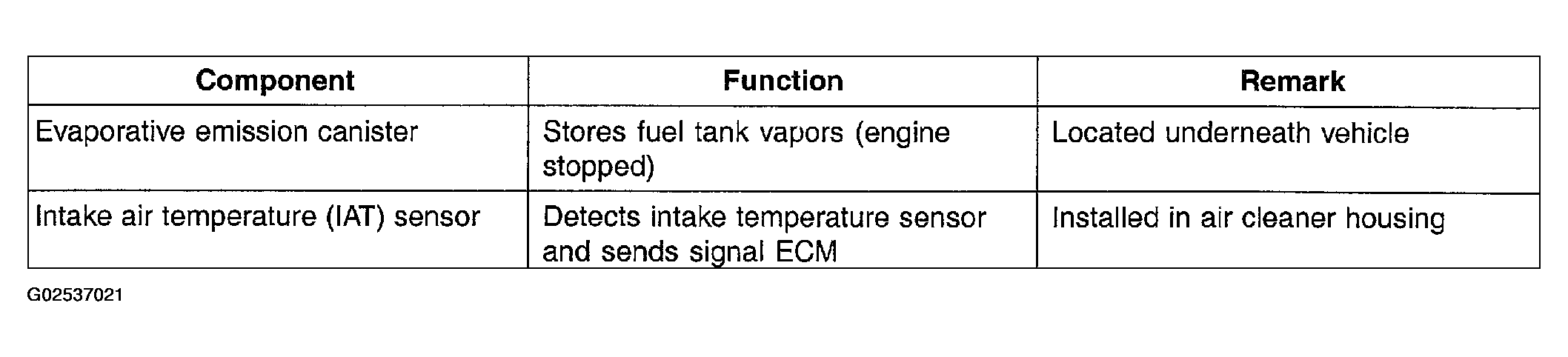

Fig 2: Component Description (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
