MFI Control System Components: Components

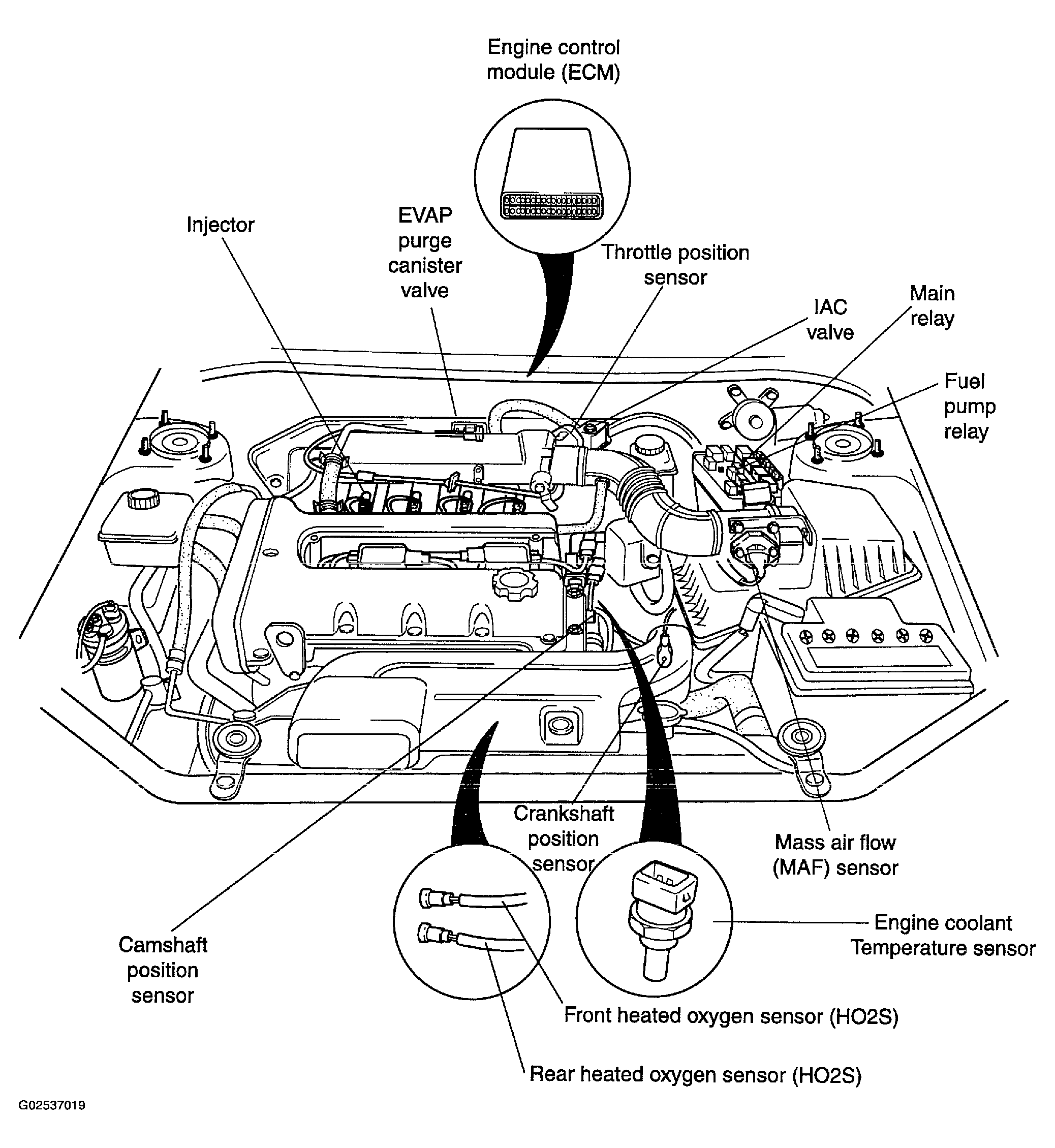

Fig 1: Identifying MFI Control System Components
G02537019Courtesy of KIA MOTORS AMERICA, INC.
