Cooling Fan Relay: Replacement

  1. Install cooling fan motor relay from engine compartment fuse/relay box.

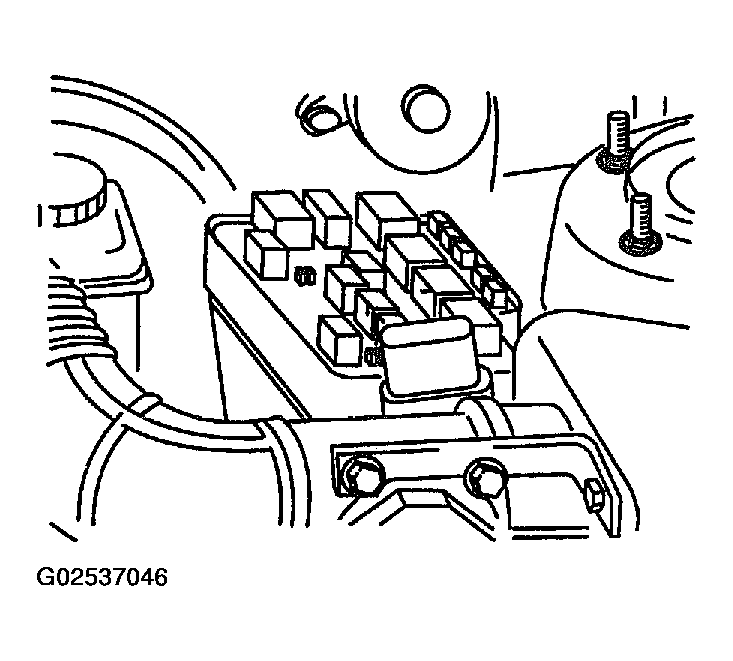

    Fig 1: Installing Cooling Fan Motor Relay
    G02537046Courtesy of KIA MOTORS AMERICA, INC.
  2. Connect negative battery cable.
    Fig 2: Connecting Negative Battery Cable
    G02537047Courtesy of KIA MOTORS AMERICA, INC.
