Home › Kia › 2004 › Spectra Base, 1.8 1, Automatic › Repair and Diagnosis › Suspension › Front Suspension › Front Axle › Front Hub/Knuckle › Components

Front Hub/Knuckle: Components

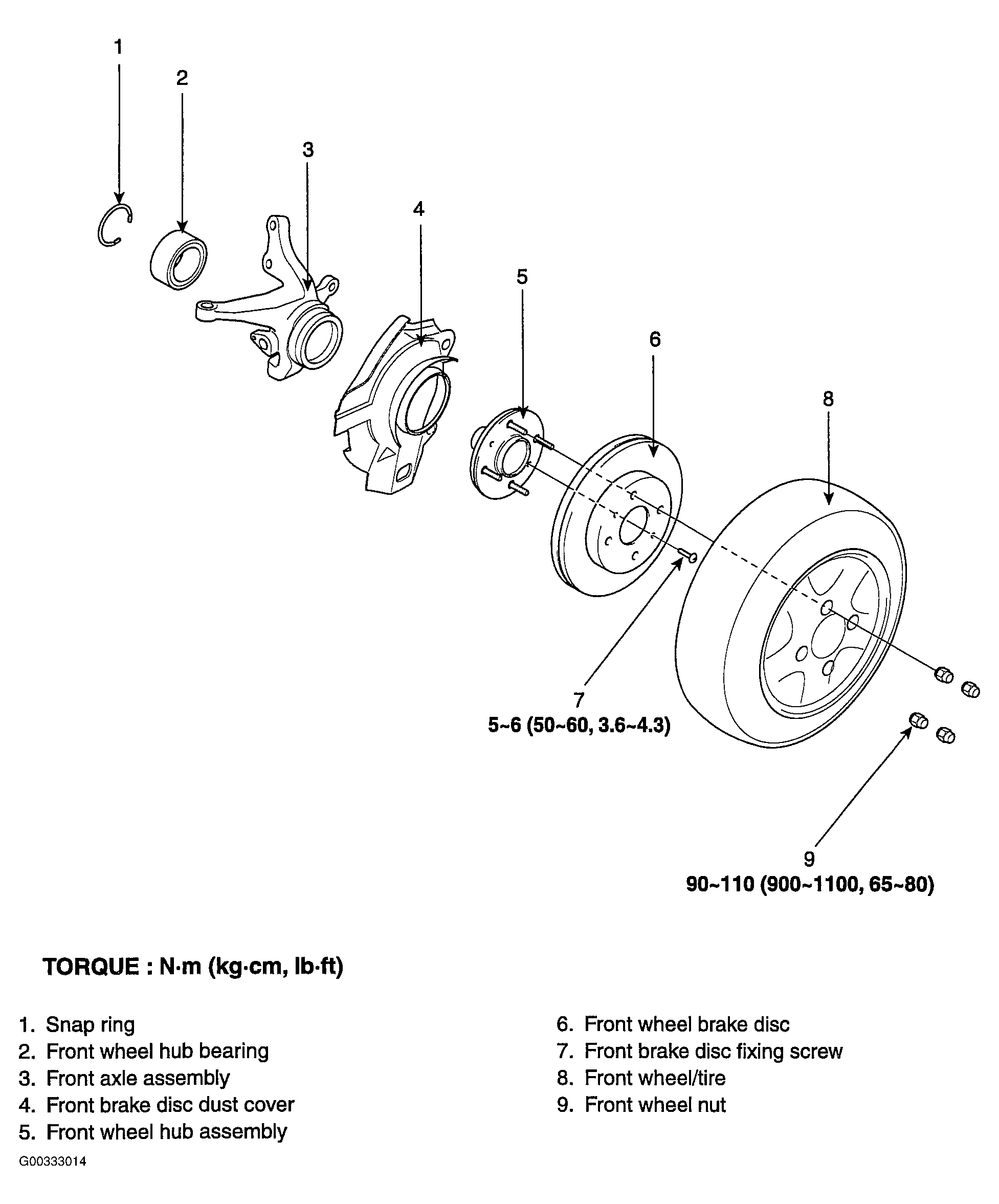

Fig 1: Identifying Front Hub/Knuckle Components

G00333014

Courtesy of KIA MOTORS AMERICA, INC.
