Strut Assembly: Components

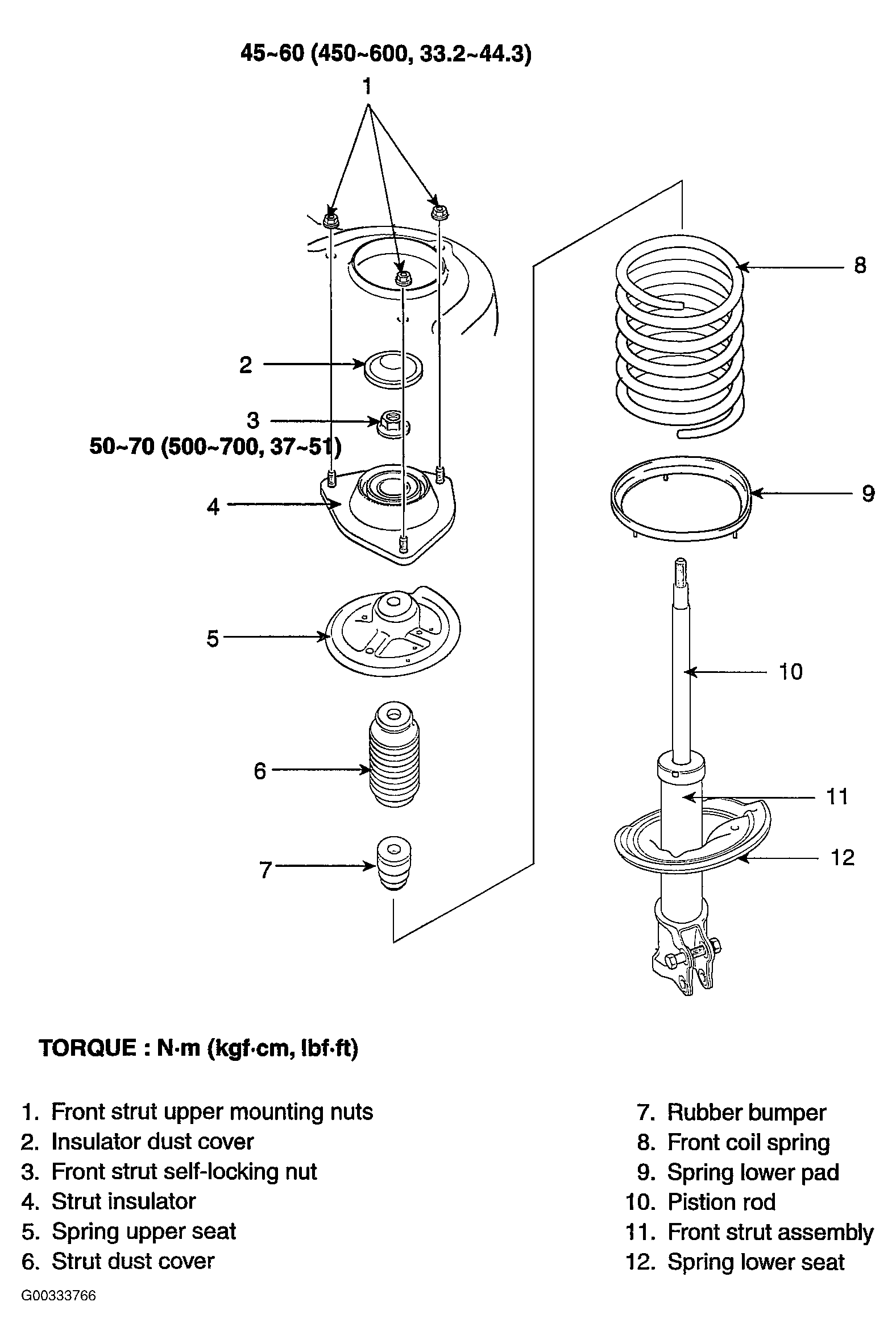

Fig 1: Exploded View Of Front Strut Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
