Strut Assembly: Removal

NOTE: Do not apply excessive force to the components.

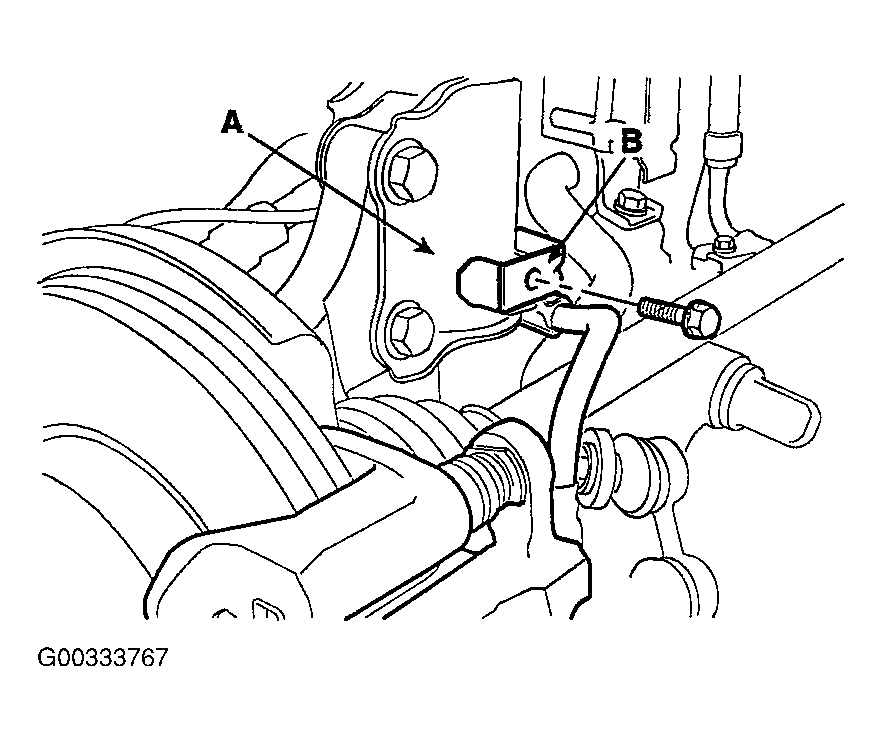

Fig 1: Identifying Front Brake Hose Bracket

Courtesy of KIA MOTORS AMERICA, INC.

Detach the brake hose bracket (B) from the front strut assembly (A).

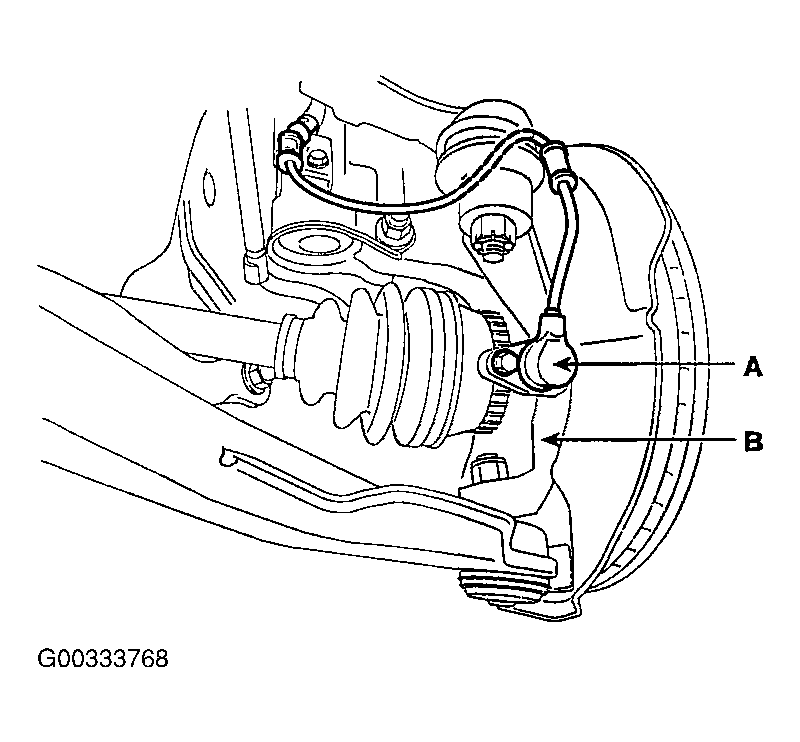

In case of the vehicles equipped with Anti-lock Brake system, remove the wheel speed sensor (A) from the knuckle (B).

Fig 2: Locating Front Wheel Speed Sensor
Courtesy of KIA MOTORS AMERICA, INC.
Remove the strut upper mounting nuts (A).

Fig 3: Locating Strut Upper Mounting Nuts
Courtesy of KIA MOTORS AMERICA, INC.

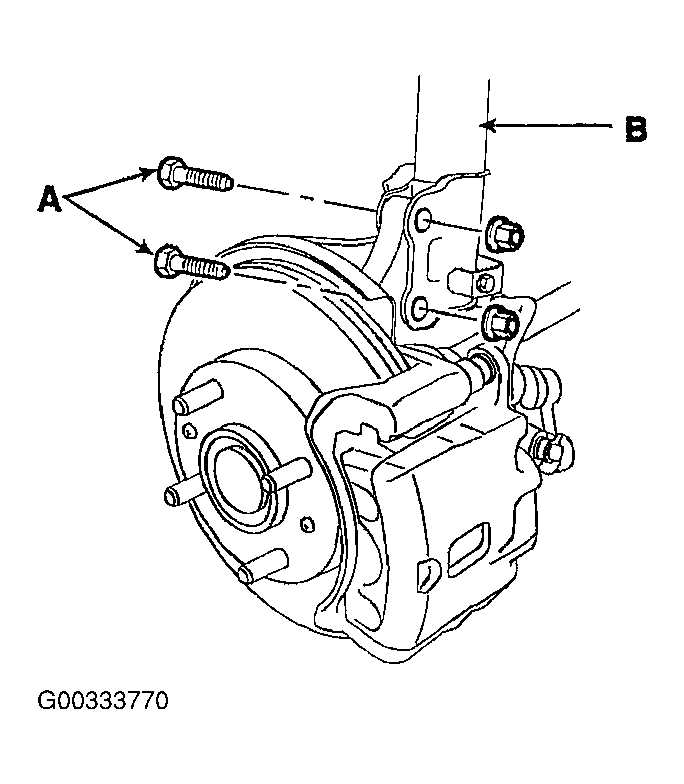

Remove the strut lower mounting bolts (A) and then remove the strut assembly (B).

Fig 4: Locating Strut Lower Mounting Bolts/Nuts

Courtesy of KIA MOTORS AMERICA, INC.
