FixVault
Home
›
Kia
›
2004
›
Spectra Base, 1.8 1, Automatic
›
Repair and Diagnosis
›
Suspension
›
Front Suspension
›
General
›
Service Specifications
›
Special Tools
Special Tools

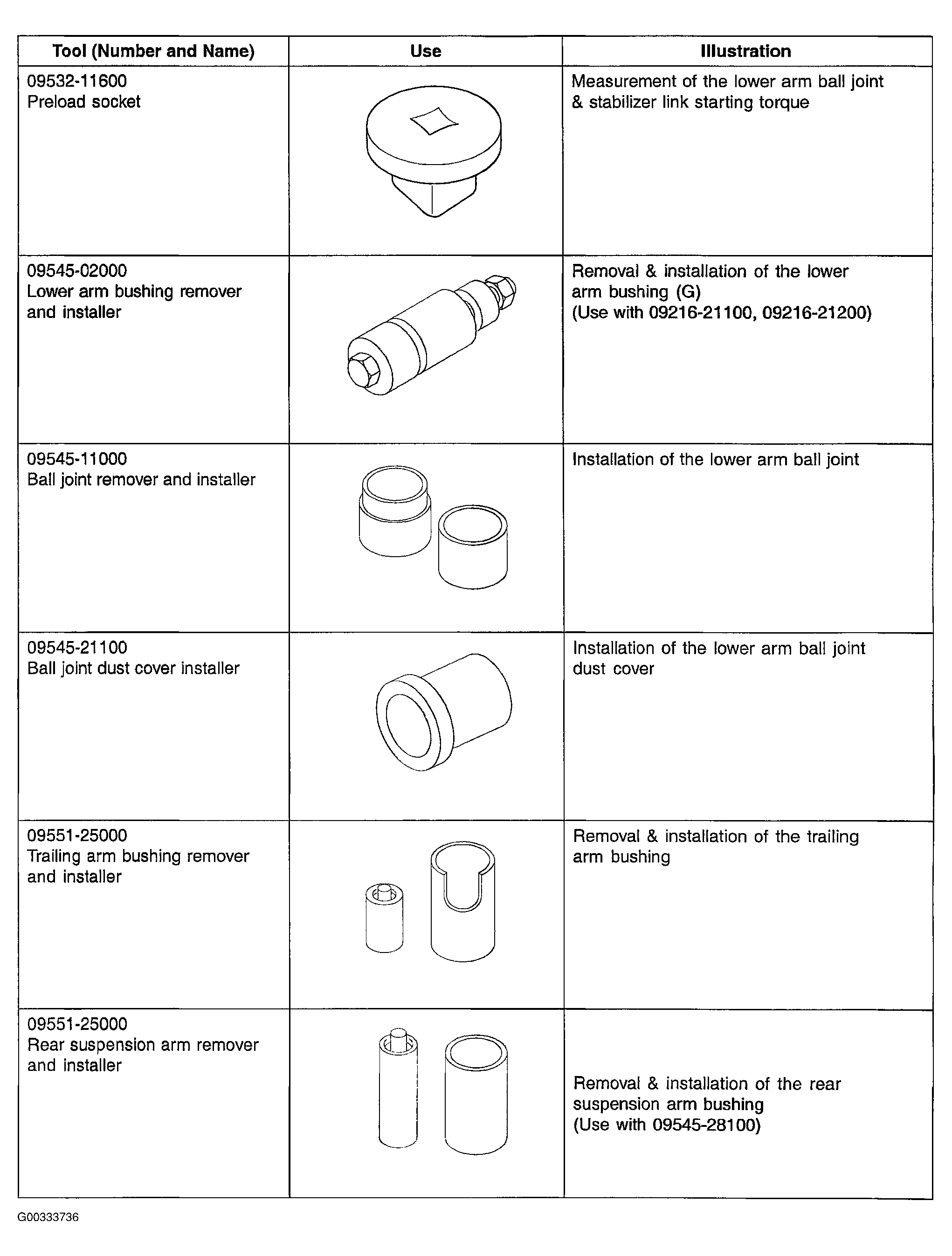

Fig 1: Identifying Special Tools (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

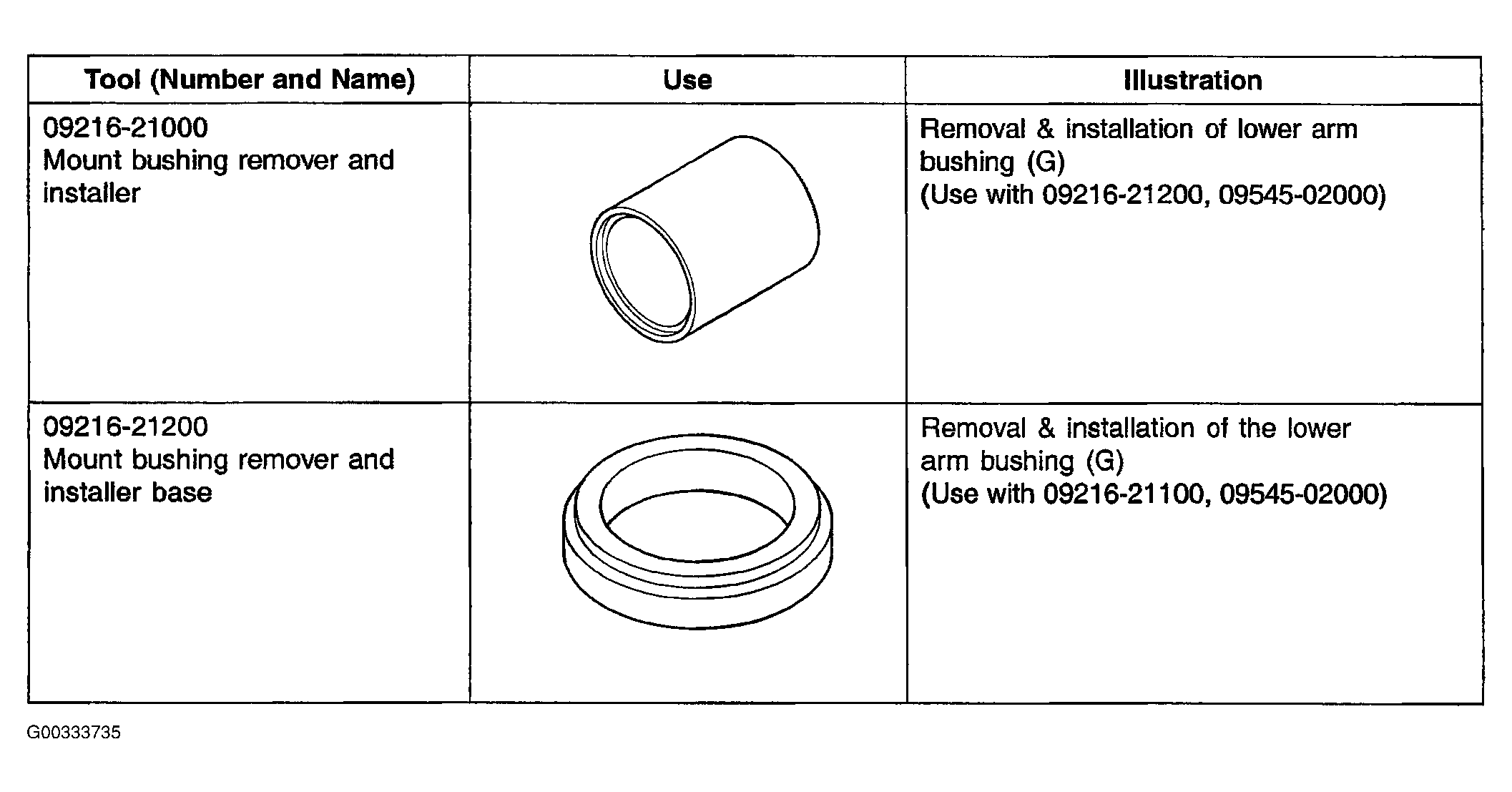

Fig 2: Identifying Special Tools (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

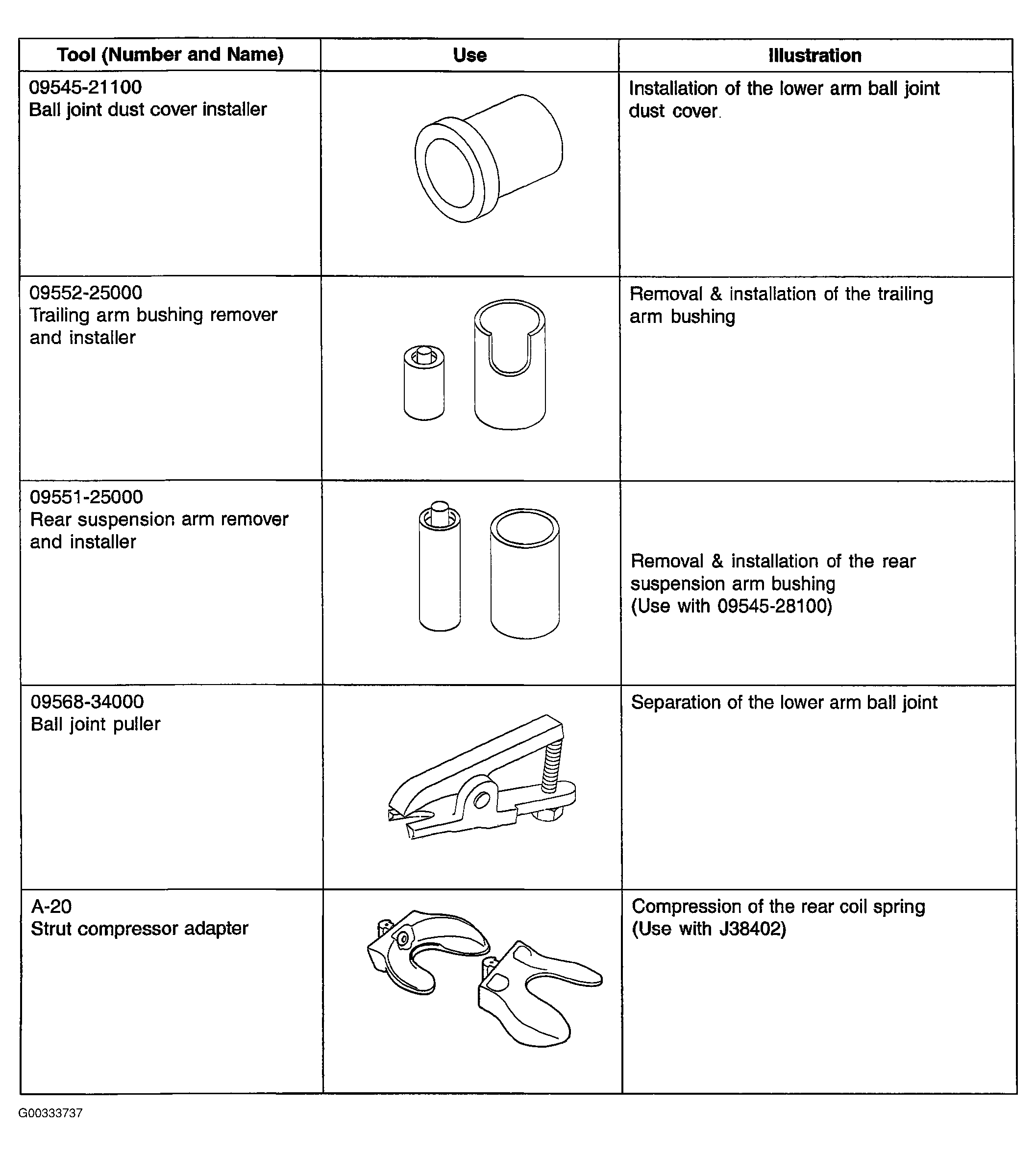

Fig 3: Identifying Special Tools (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
