Kia
›
2004
›
Spectra Base, 1.8 1, Automatic
›
Repair and Diagnosis
›
Suspension
›
Front Suspension
›
General
›
Specifications
›
Front Suspension System
Front Suspension System

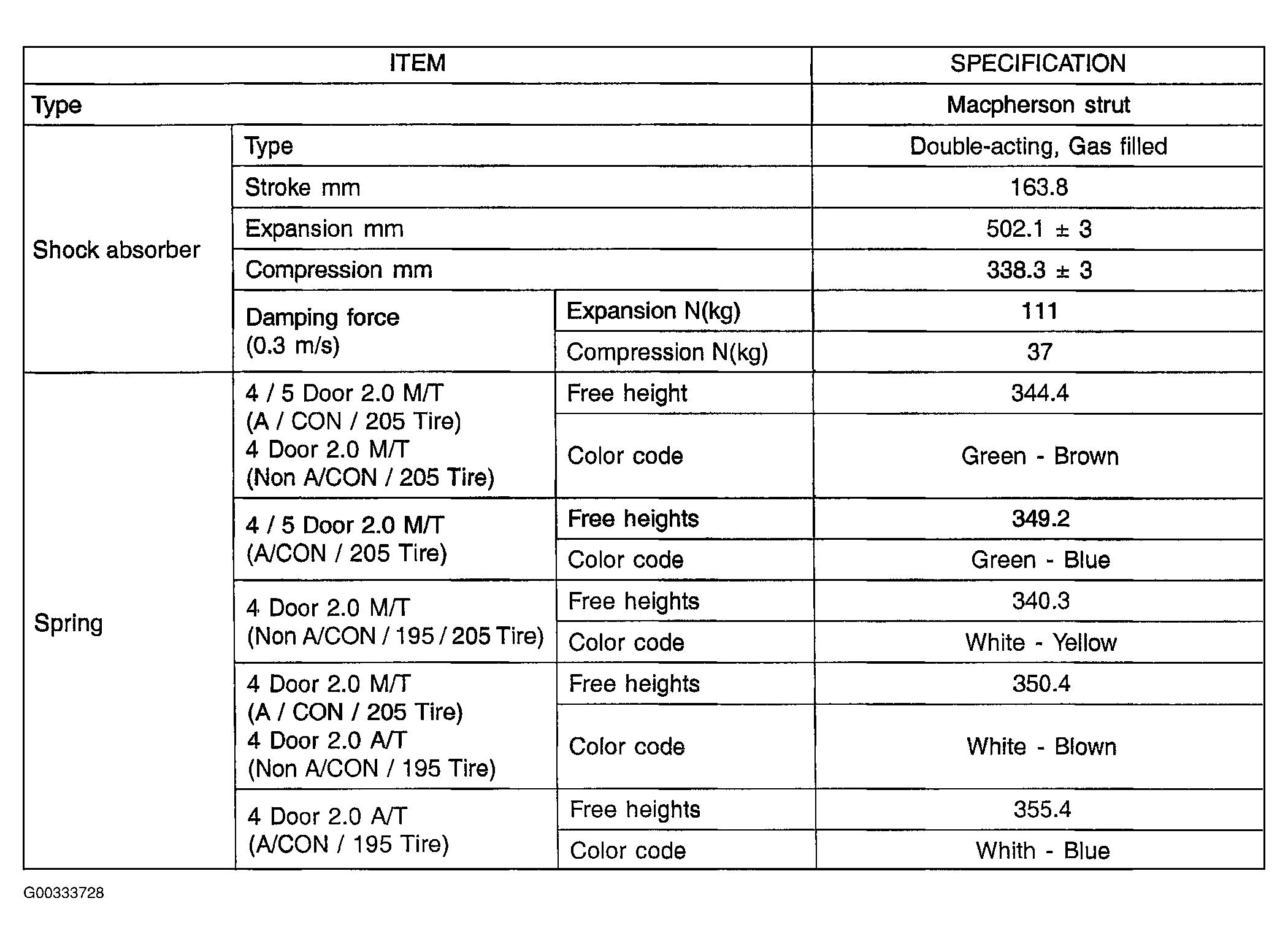

Fig 1: Front Suspension Specifications
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
