Chart 1

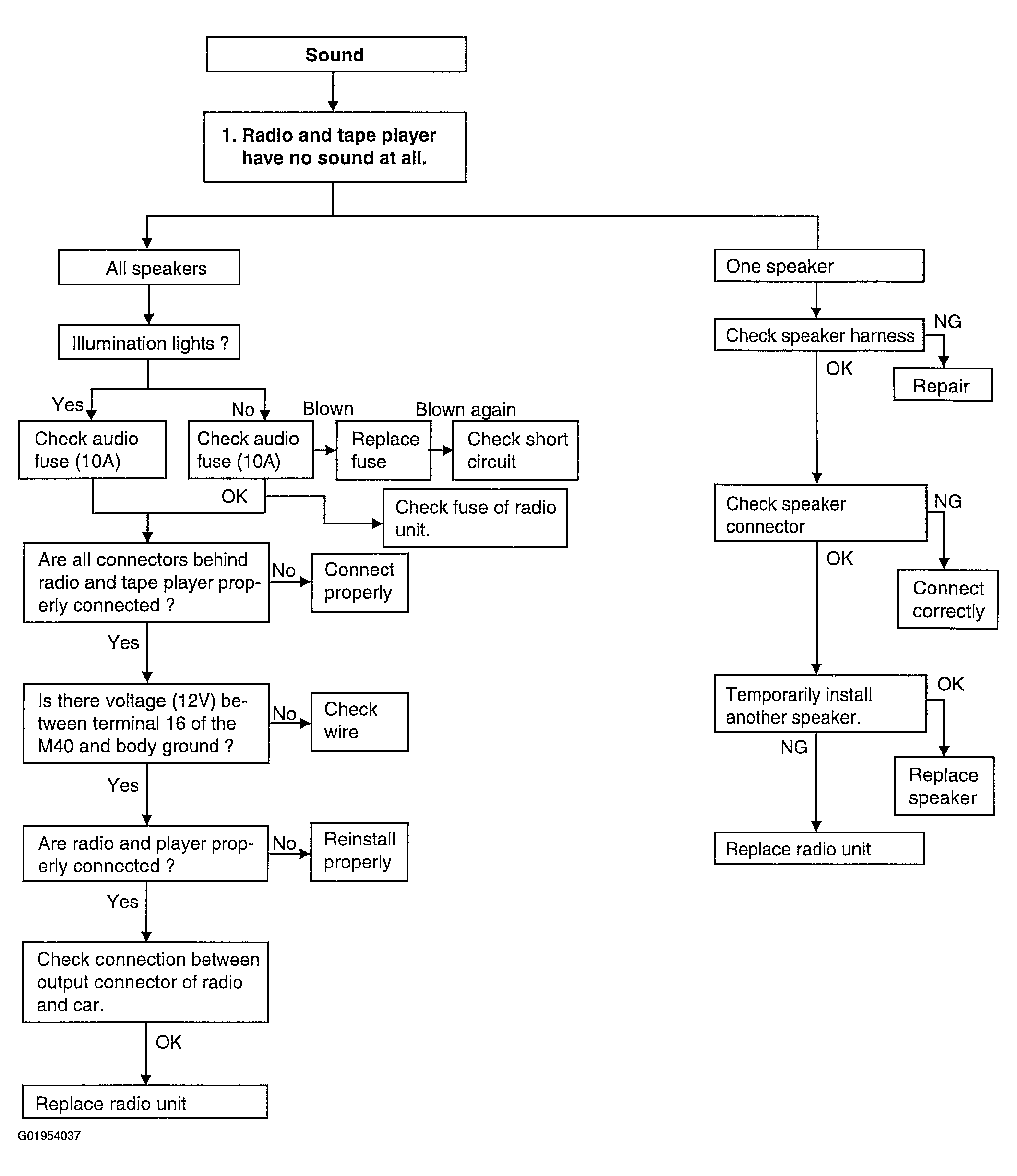

Fig 1: Radio & Tape Player Have No Sound At All
G01954037Courtesy of KIA MOTORS AMERICA, INC.

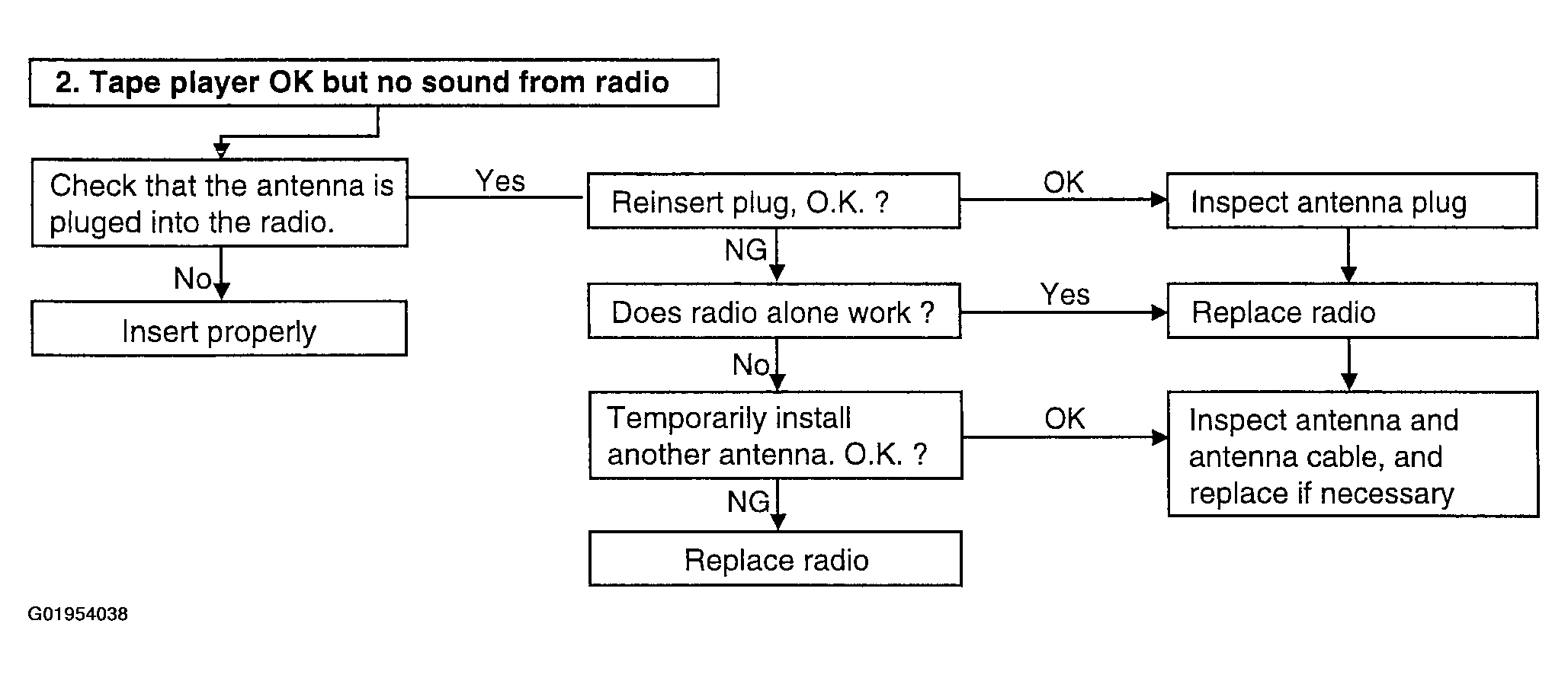

Fig 2: Tape Player OK But No Sound From Radio
G01954038Courtesy of KIA MOTORS AMERICA, INC.
