HECU Connector End View
HECU Connector End View

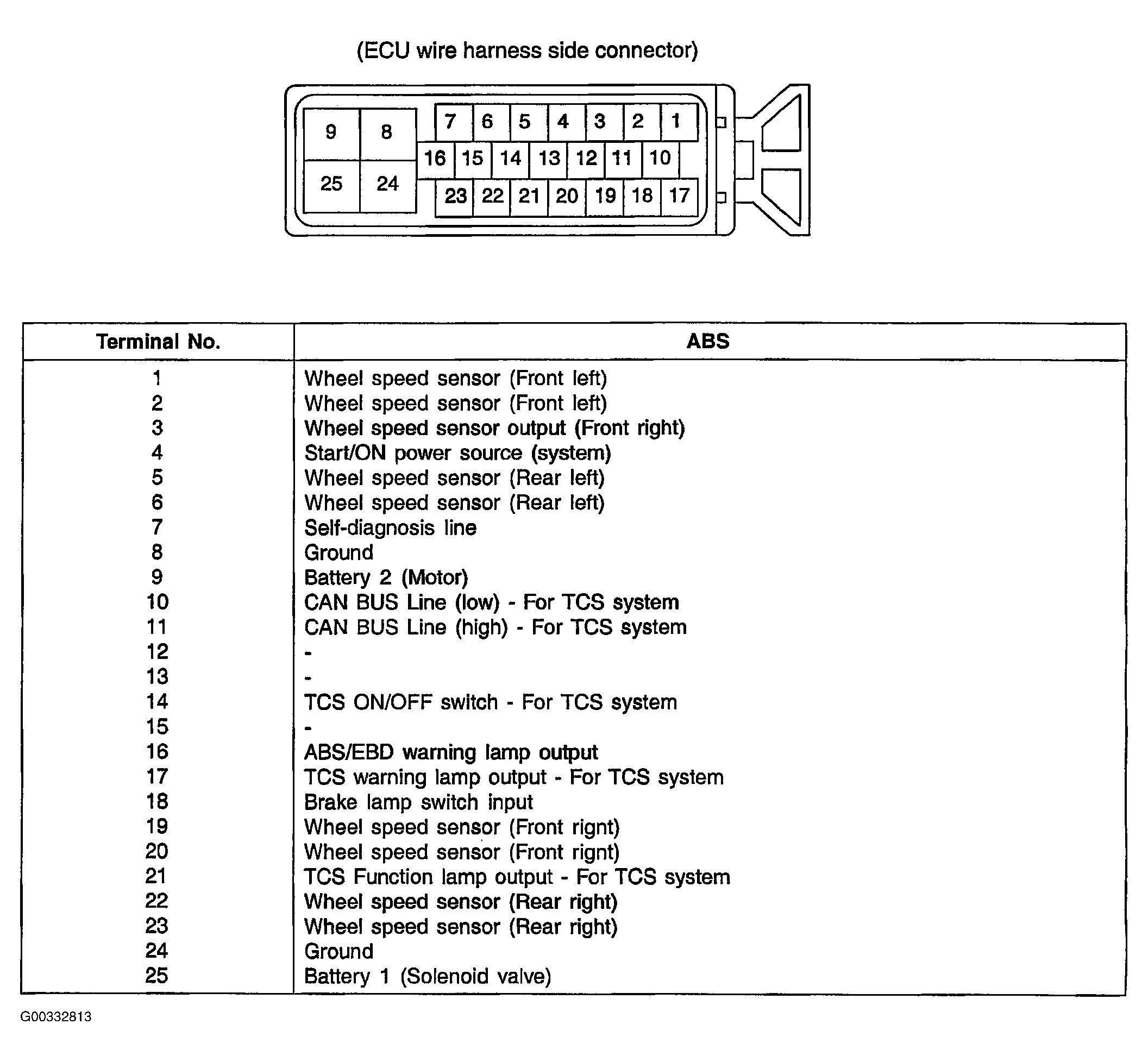

Fig 1: HECU Connector End View
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
