Home › Kia › 2005 › Amanti › Repair and Diagnosis › Brakes › Traction Control › Esp (Electronic Stability Program) › Diagnosis & Testing › Steering Wheel Angle Speed Sensor › Components

Steering Wheel Angle Speed Sensor: Components

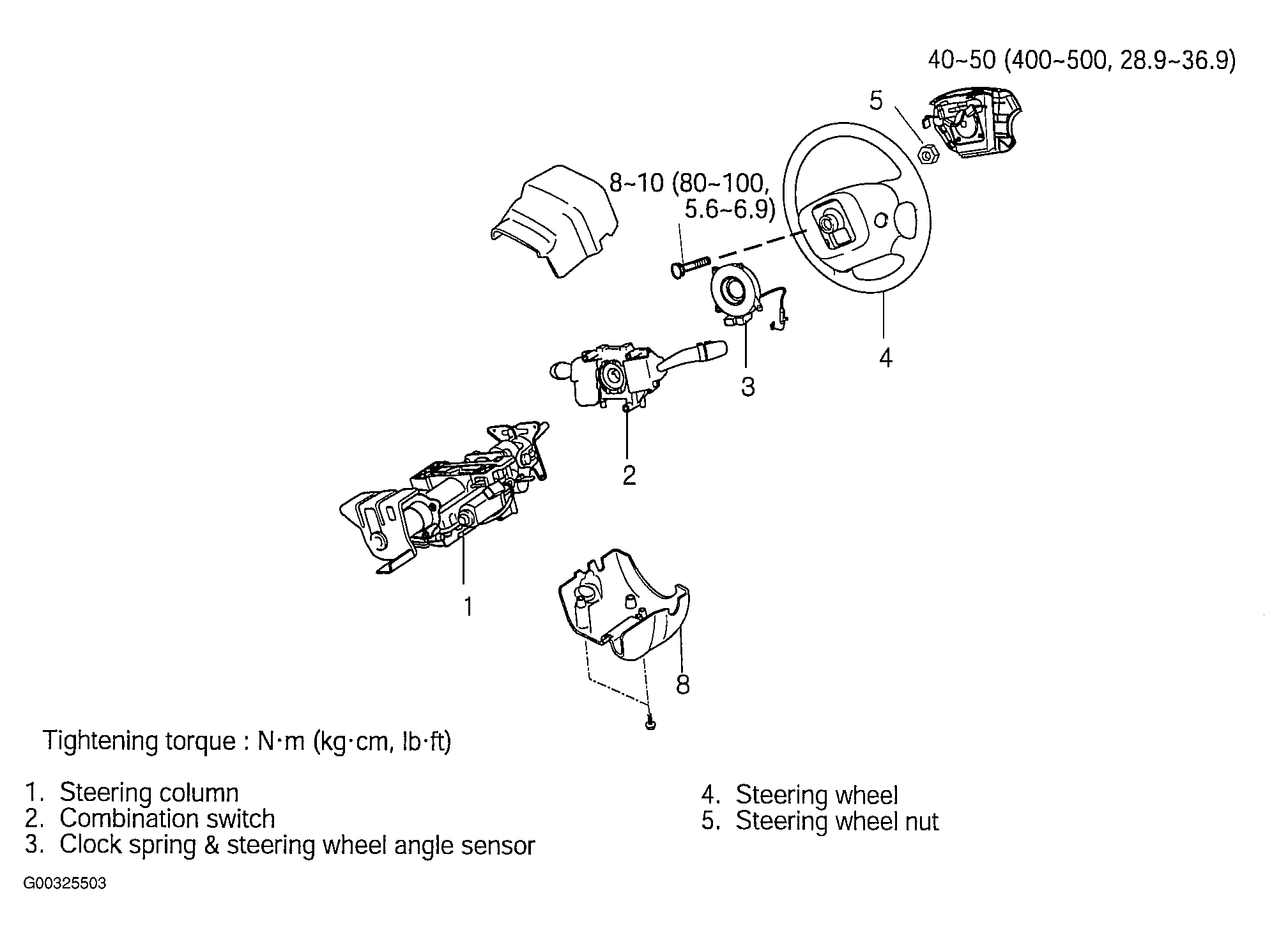

Fig 1: Identifying Steering Wheel Angle Speed Sensor
G00325503Courtesy of KIA MOTORS AMERICA, INC.
