Fuel Pump (FP): Removal

Open the service cover in trunk room.

Fig 1: Opening Service Cover In Trunk Room
Courtesy of KIA MOTORS AMERICA, INC.
Reduce the internal pressure of the fuel lines and hoses:
1. Disconnect the fuel pump harness connector.
2. Start the engine and wait until fuel in fuel line is exhausted. After the engine stalls, turn the ignition switch to the OFF position.
3. Disconnect the battery negative (-) terminal.
Disconnect the fuel feed hose and the fuel return hose.

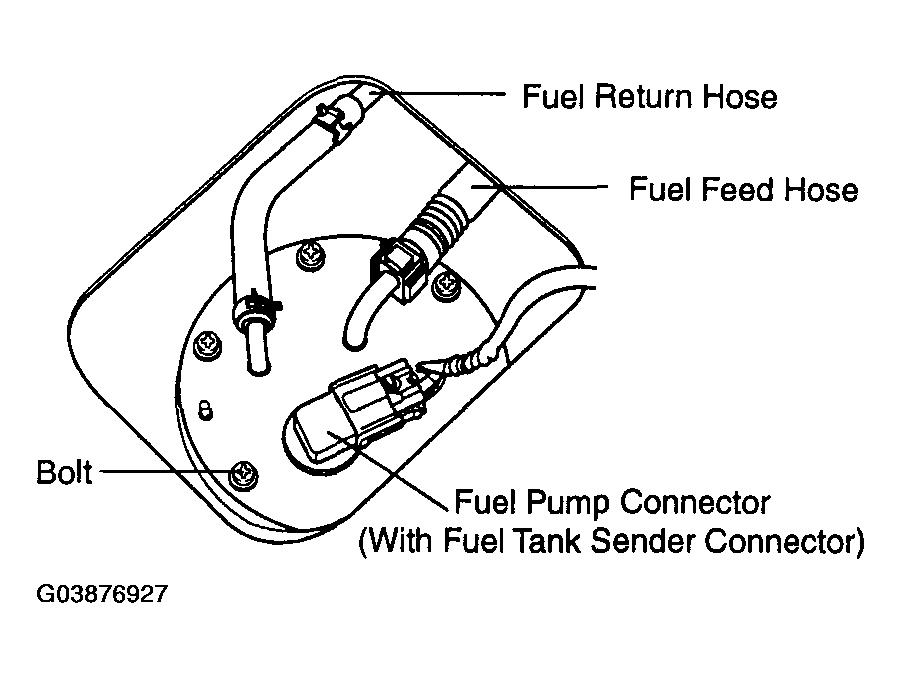

Fig 2: Disconnecting Fuel Feed Hose And Fuel Return Hose
Courtesy of KIA MOTORS AMERICA, INC.
Unfasten the bolts (6) and remove the fuel pump assembly from the fuel tank.

Fig 3: Removing Fuel Pump Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Remove the fuel filter holder and disconnect the connecting hose and the cable assembly, and then remove the fuel filter & pump assembly.
Pull the fuel pump downward and remove it from the fuel filter & pump assembly.

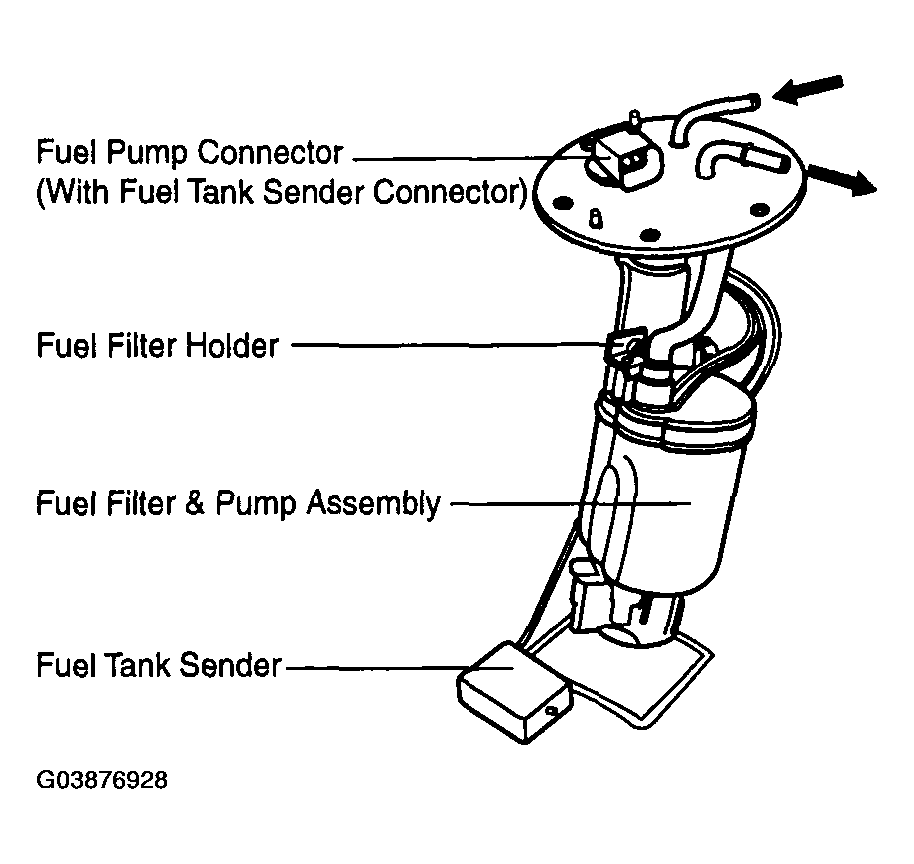

Fig 4: Removing Fuel Filter Holder
