Home › Kia › 2005 › Amanti › Repair and Diagnosis › Restraints › Restraints Control Systems › SRS Control System › Front Impact Sensor (FIS) › Components

Front Impact Sensor (FIS): Components

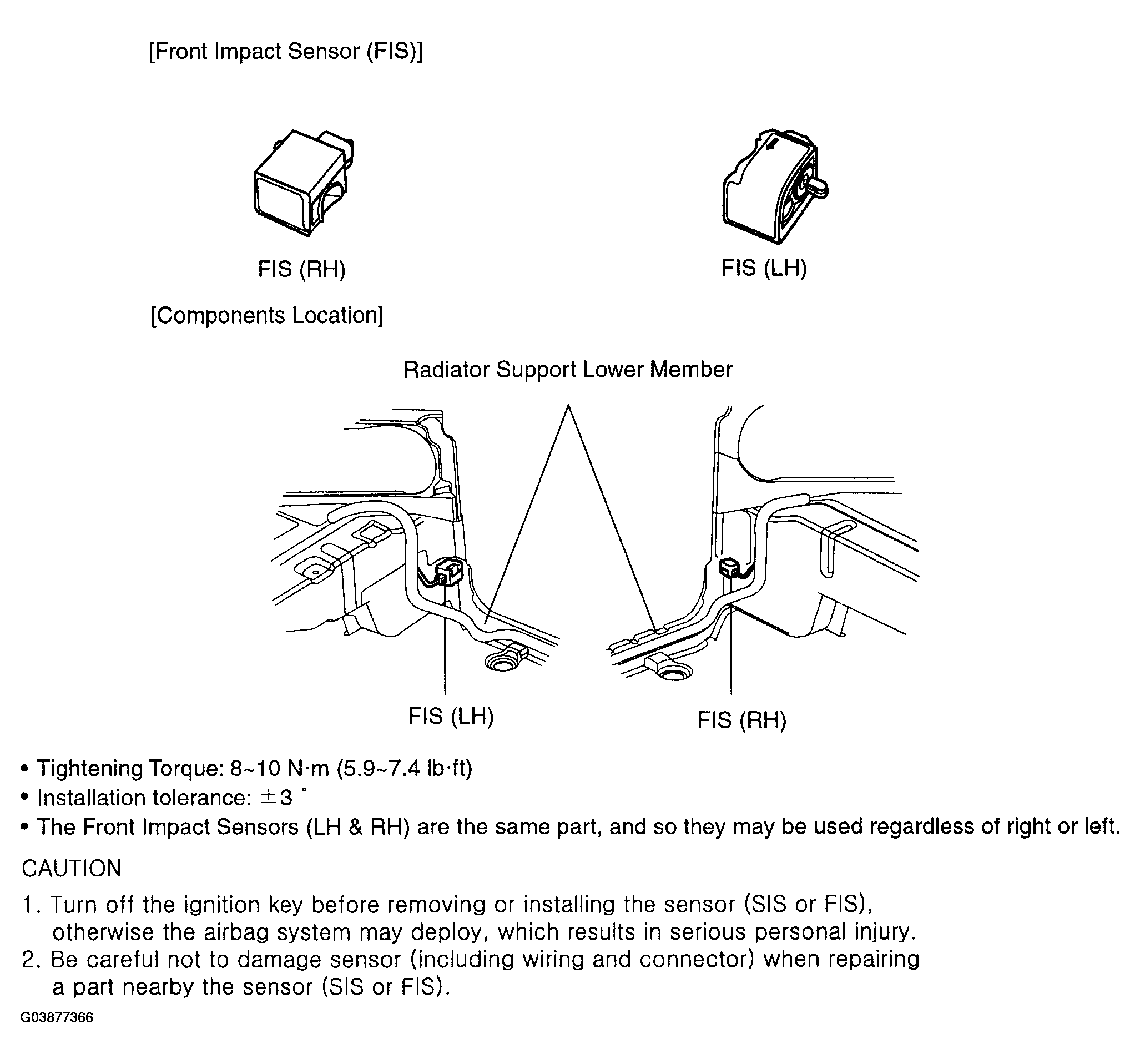

Fig 1: Identifying Front Impact Sensor (FIS)
G03877366Courtesy of KIA MOTORS AMERICA, INC.
