Steering Column & Shaft: Installation

Before installation, apply multipurpose grease to the groove inside the bearing and contracting surfaces of the boot and cover assembly.

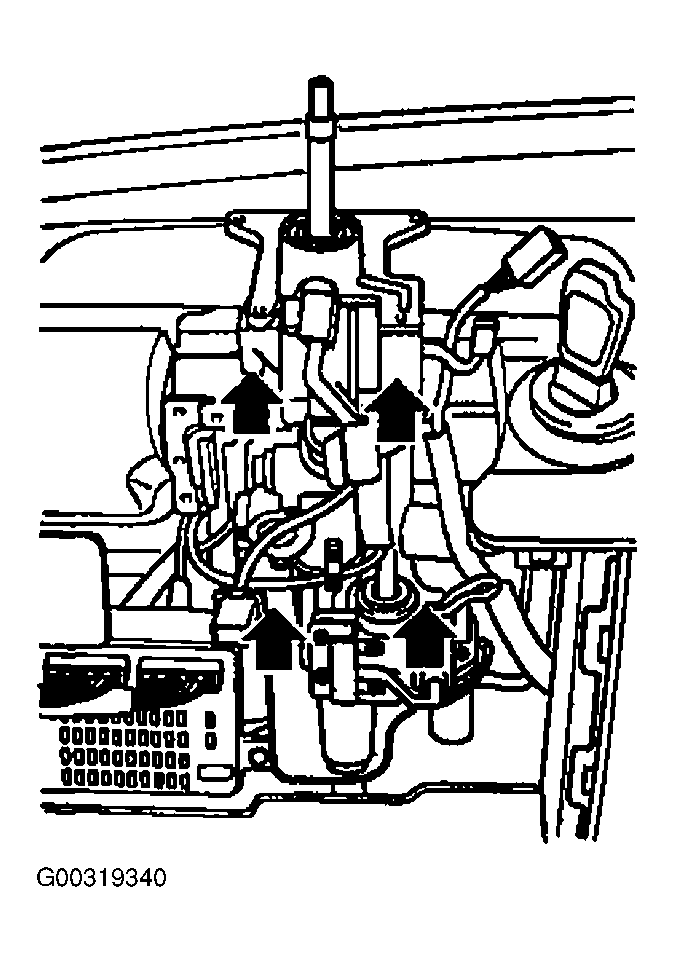

Install the steering column and shaft.

Fig 1: Installing The Steering Column And Shaft
Courtesy of KIA MOTORS AMERICA, INC.

Tightening torque : 12.7-17.7 N.m (1.3-1.8 kg.m, 9.4-13 lb.ft)
Install the wheel joint assembly.

Fig 2: Installing The Wheel Joint Assembly
Courtesy of KIA MOTORS AMERICA, INC.

Tightening torque : 14.7-19.6 N.m (1.5-2.0 kg.m, 10.8-14.5 lb.ft)
Install the coupling and universal joint.
Install and tighten coupling bolts.

Fig 3: Installing Coupling To Universal Joint & Tightening Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Install the multifuction switch and connect the connectors.

Fig 4: Installing Multifunction Switch
Courtesy of KIA MOTORS AMERICA, INC.

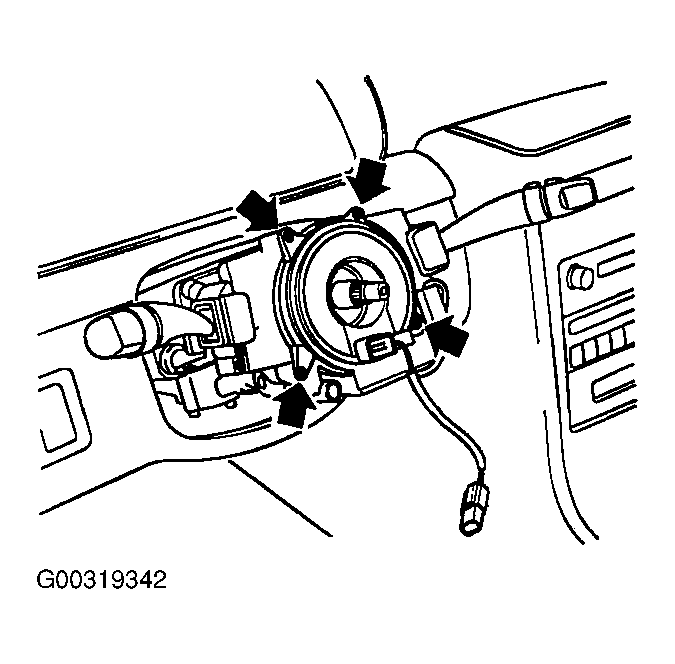

Install the steering column upper and lower shroud and lower cover.

Fig 5: Installing Steering Column Lower Cover
Courtesy of KIA MOTORS AMERICA, INC.

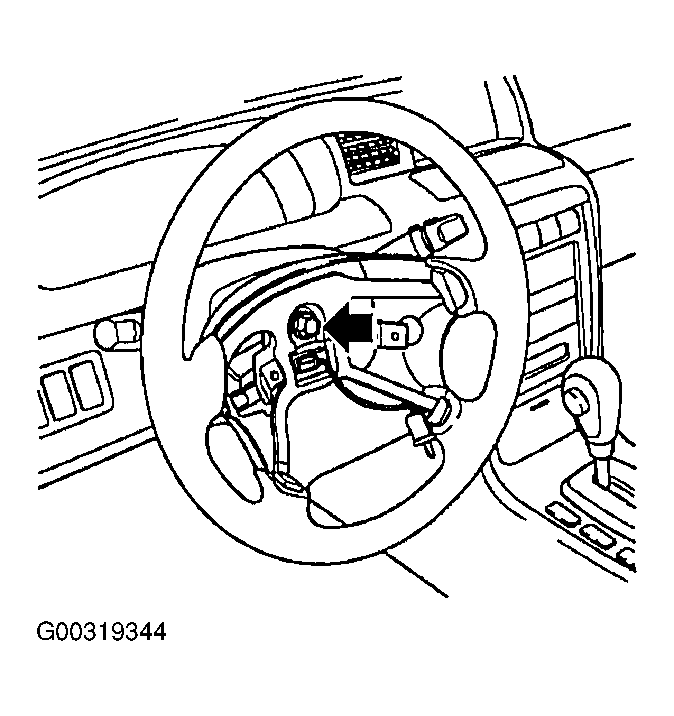

Install the steering wheel.

Fig 6: Installing Steering Wheel
Courtesy of KIA MOTORS AMERICA, INC.

Tightening torque : 39.2-49 N.m (4-5 kg.m, 28.9-36.2 lb.ft)
Install the air bag module.

Fig 7: Installing Air Bag Module
Courtesy of KIA MOTORS AMERICA, INC.

Tightening torque : 7.8-10.8 N.m (0.8-1.1 kg.m, 5.8-8 lb.ft)
Reconnect battery cable, and reset radio.
