Home › Kia › 2005 › Amanti › Repair and Diagnosis › Transmission › Automatic Trans › Automatic Transaxle › Direct Clutch › Components

Direct Clutch: Components

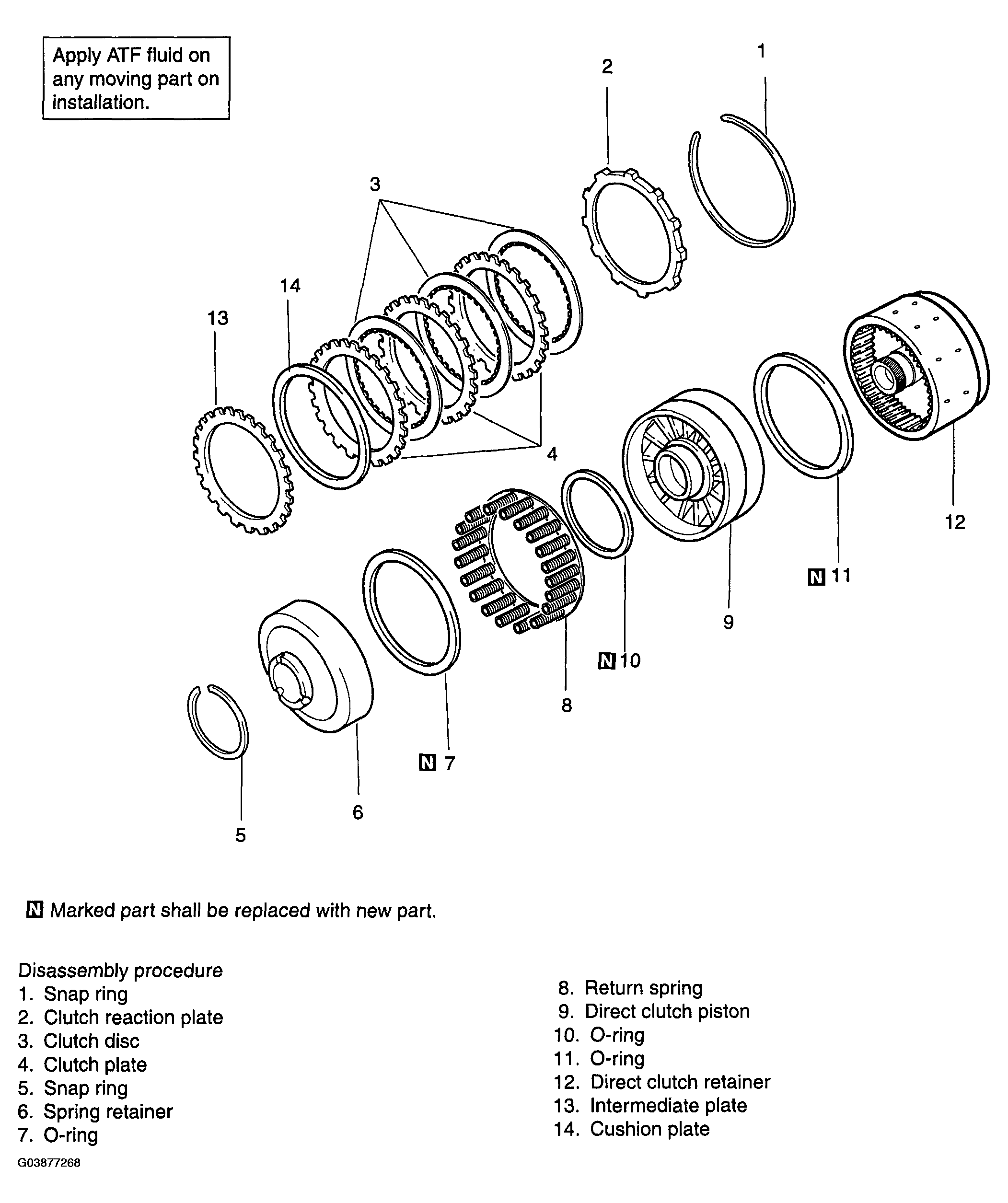

Fig 1: Exploded View Of Direct Clutch Components
G03877268Courtesy of KIA MOTORS AMERICA, INC.
