Inspection Procedure 14

PROBABLE CAUSE CHART

Poor accelerator	Probable cause
If acceleration is poor even if downshifting occurs while driving, the cause is probably a malfunction of the engine system or of a brake or clutch.	Malfunction of the engine system Malfunction of the brake or clutch

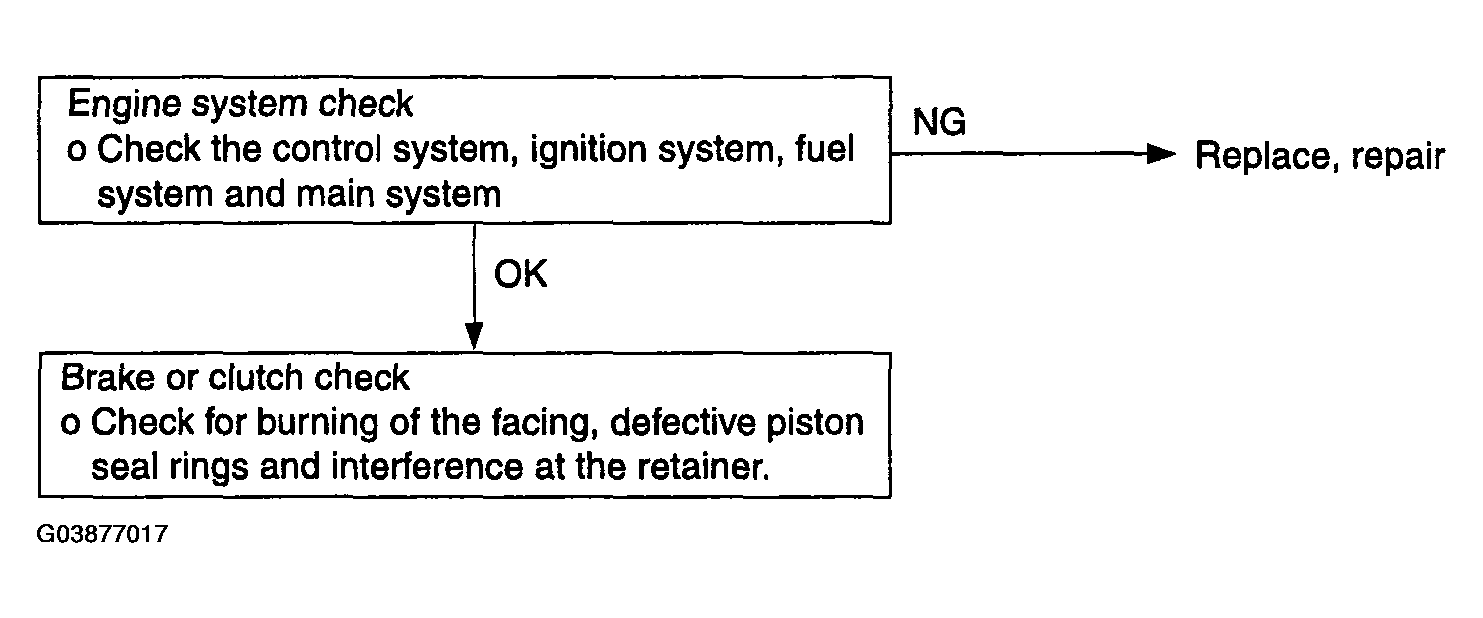

Fig 1: Inspecting Poor Accelerator Flow Chart

Courtesy of KIA MOTORS AMERICA, INC.
