Transfer Drive Gear: Components

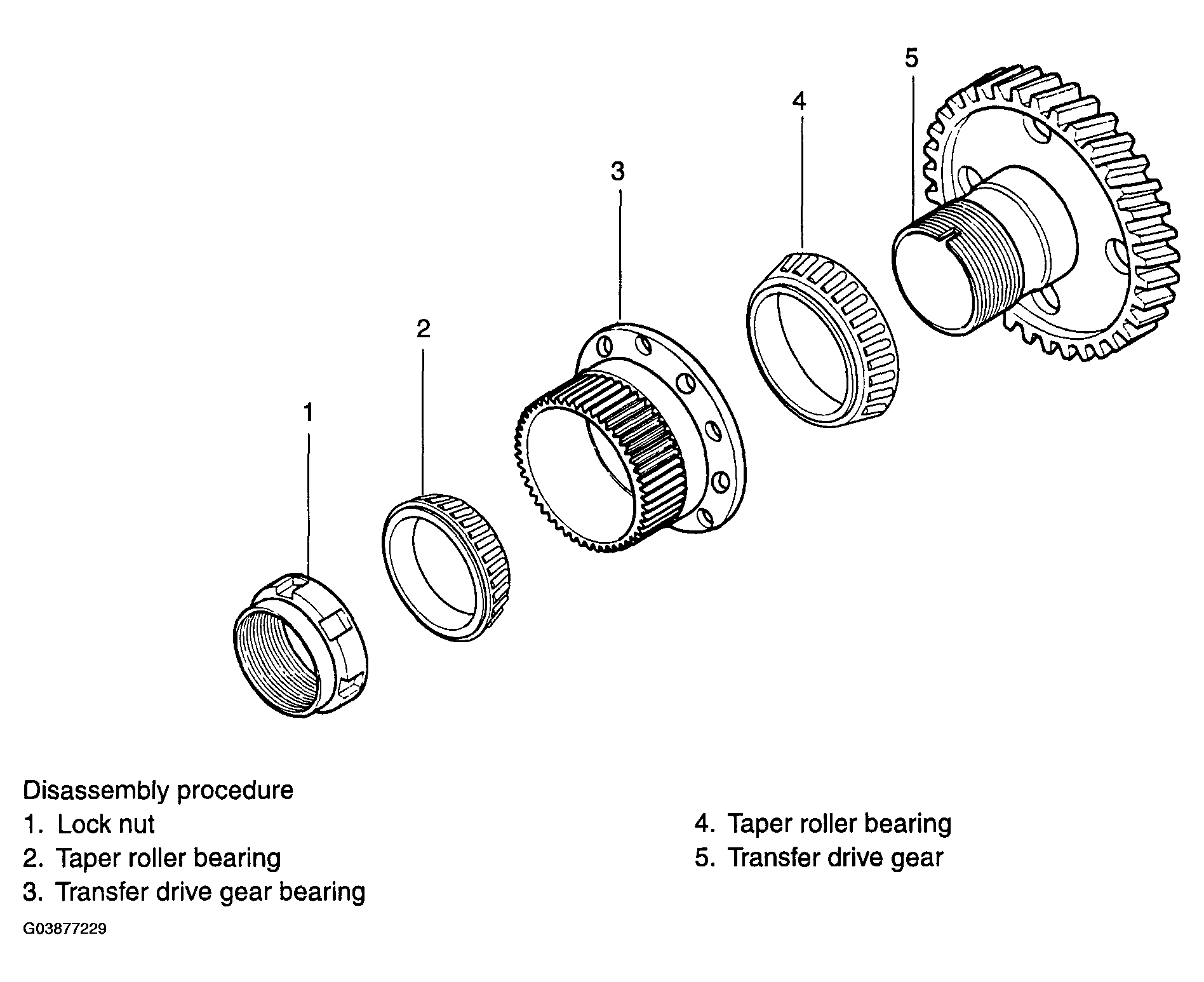

Fig 1: Exploded View Of Transfer Drive Gear Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
