UNDERDRIVE Clutch
›
Components
UNDERDRIVE Clutch: Components

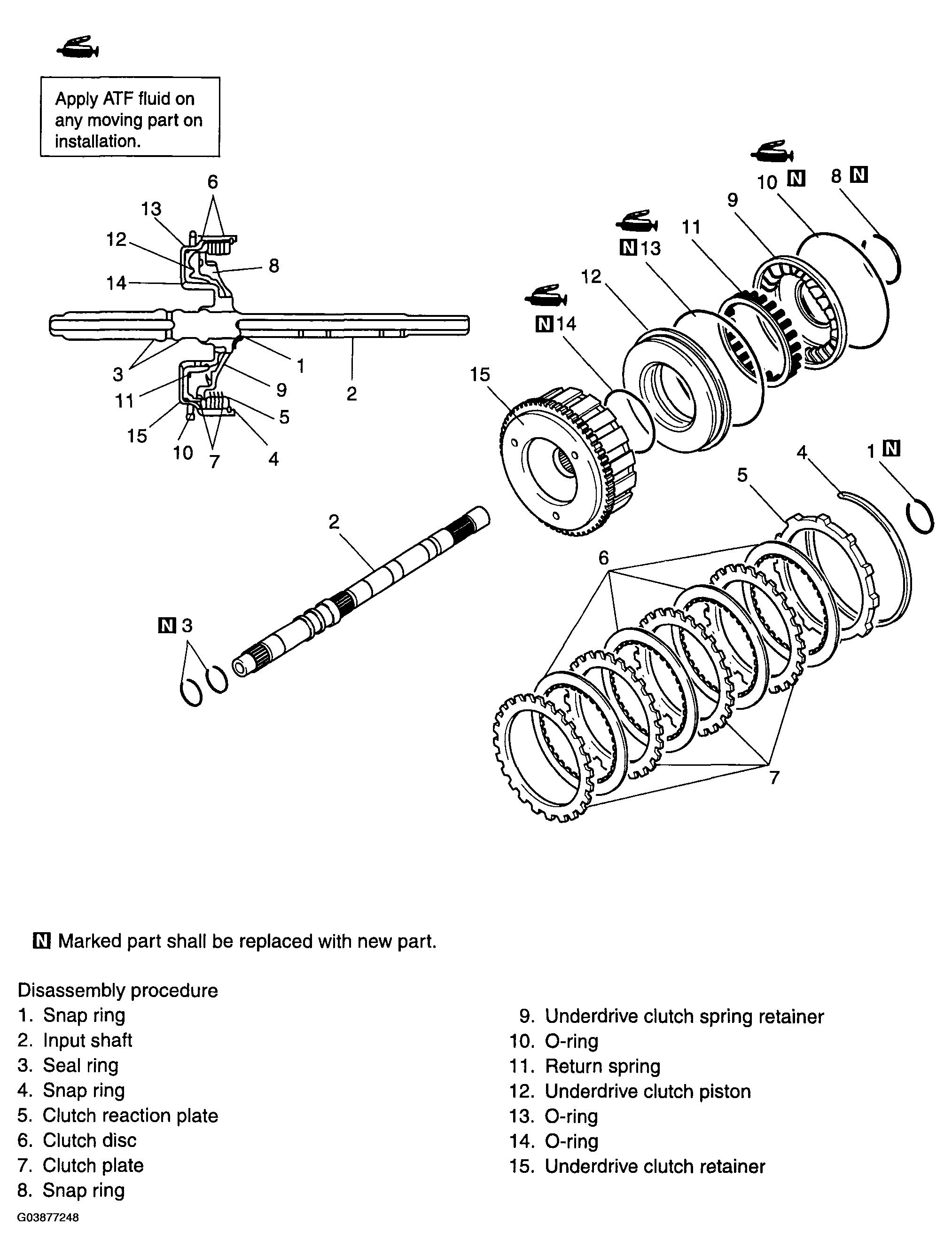

Fig 1: Exploded View Of Underdrive Clutch Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
