Valve Body: Components(A): Notes

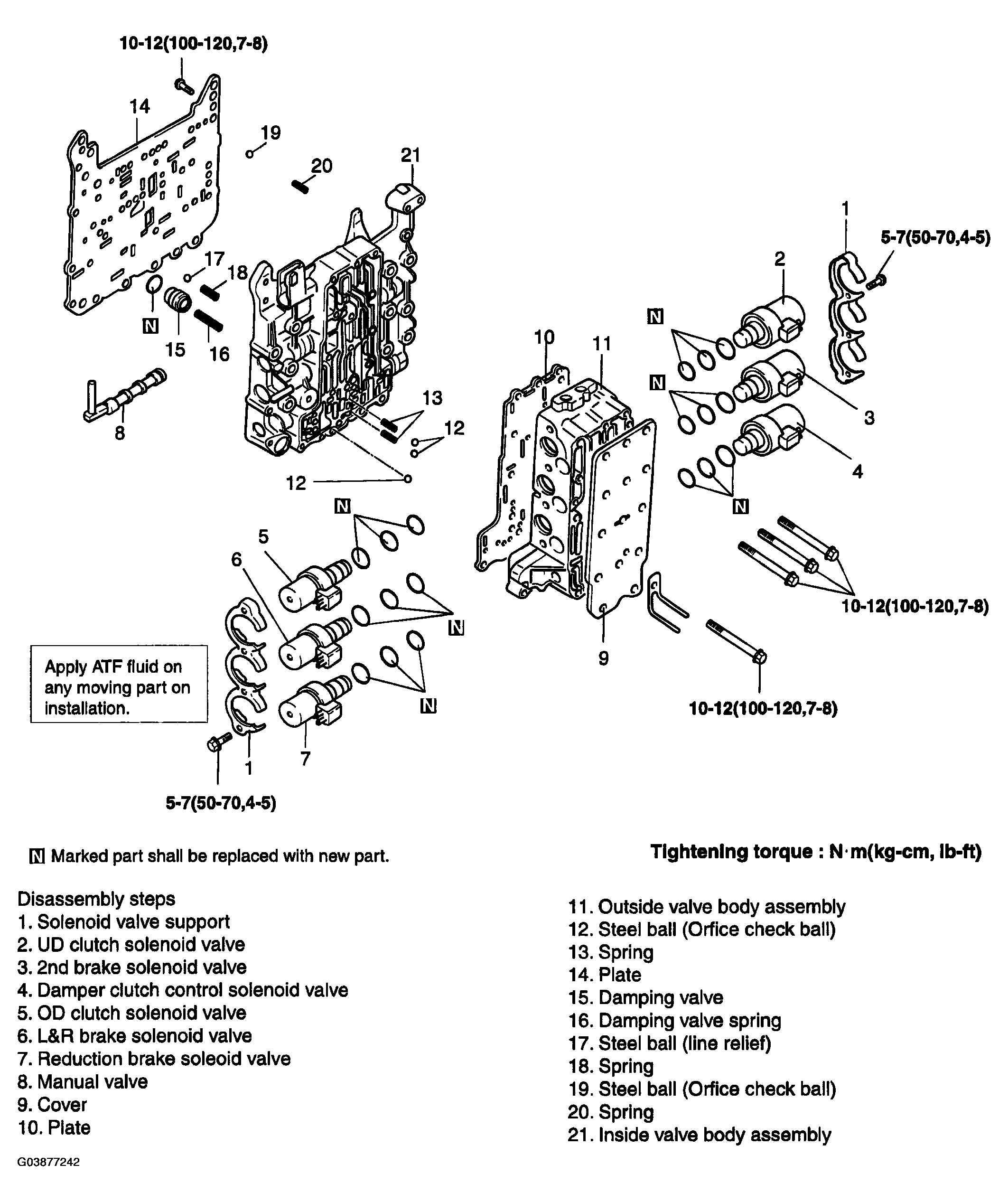

Fig 1: Exploded View Of Valve Body Components(A)
G03877242Courtesy of KIA MOTORS AMERICA, INC.
