Harness Inspection Procedures (TPS)

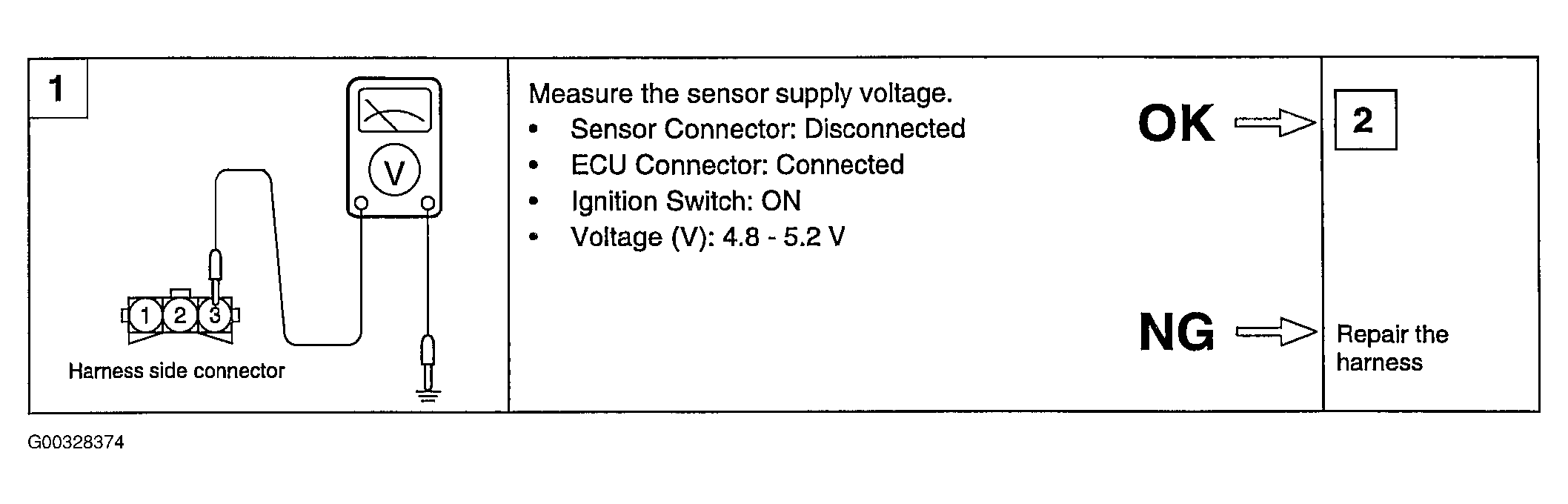

Fig 1: Checking Throttle Position Sensor (TPS) Harness (1 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.

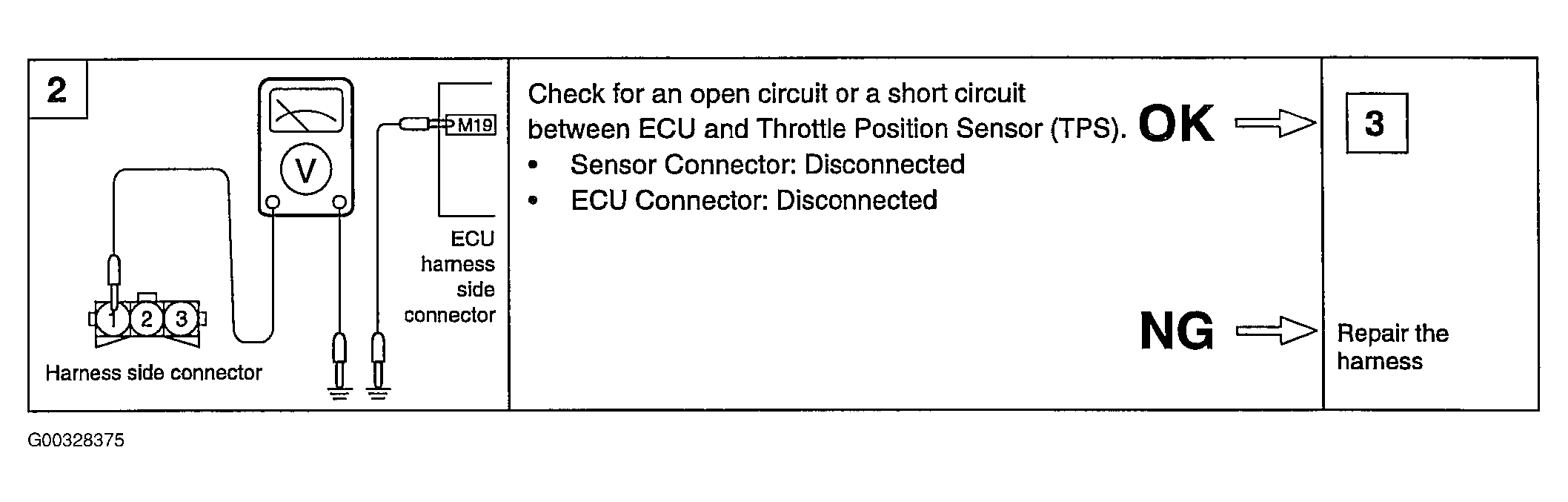

Fig 2: Checking Throttle Position Sensor (TPS) Harness (2 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.

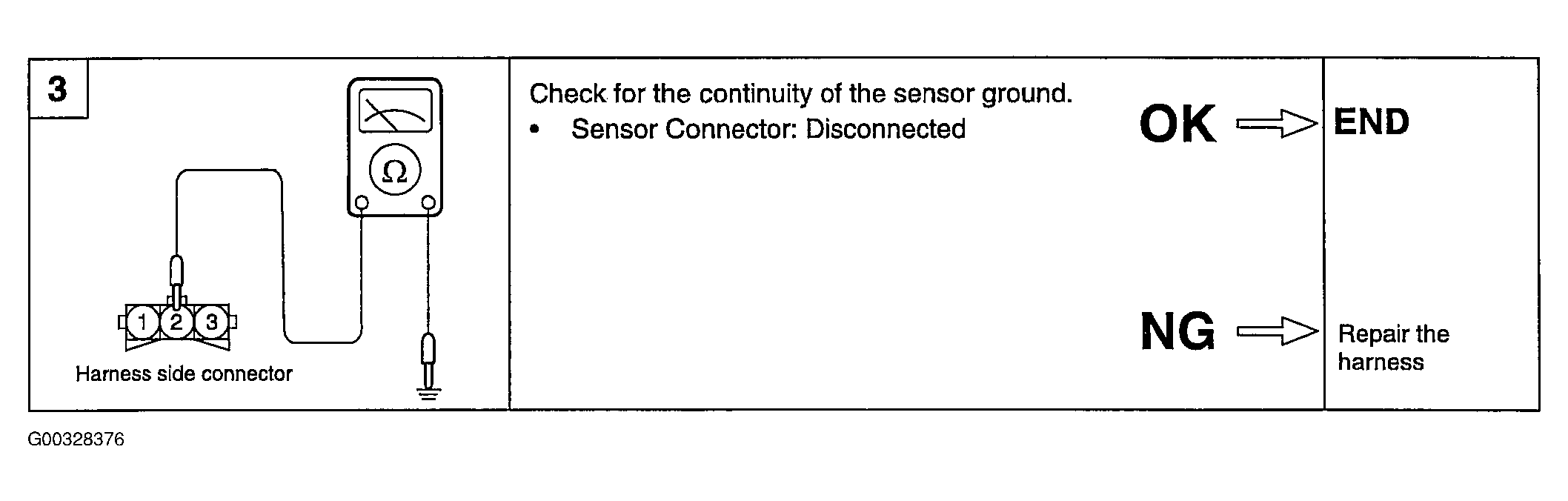

Fig 3: Checking Throttle Position Sensor (TPS) Harness (3 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.
