Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System/Fuel System - 2.4L (A/T)
›
MFI Control System
›
Ignition Coil
›
Circuit Diagram (Ignition Coil)
Circuit Diagram (Ignition Coil)

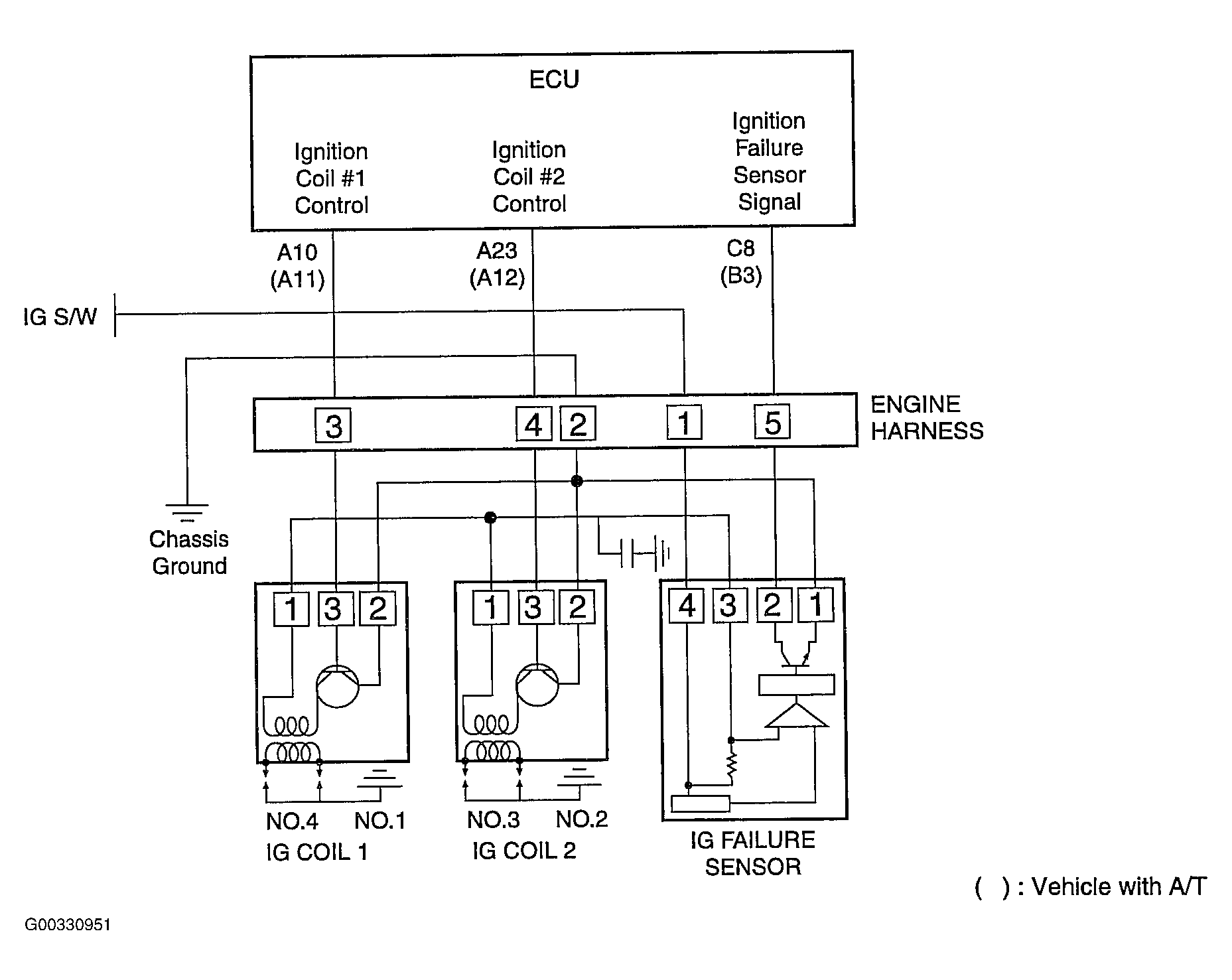

Fig 1: Identifying Ignition Coil Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
