Harness Inspection Procedures (Map)

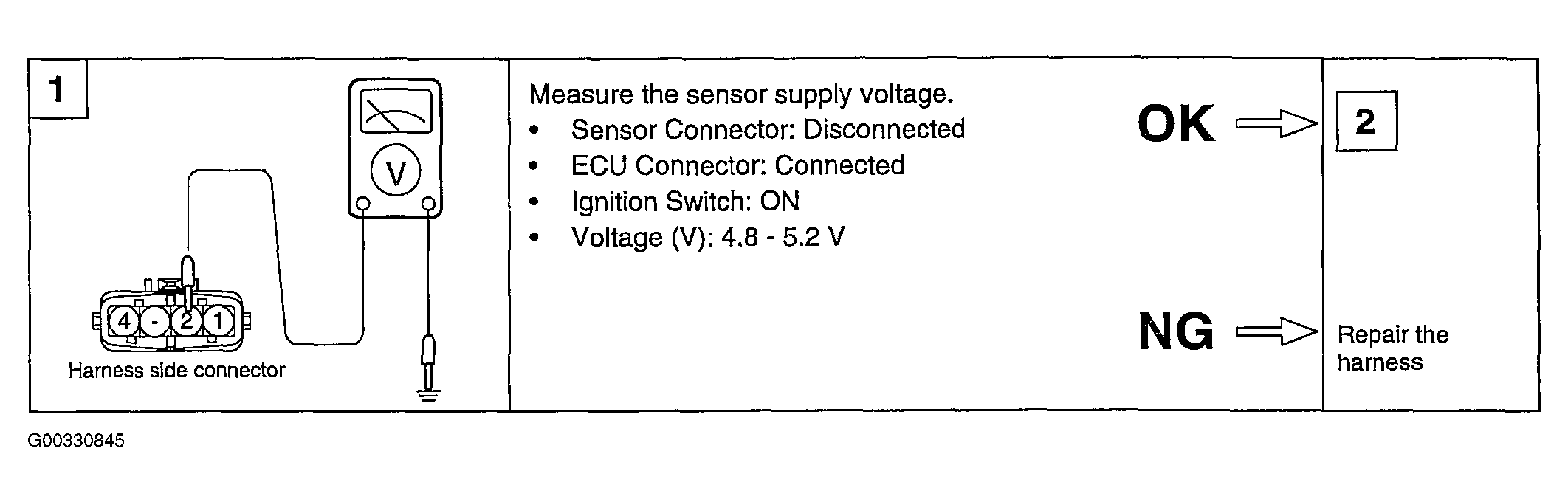

Fig 1: Identifying Manifold Absolute Pressure (MAP) Sensor Harness Inspection Procedures (1 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.

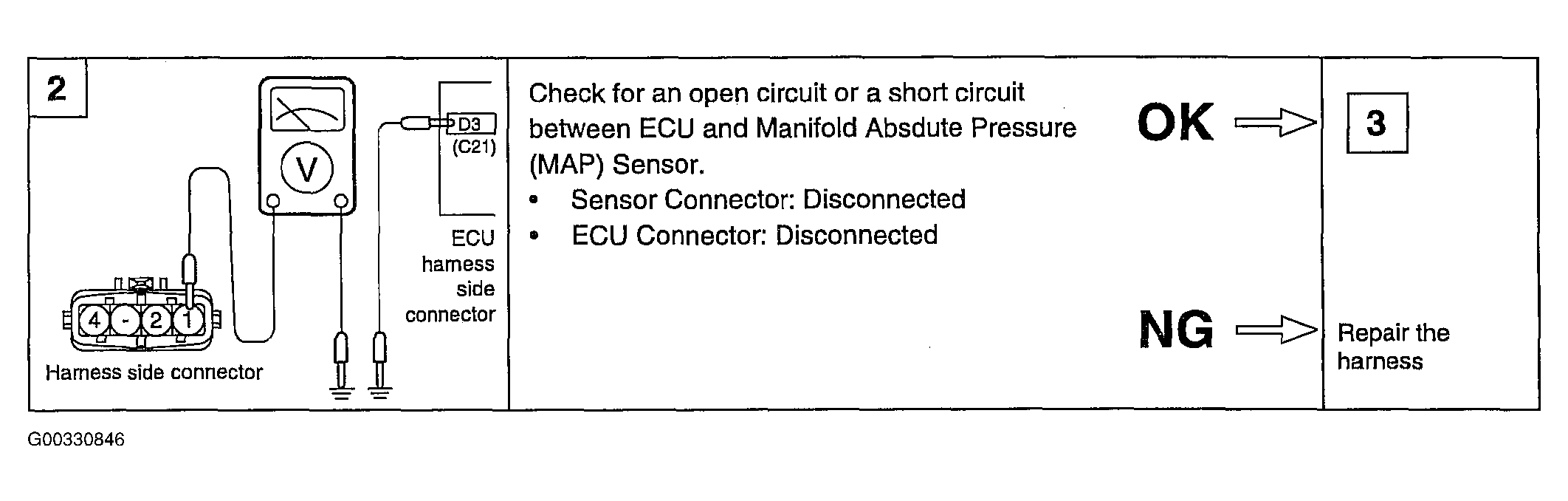

Fig 2: Identifying Manifold Absolute Pressure (MAP) Sensor Harness Inspection Procedures (2 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.

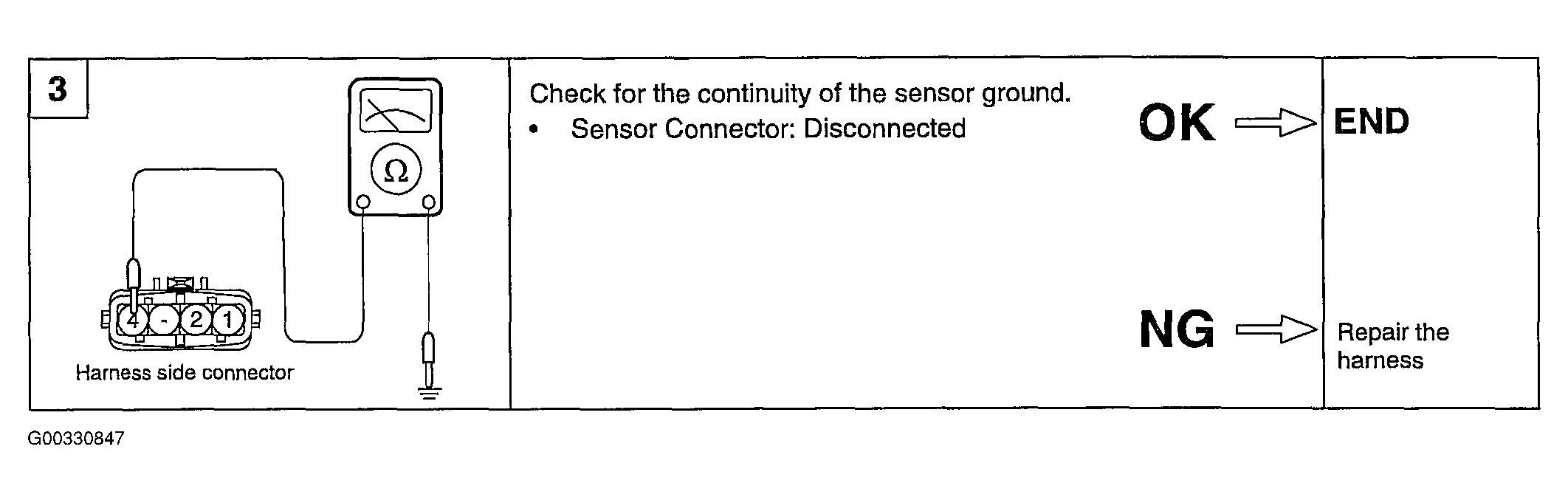

Fig 3: Identifying Manifold Absolute Pressure (MAP) Sensor Harness Inspection Procedures (3 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.
