Anti-Lock Braking System Control Module: Removal

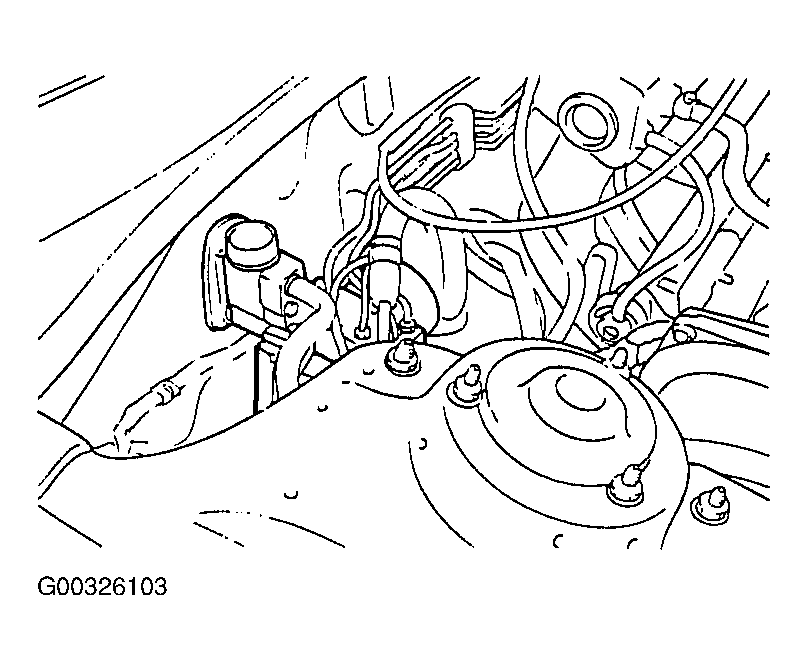

- Disconnect the Hydraulic and Electronic Control Unit (HECU) connector.
Courtesy of KIA MOTORS AMERICA, INC.

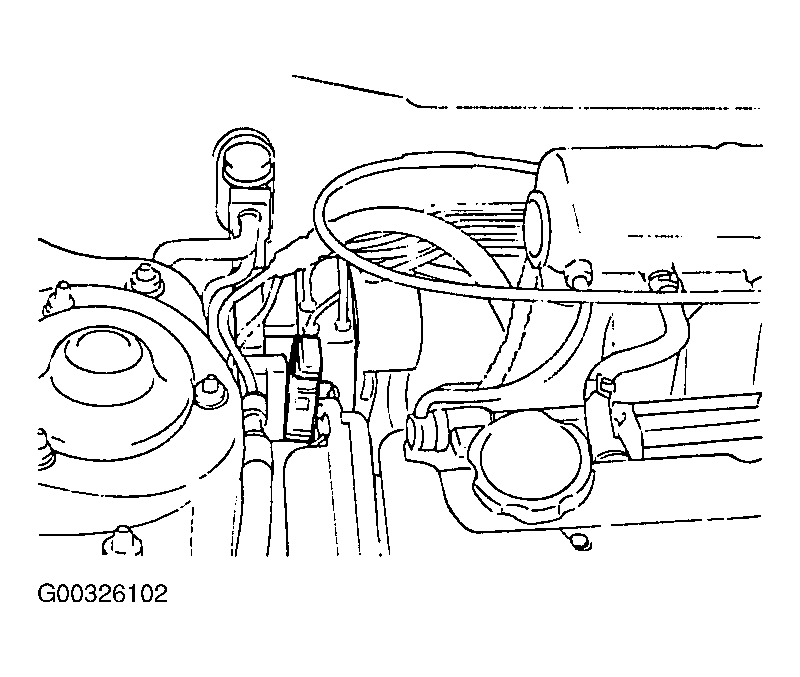

- Disconnect the brake tubes from the HECU.
Courtesy of KIA MOTORS AMERICA, INC.
- Remove the HECU bracket mounting bolt and remove the HECU.
CAUTION:
- Never attempt to disassemble the HECU.
- The HECU must be transported and stored in upright position and with sealed ports. The HECU must not be drained.
- It will cause the HECU to fail if you don't keep.
