TCS Lamp Concept

The ABS/TCS 5.3 system has three lamps: an ABS warning lamp, EBD lamp and TCS multifunction lamp. TCS multifunction lamp will blink during TCS operation and light on indicating system failure and EBD failure.

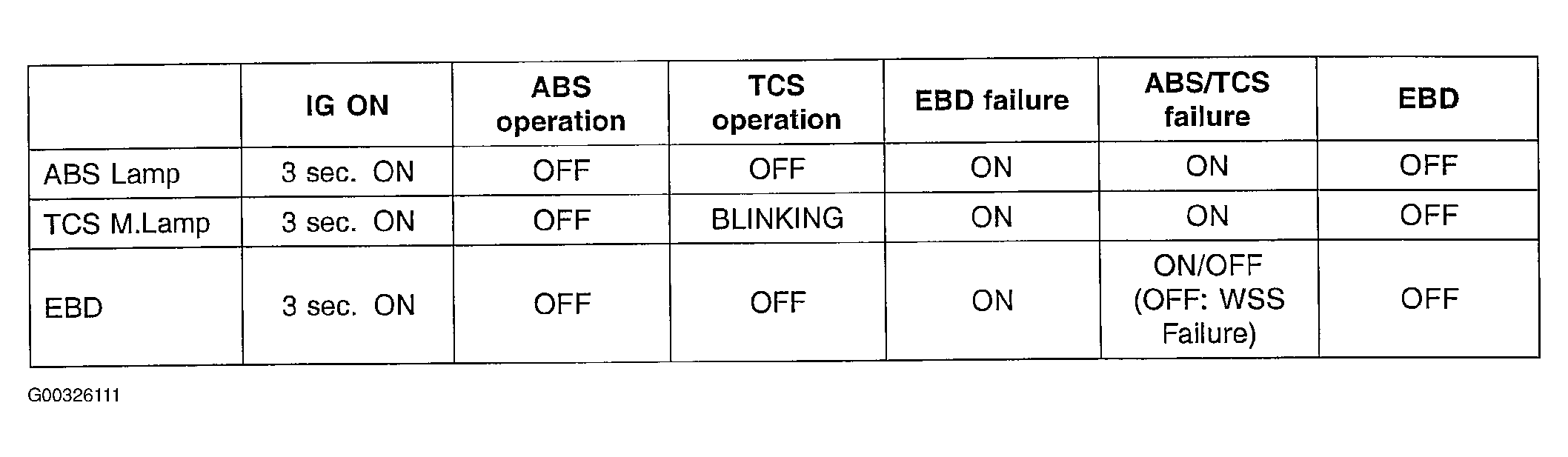

Fig 1: Identifying Traction Control System (TCS) Light Function

Courtesy of KIA MOTORS AMERICA, INC.
