Home › Kia › 2005 › Optima EX, 2.4 6 › Repair and Diagnosis › Engine Mechanical › Lubrication System › 2.4L 4-Cylinder Engine › Main Moving System › Camshaft › Components

Main Moving System: Camshaft: Components

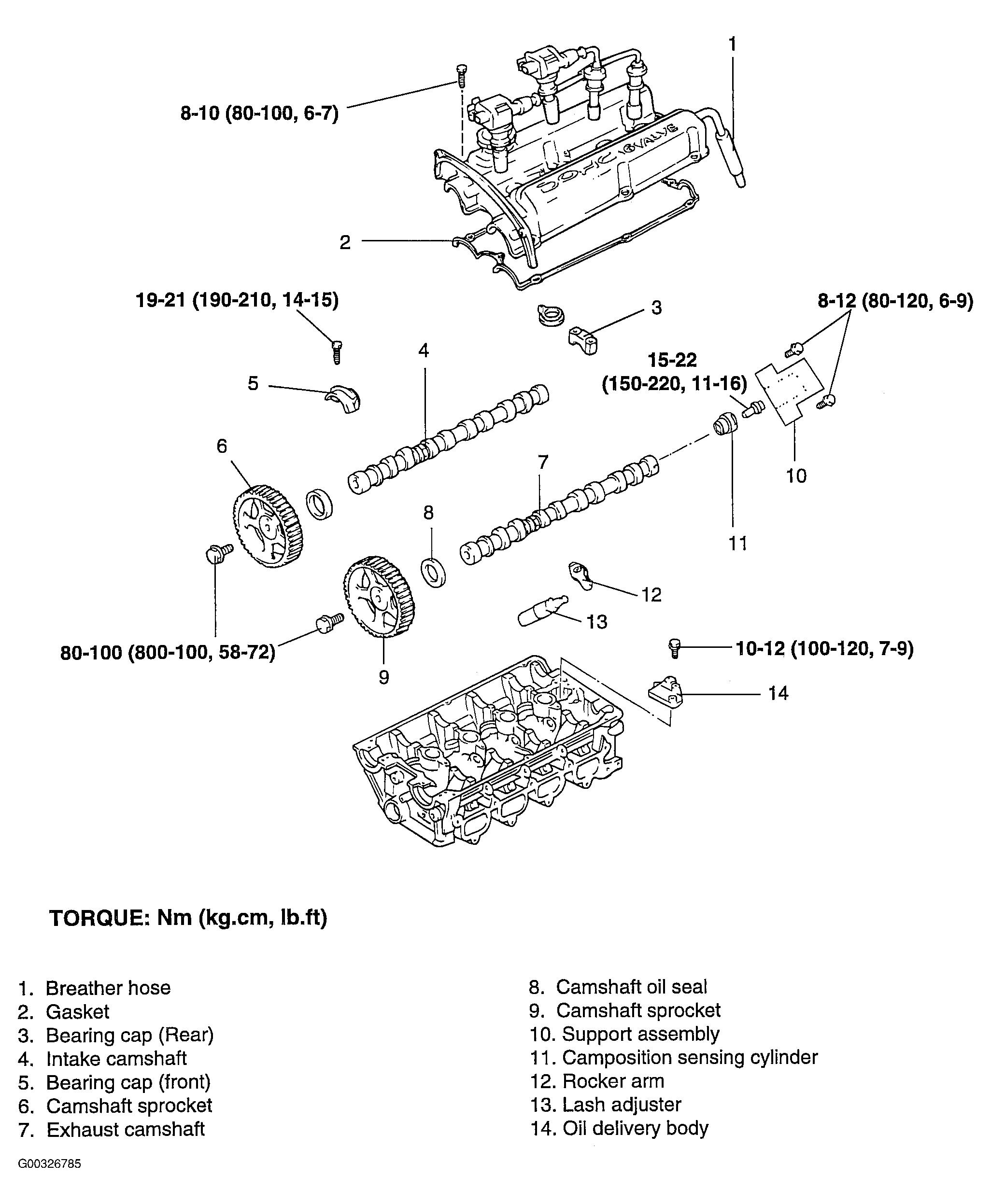

Fig 1: Exploded View Of Main Moving System
G00326785Courtesy of KIA MOTORS AMERICA, INC.
