Counter Balance Shaft: Components

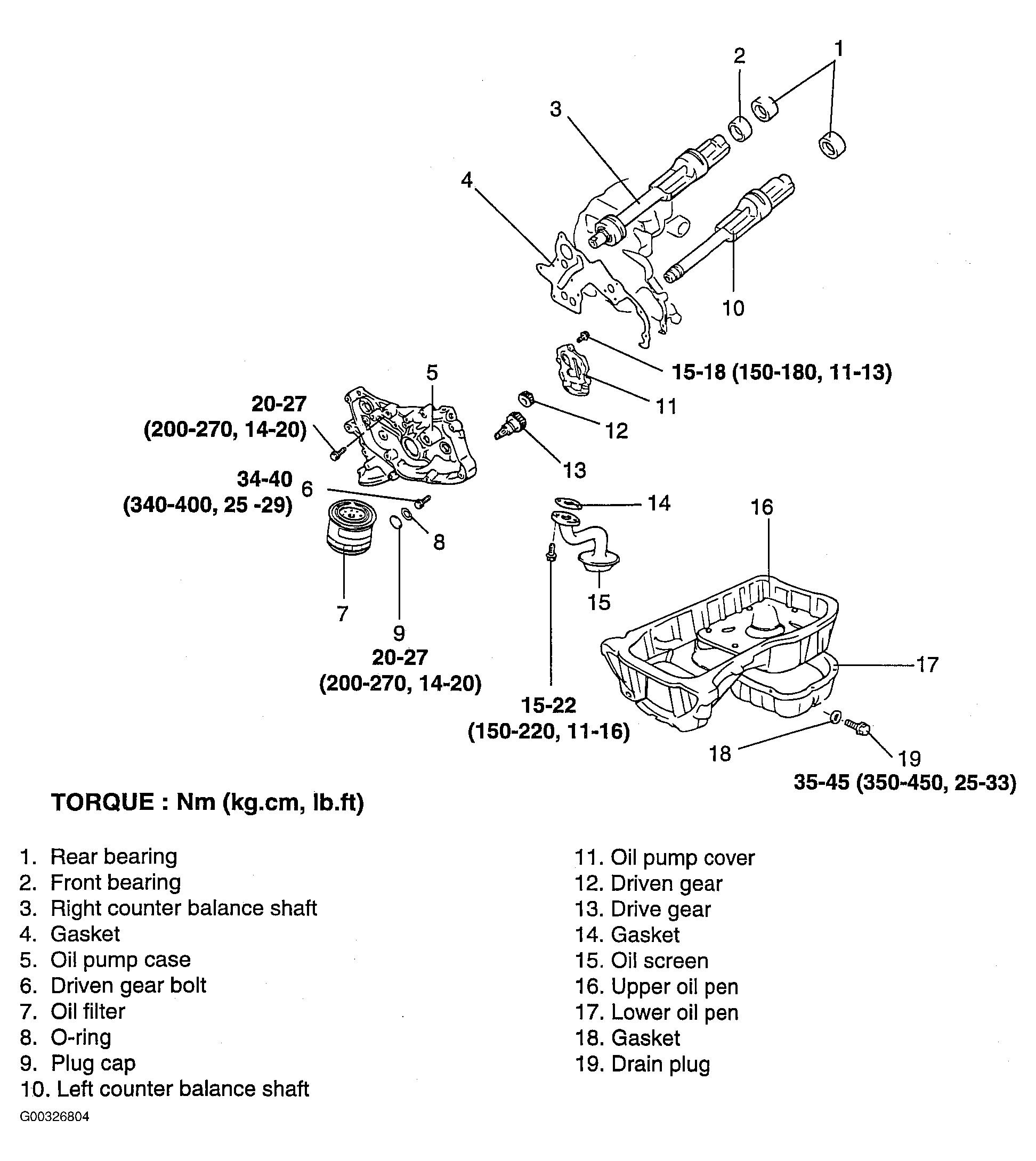

Fig 1: Exploded View Of Counter Balance Shaft
G00326804Courtesy of KIA MOTORS AMERICA, INC.
