Main Moving System: Piston: Components

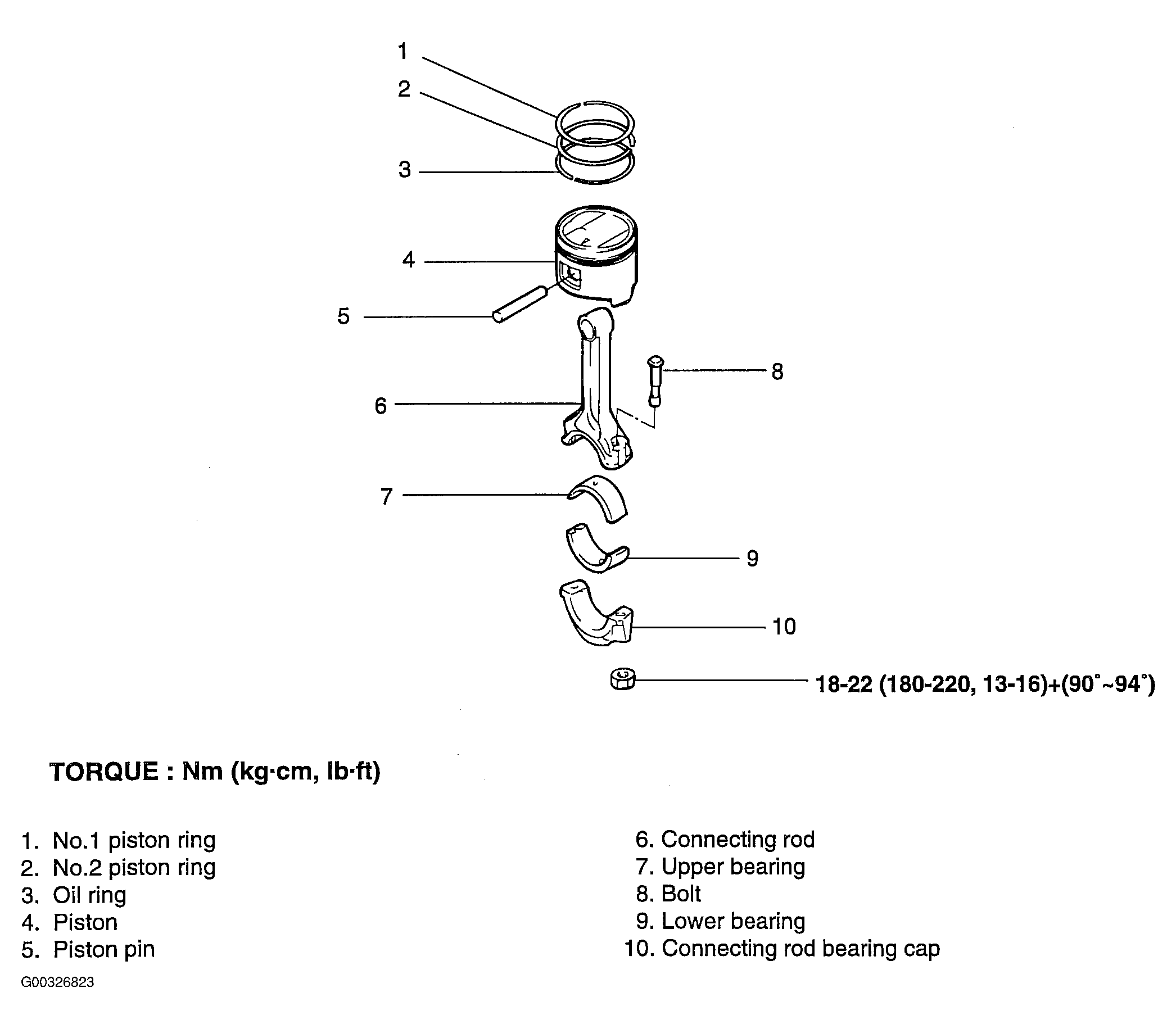

Fig 1: Exploded View Of Piston

G00326823

Courtesy of KIA MOTORS AMERICA, INC.
