Timing Belt: Components

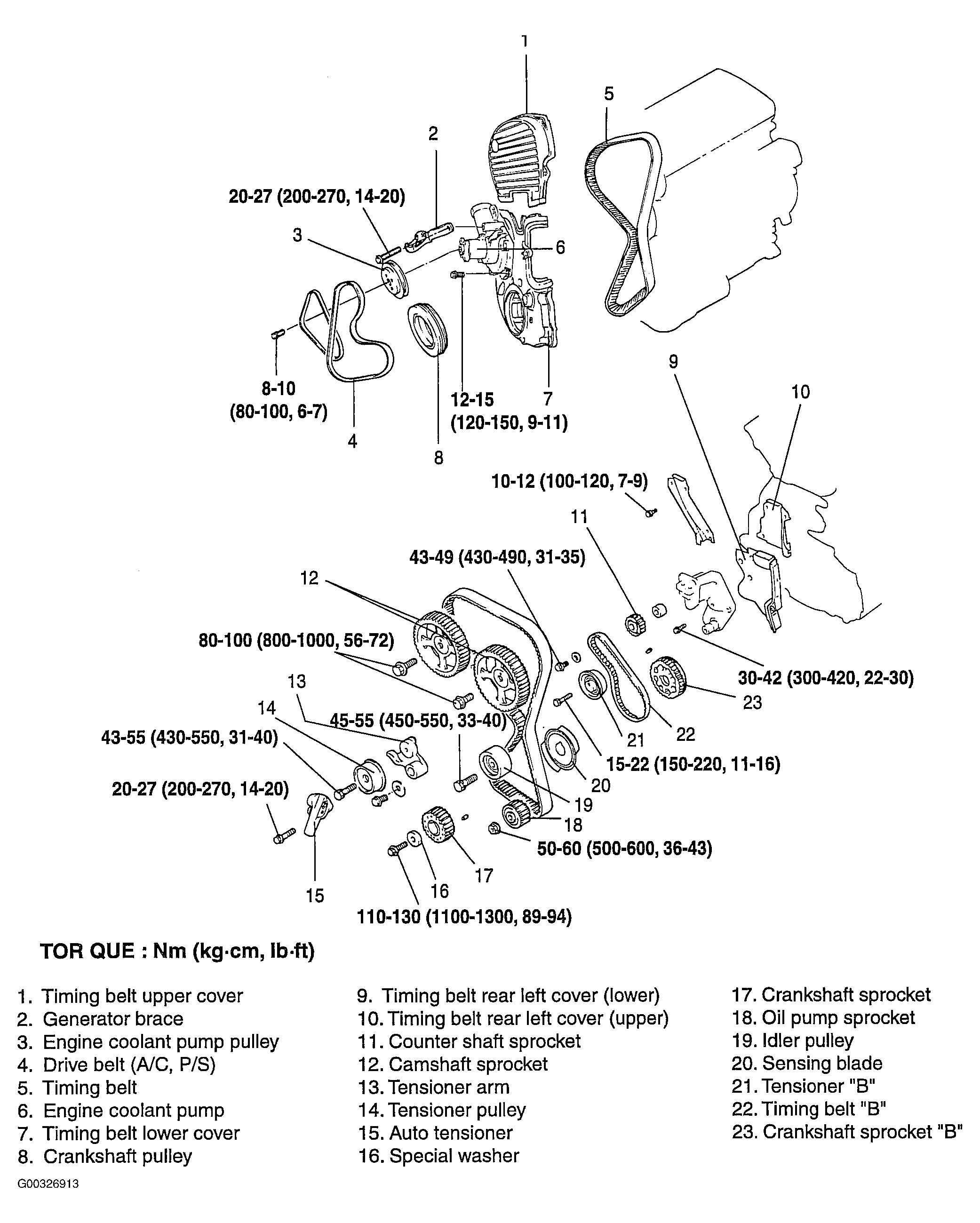

Fig 1: Exploded View Of Timing Belt
G00326913Courtesy of KIA MOTORS AMERICA, INC.
