Engine Control System/Fuel System - 2.4L (A/T)
›
Fuel System
›
Fuel Line And Vapor Line
›
Components
Fuel Line And Vapor Line: Components

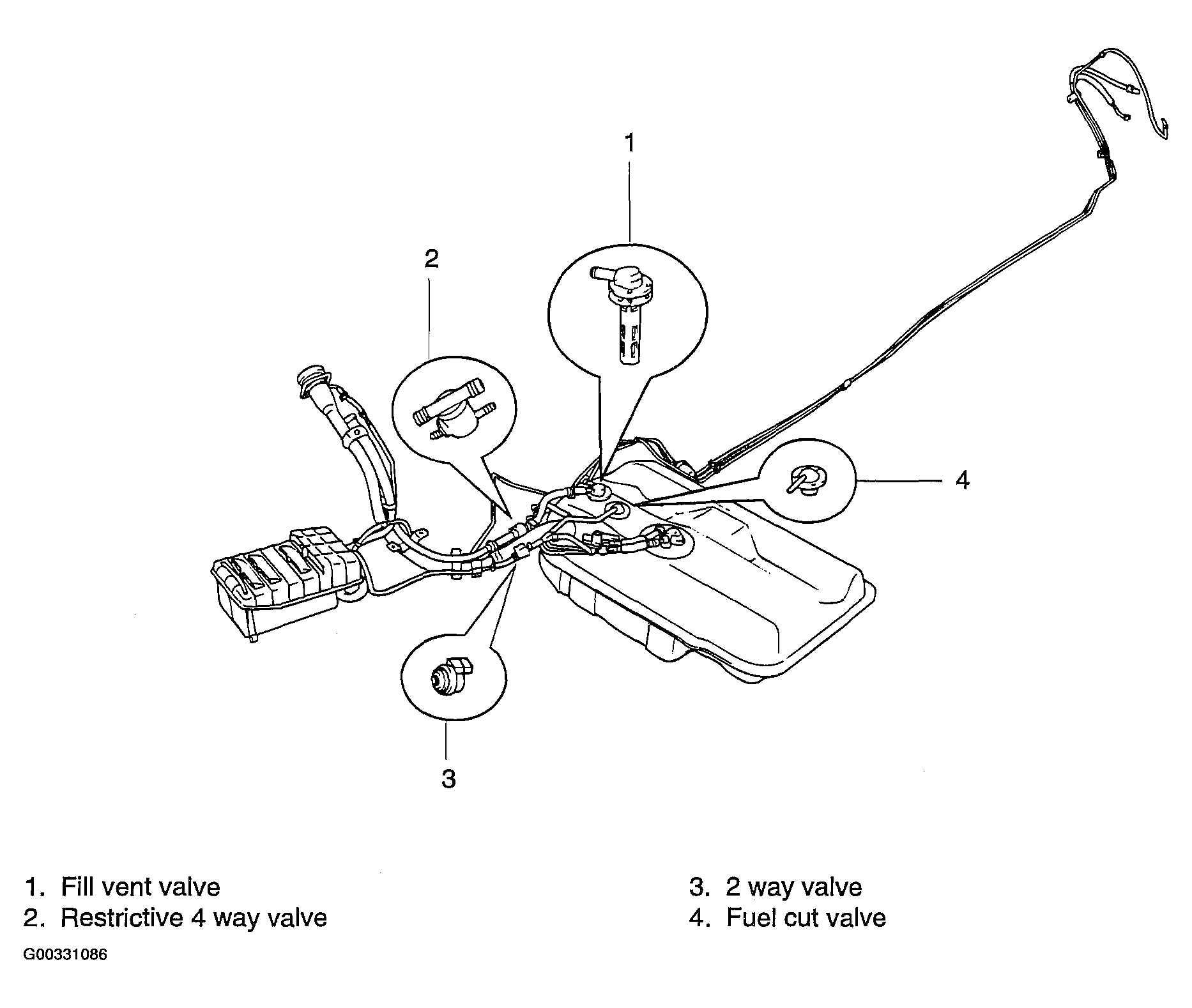

Fig 1: Removing Fuel Line & Vapor Line Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
