All Other Symptoms

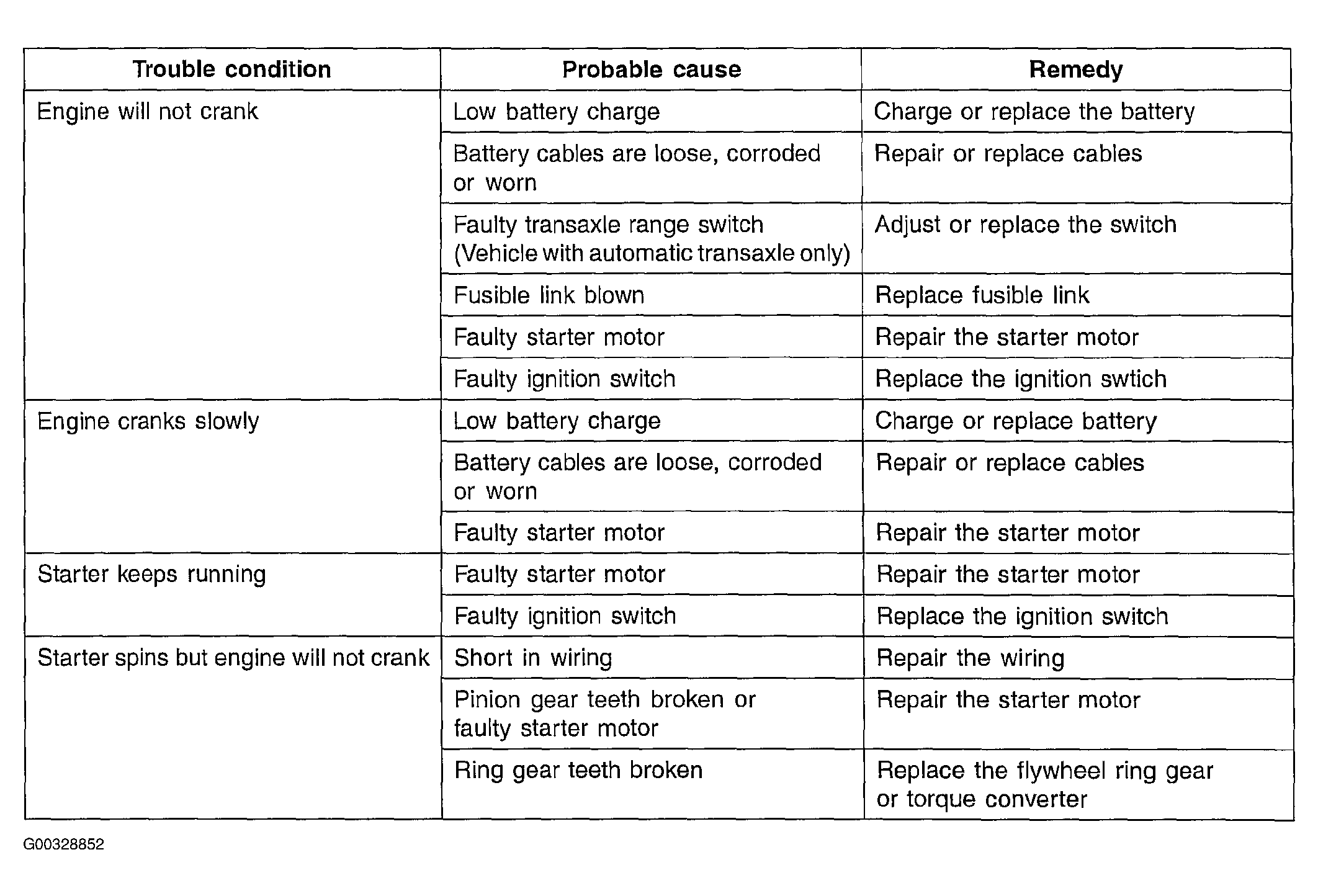

Fig 1: Identifying Symptom Diagnosis Chart (All Other Symptoms) (1 Of 2)
G00328852Courtesy of KIA MOTORS AMERICA, INC.

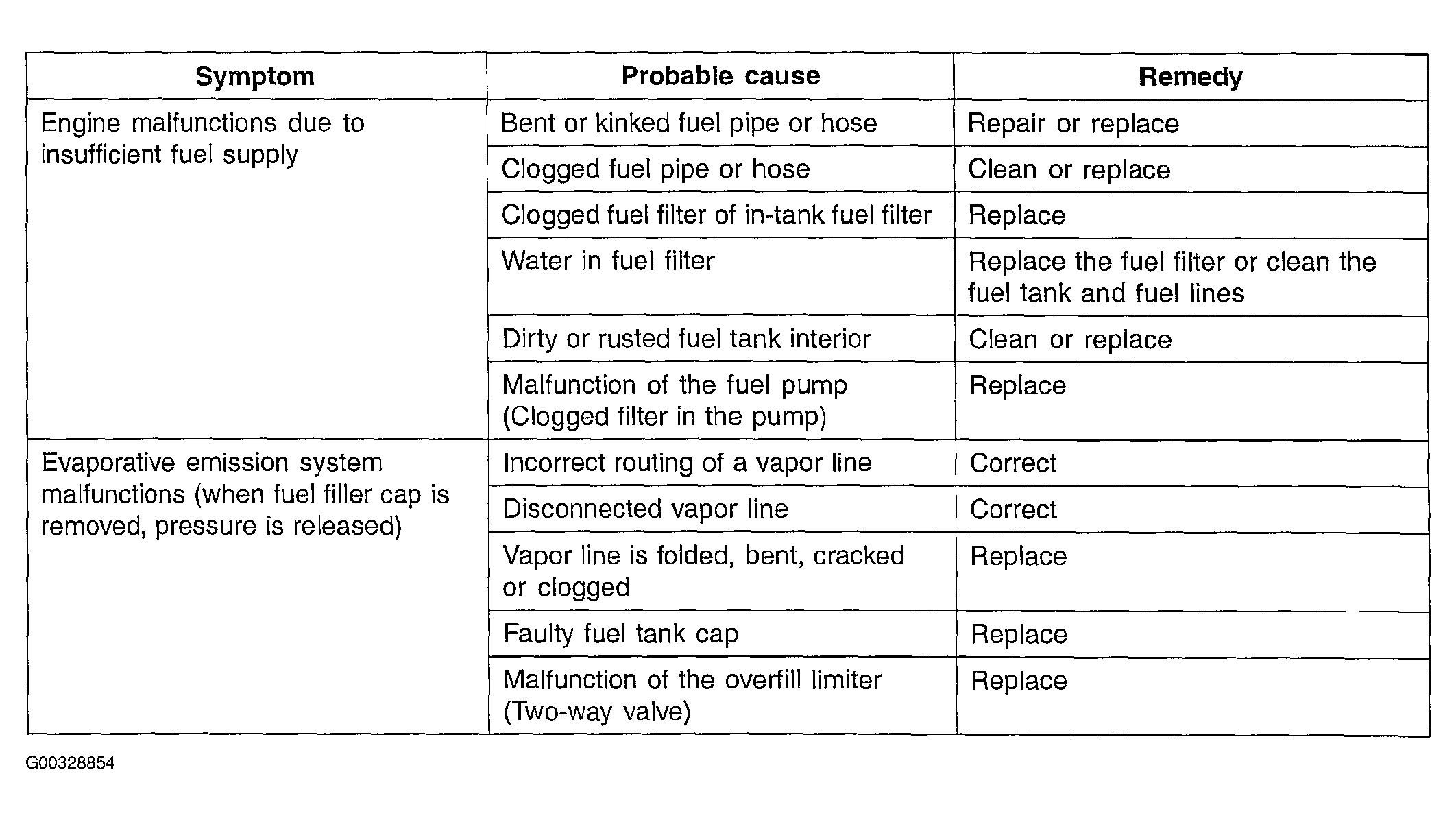

Fig 2: Identifying Symptom Diagnosis Chart (All Other Symptoms) (2 Of 2)
G00328854Courtesy of KIA MOTORS AMERICA, INC.
