Communication With Scan Tool Is Not Possible (Communication With All Systems Is Not Possible)

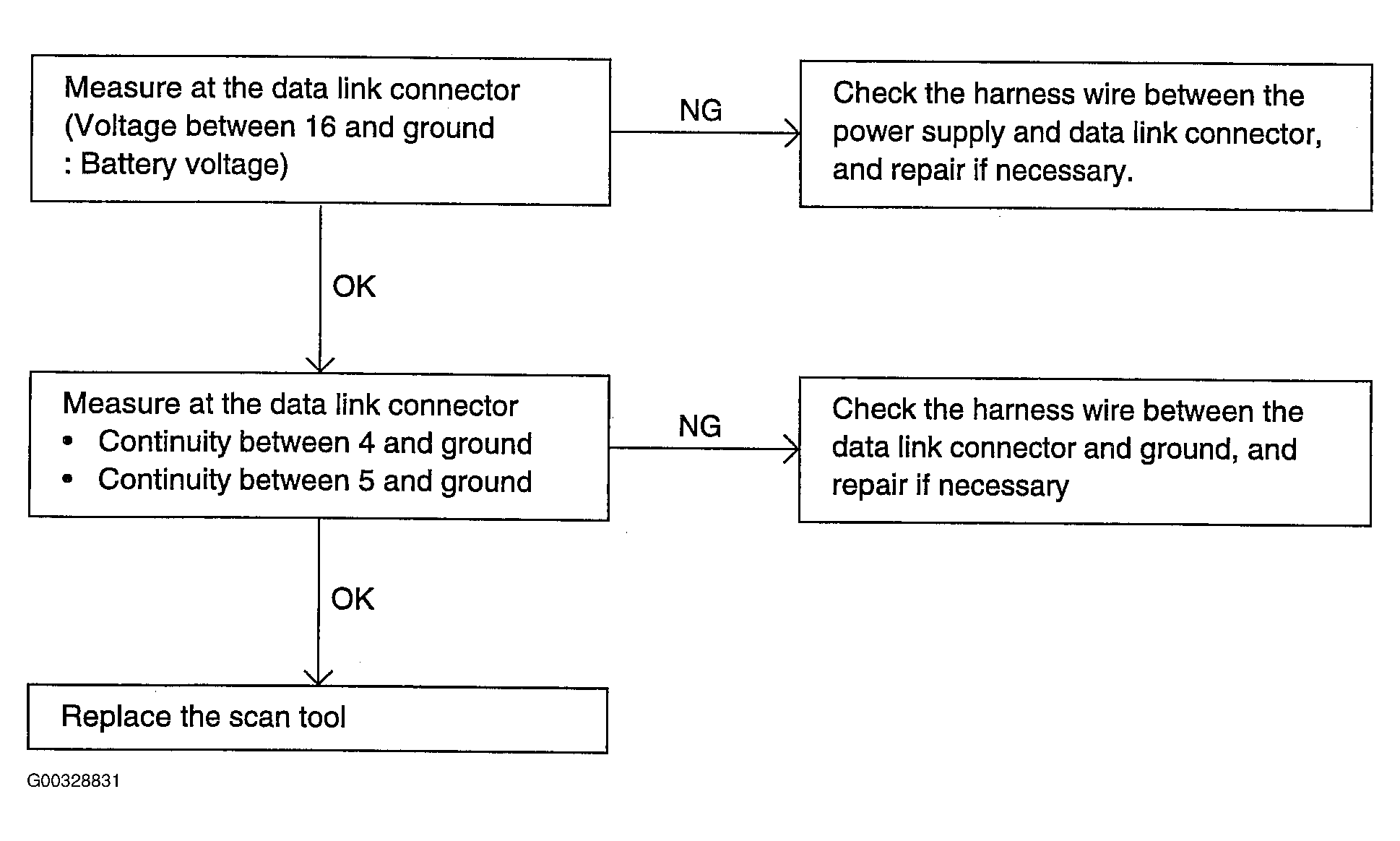

Fig 1: Identifying Communication With Scan Tool Is Not Possible (Communication With All Systems Is Not Possible) Symptom Diagnosis Flow Chart
G00328831Courtesy of KIA MOTORS AMERICA, INC.
