Difficult To Start (Engine Cranks)

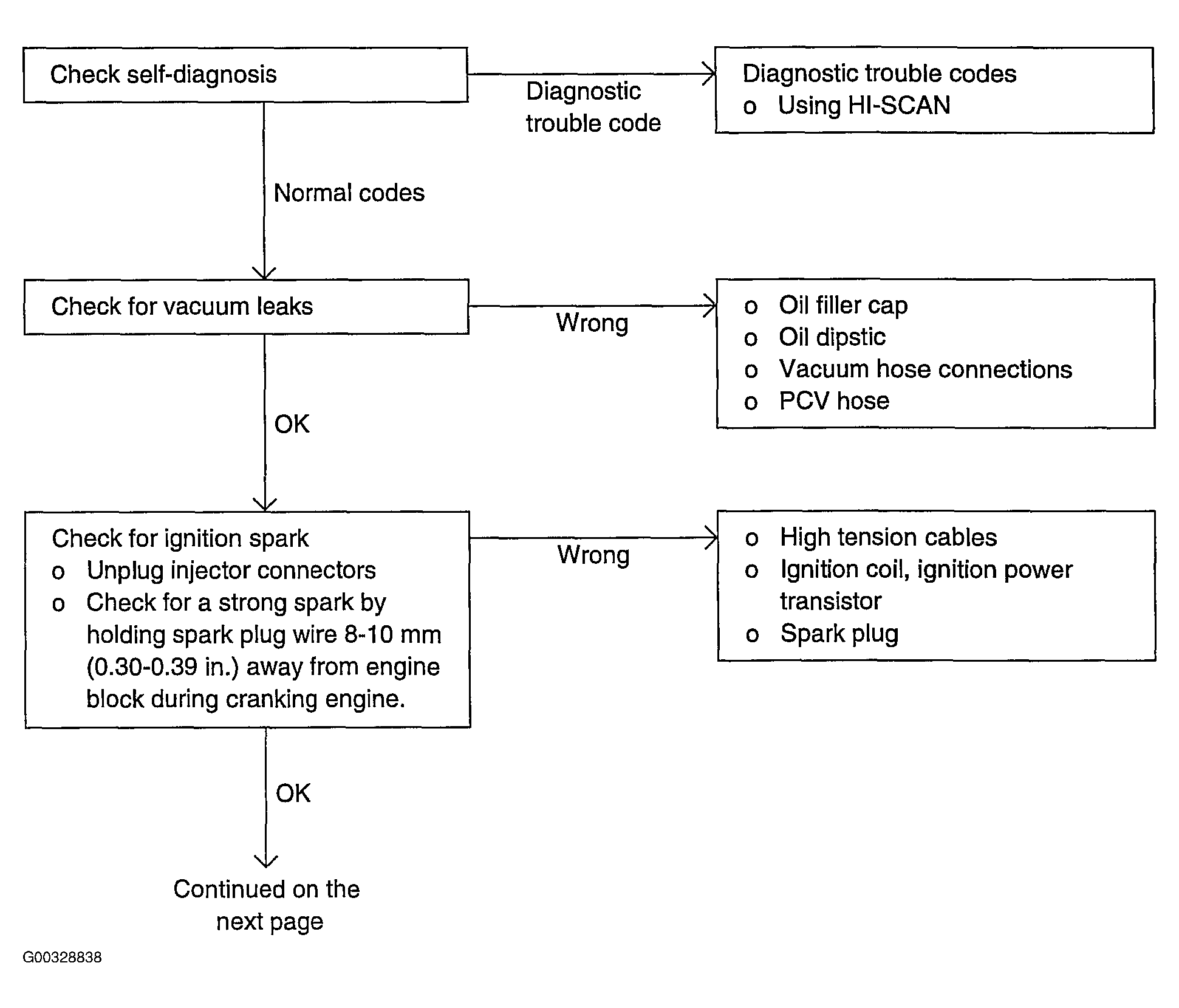

Fig 1: Identifying Difficult To Start (Engine Cranks) Symptom Diagnosis Flow Chart (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

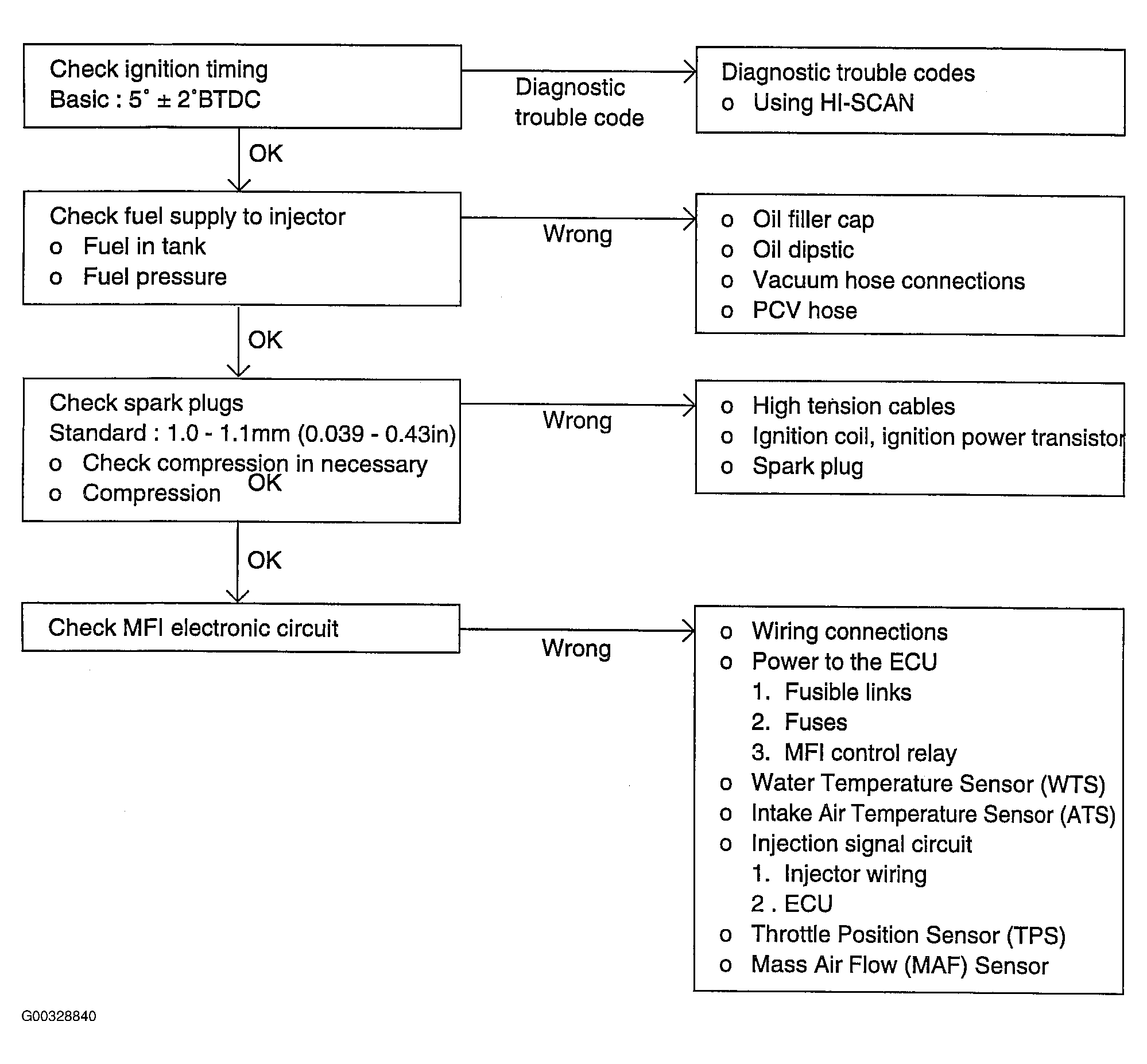

Fig 2: Identifying Difficult To Start (Engine Cranks) Symptom Diagnosis Flow Chart (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
