Engine Hesitates Or Accelerates Poorly

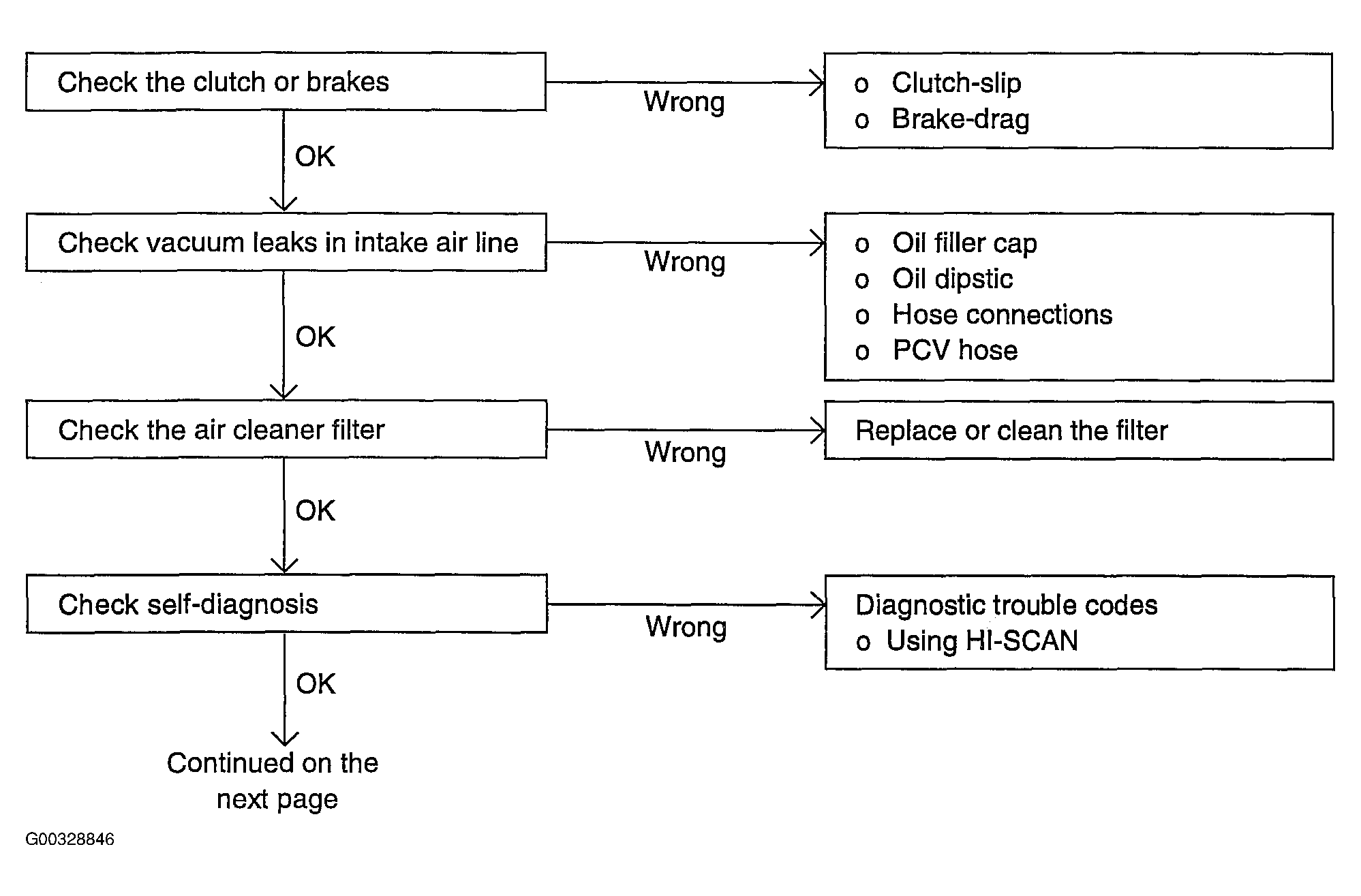

Fig 1: Identifying Engine Hesitates Or Accelerates Poorly Symptom Diagnosis Flow Chart (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

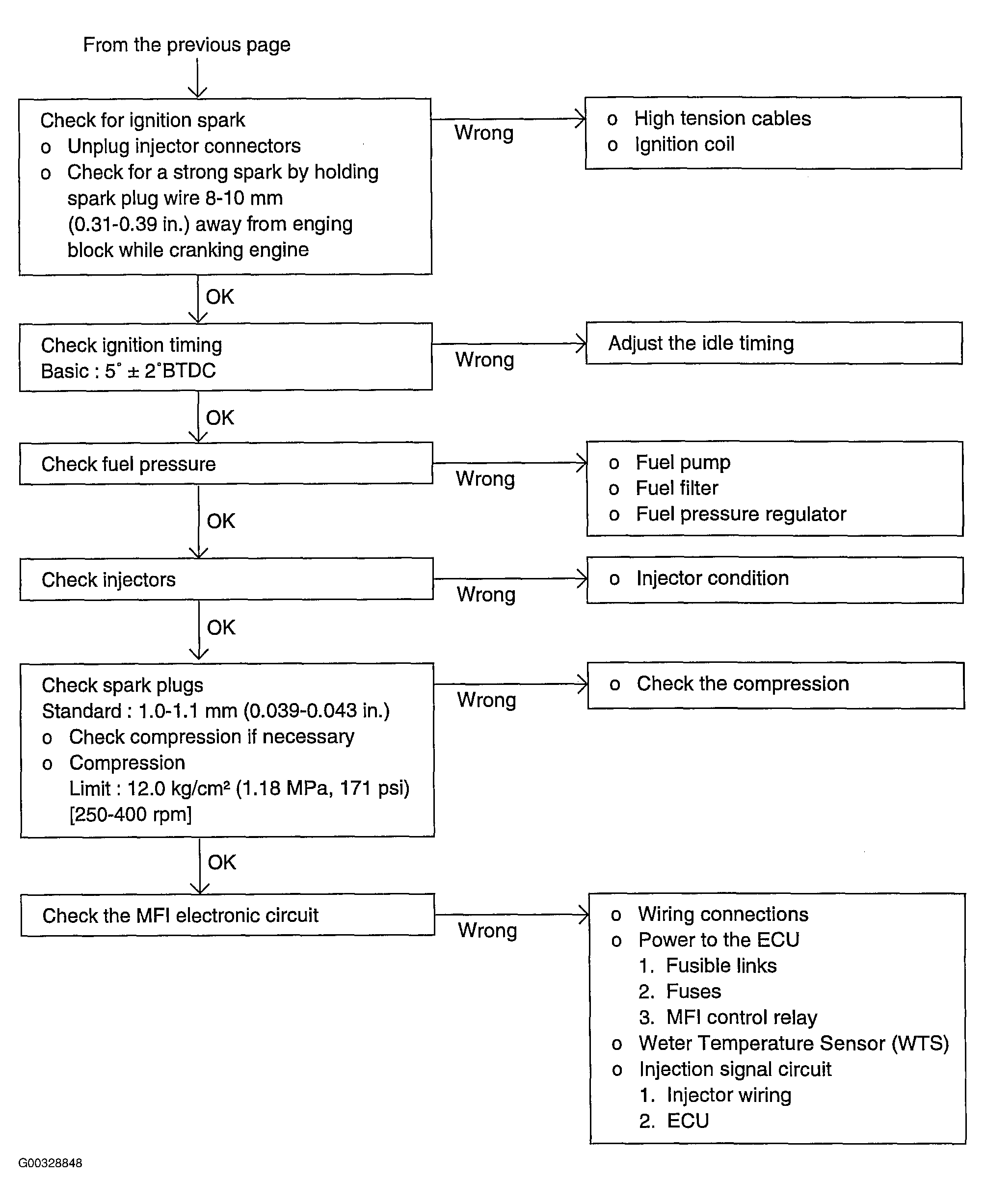

Fig 2: Identifying Engine Hesitates Or Accelerates Poorly Symptom Diagnosis Flow Chart (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
