Symptom Diagnosis: Notes

NOTE: The numbers in the columns in the following illustrations indicate the proper troubleshooting sequence to be followed.

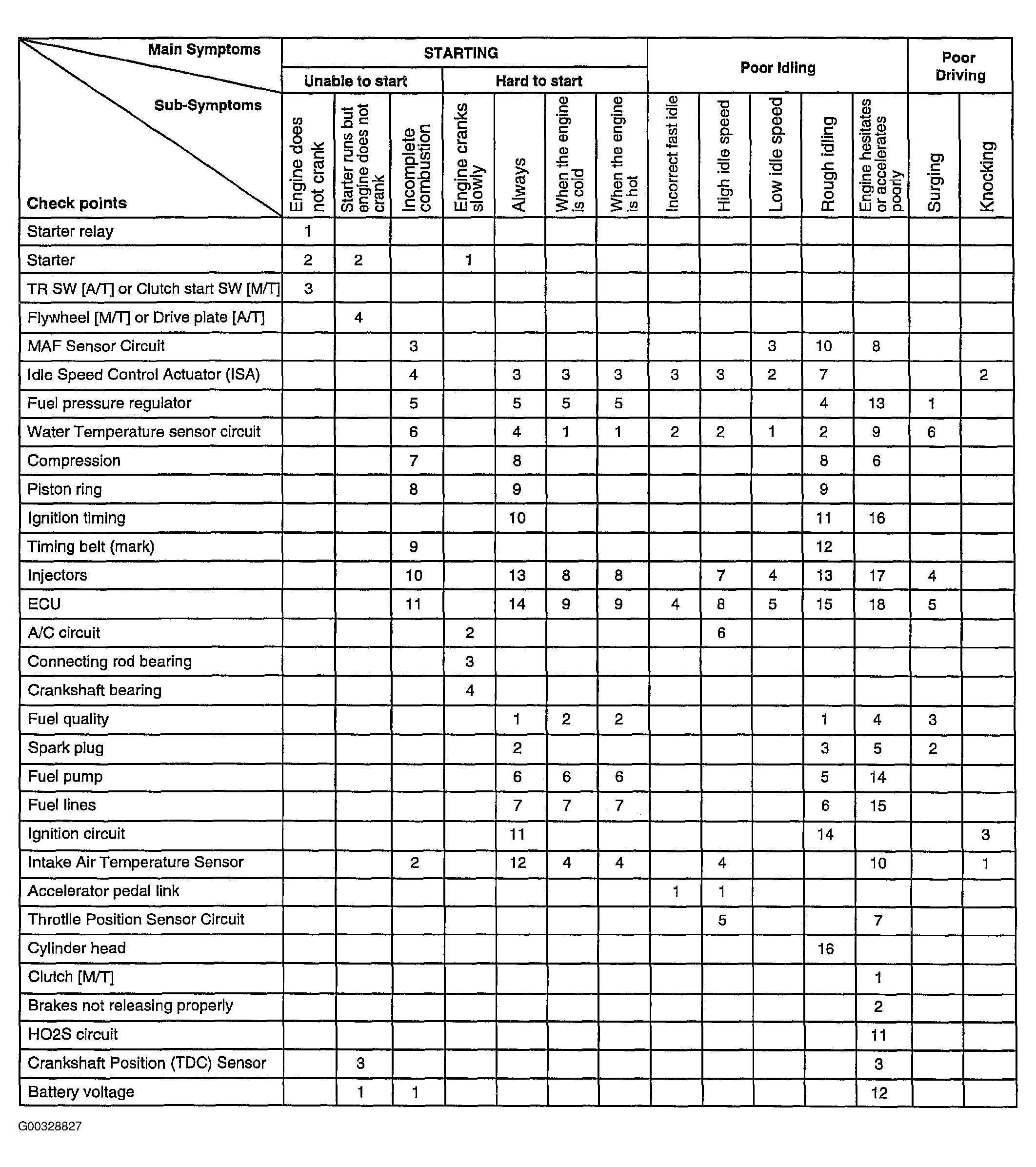

Fig 1: Identifying Symptom Diagnosis Chart (1 Of 2)
G00328827Courtesy of KIA MOTORS AMERICA, INC.

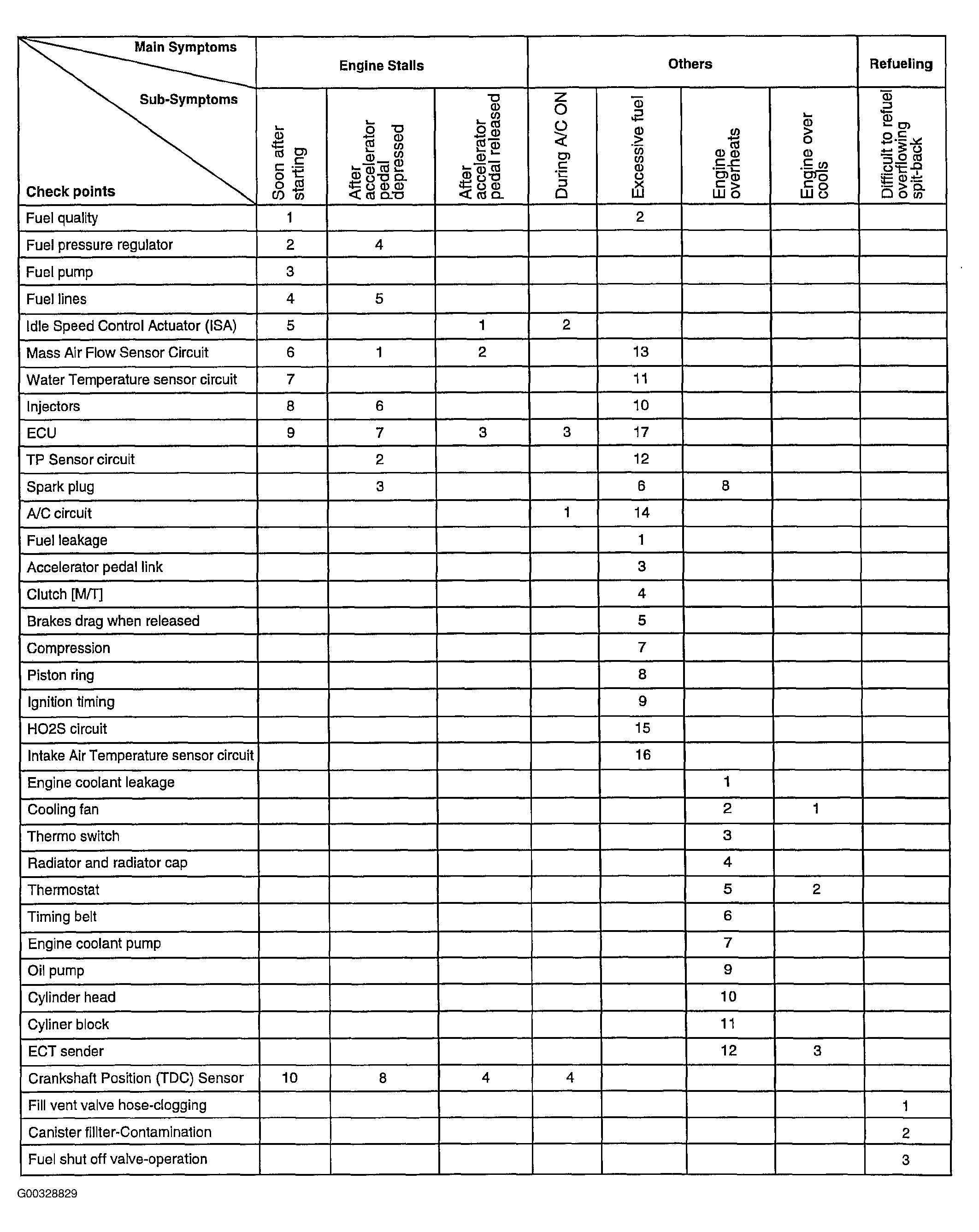

Fig 2: Identifying Symptom Diagnosis Chart (2 Of 2)
G00328829Courtesy of KIA MOTORS AMERICA, INC.
