Engine Control System/Fuel System - 2.4L (A/T)
›
General
›
Specifications
Engine Control System/Fuel System - 2.4L (A/T): General: Specifications

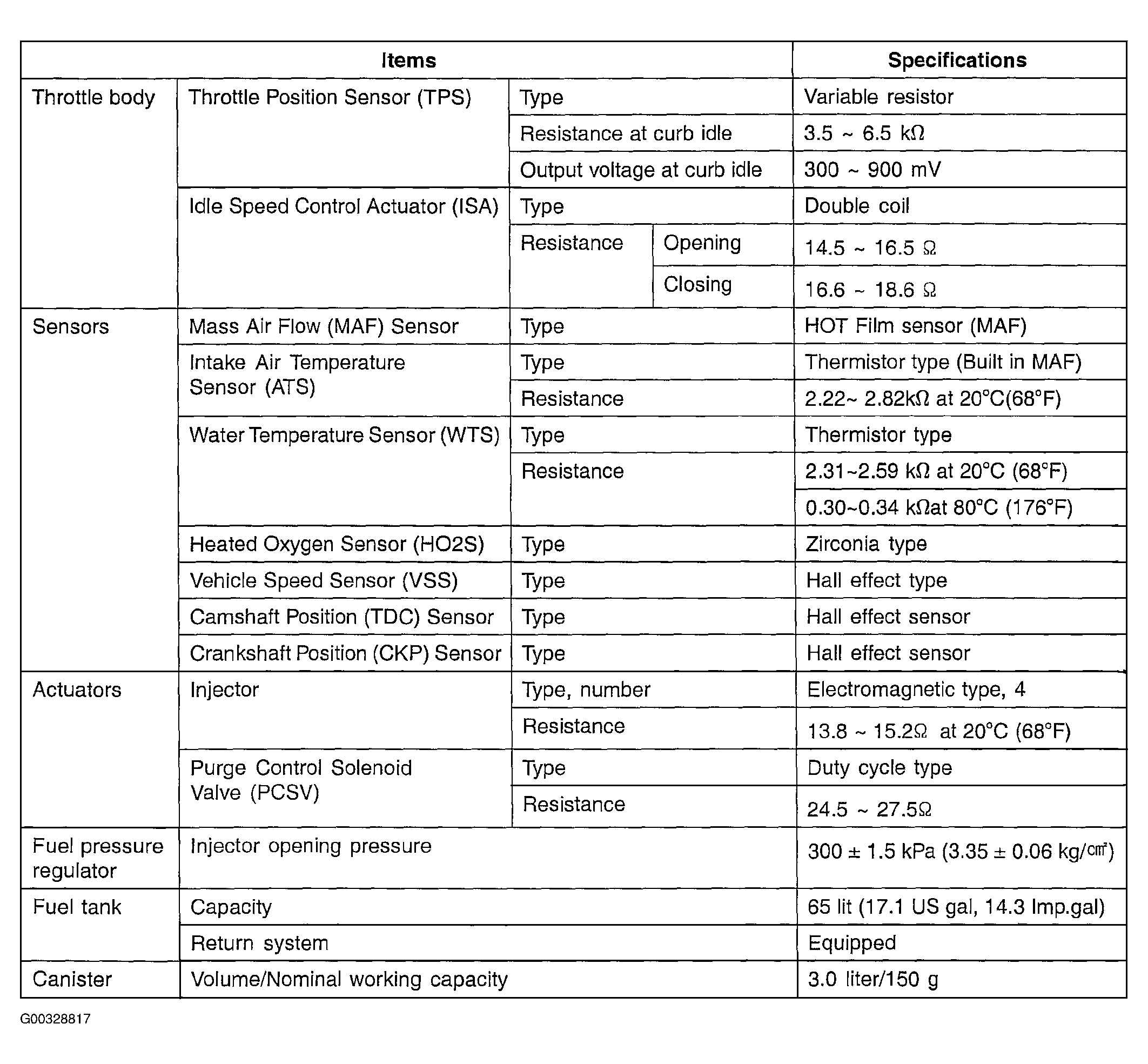

Fig 1: Identifying Fuel System Component Specifications
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
