Engine Control System/Fuel System - 2.4L (A/T)
›
MFI Control System
›
Camshaft Position (TDC) Sensor
›
Harness Inspection Procedures (TDC)
Harness Inspection Procedures (TDC)

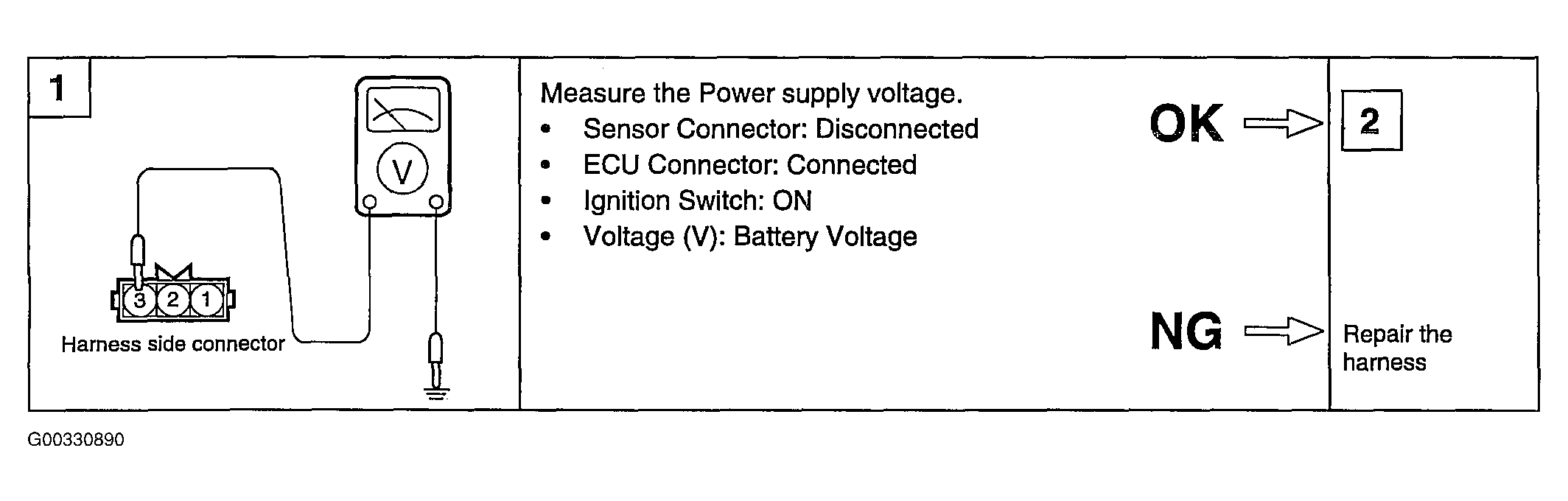

Fig 1: Identifying Camshaft Position Sensor (TDC) Harness Inspection Procedures (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

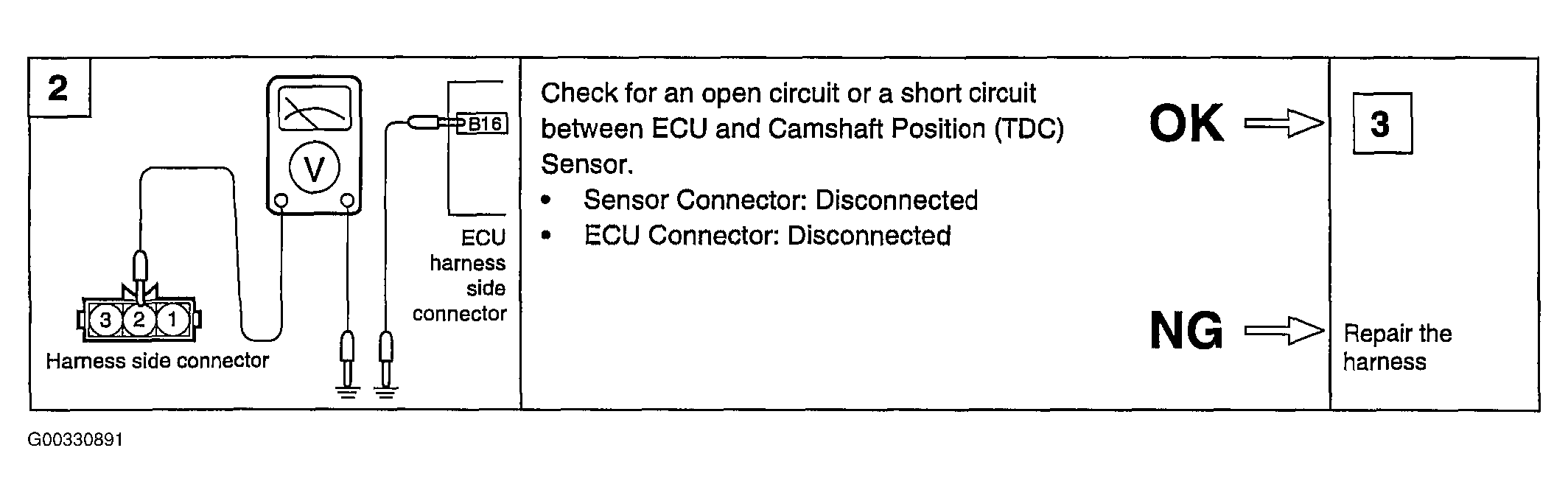

Fig 2: Identifying Camshaft Position Sensor (TDC) Harness Inspection Procedures (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

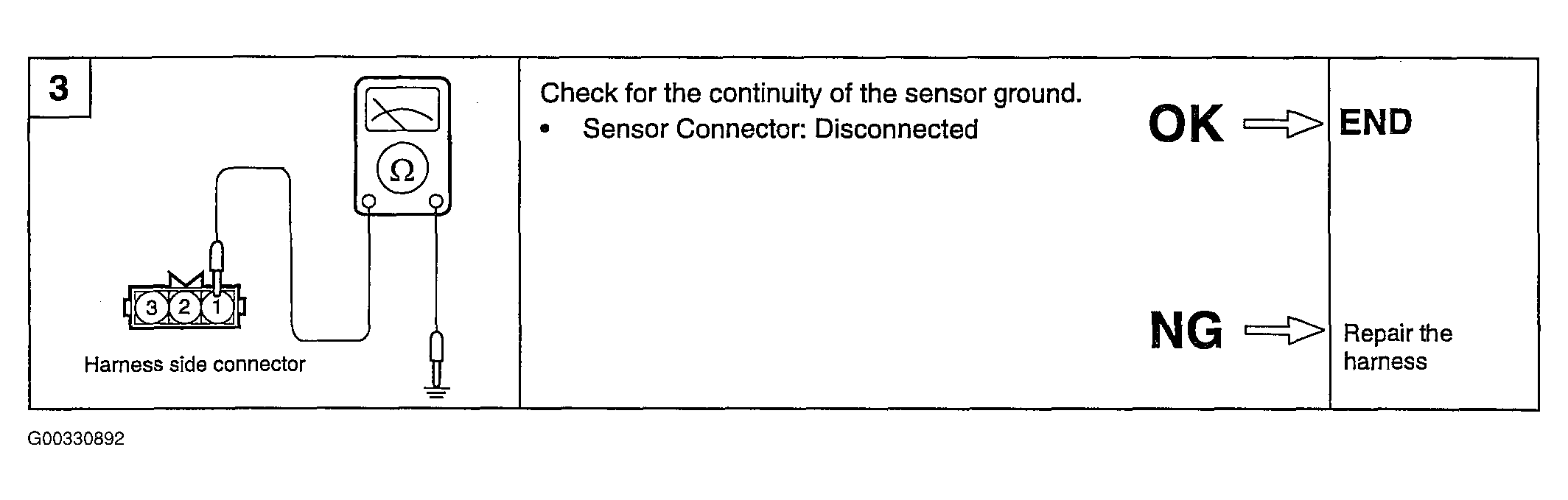

Fig 3: Identifying Camshaft Position Sensor (TDC) Harness Inspection Procedures (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
