Connector (A)

NOTE: * For the vehicles with immobilizer

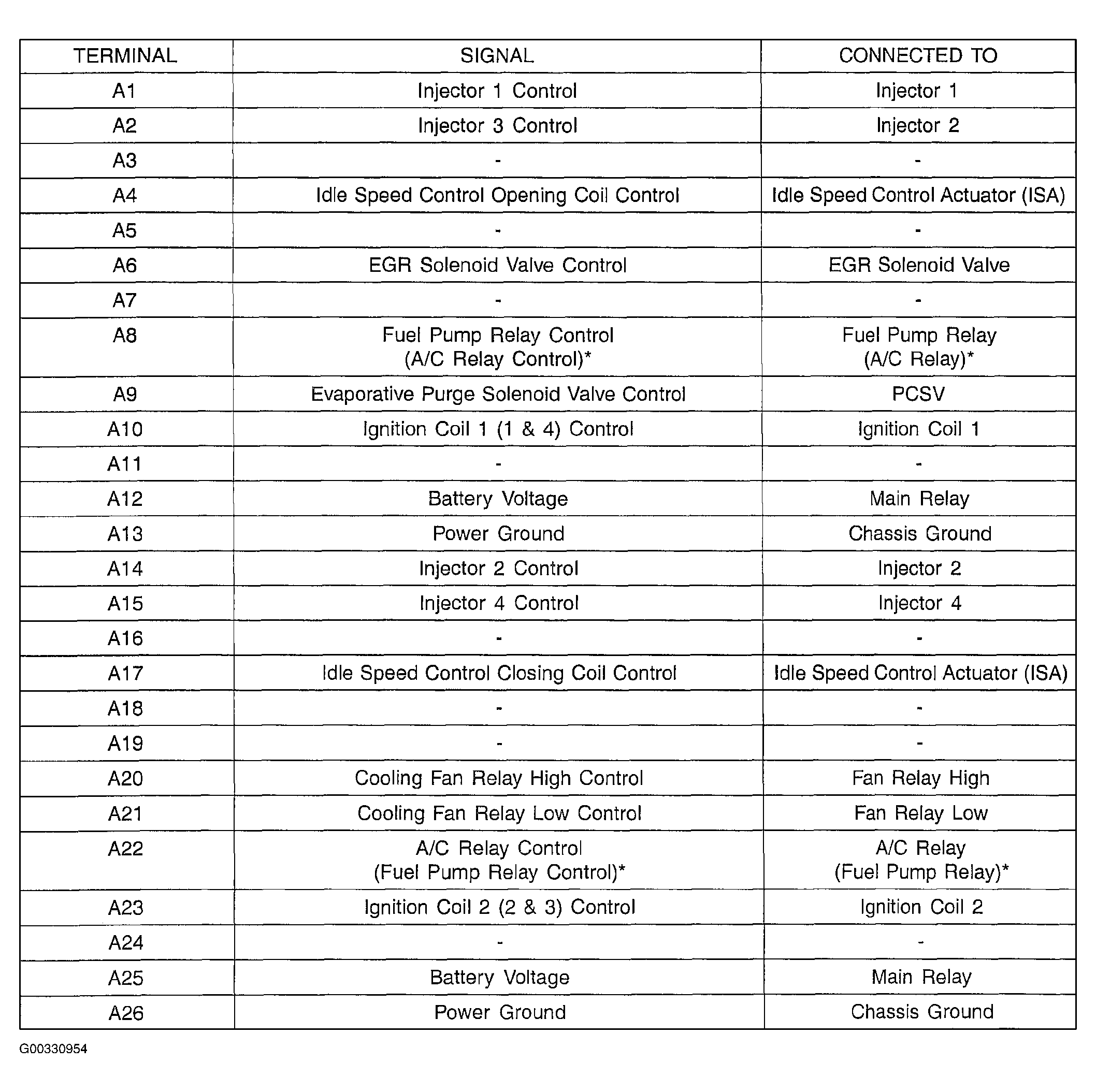

Fig 1: Identifying Terminal Layout Of Connector "A" - Vehicles Without Transaxle Control Unit (TCU) (Vehicles With Manual Transaxle)
G00330954Courtesy of KIA MOTORS AMERICA, INC.
