Harness Inspection Procedures

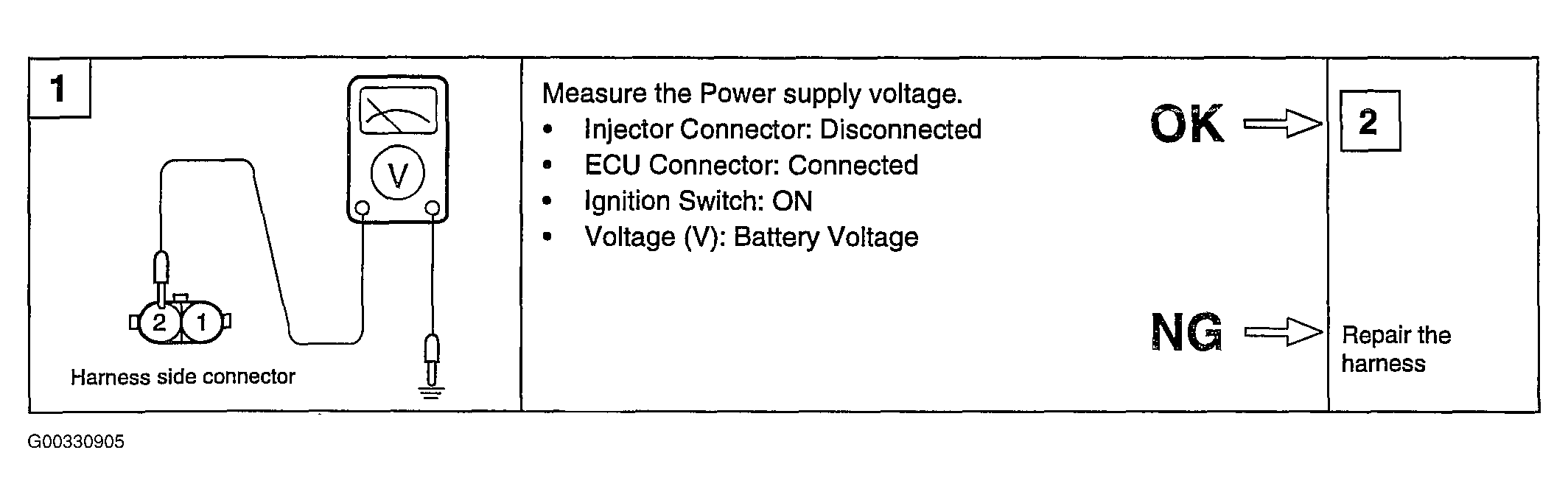

Fig 1: Identifying Fuel Injector Harness Inspection Procedures (1 Of 2)
G00330905Courtesy of KIA MOTORS AMERICA, INC.

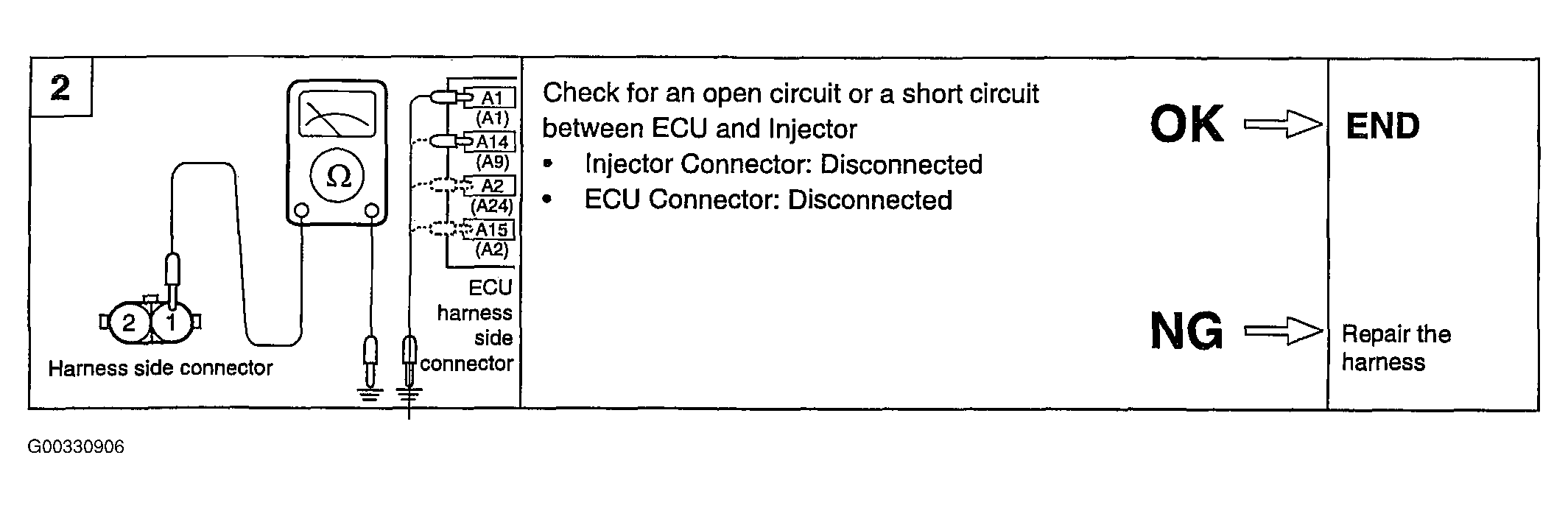

Fig 2: Identifying Fuel Injector Harness Inspection Procedures (2 Of 2)
G00330906Courtesy of KIA MOTORS AMERICA, INC.
